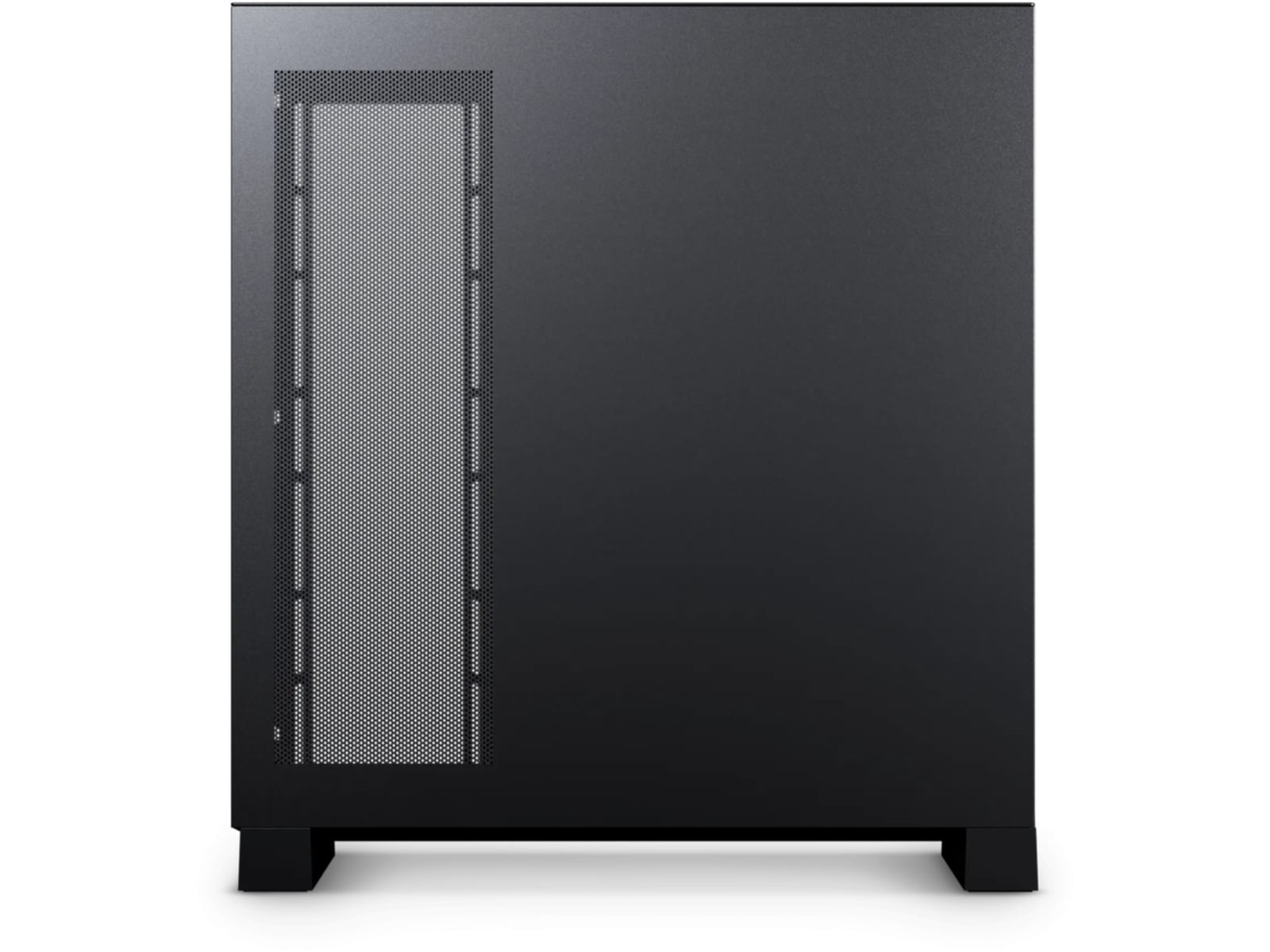

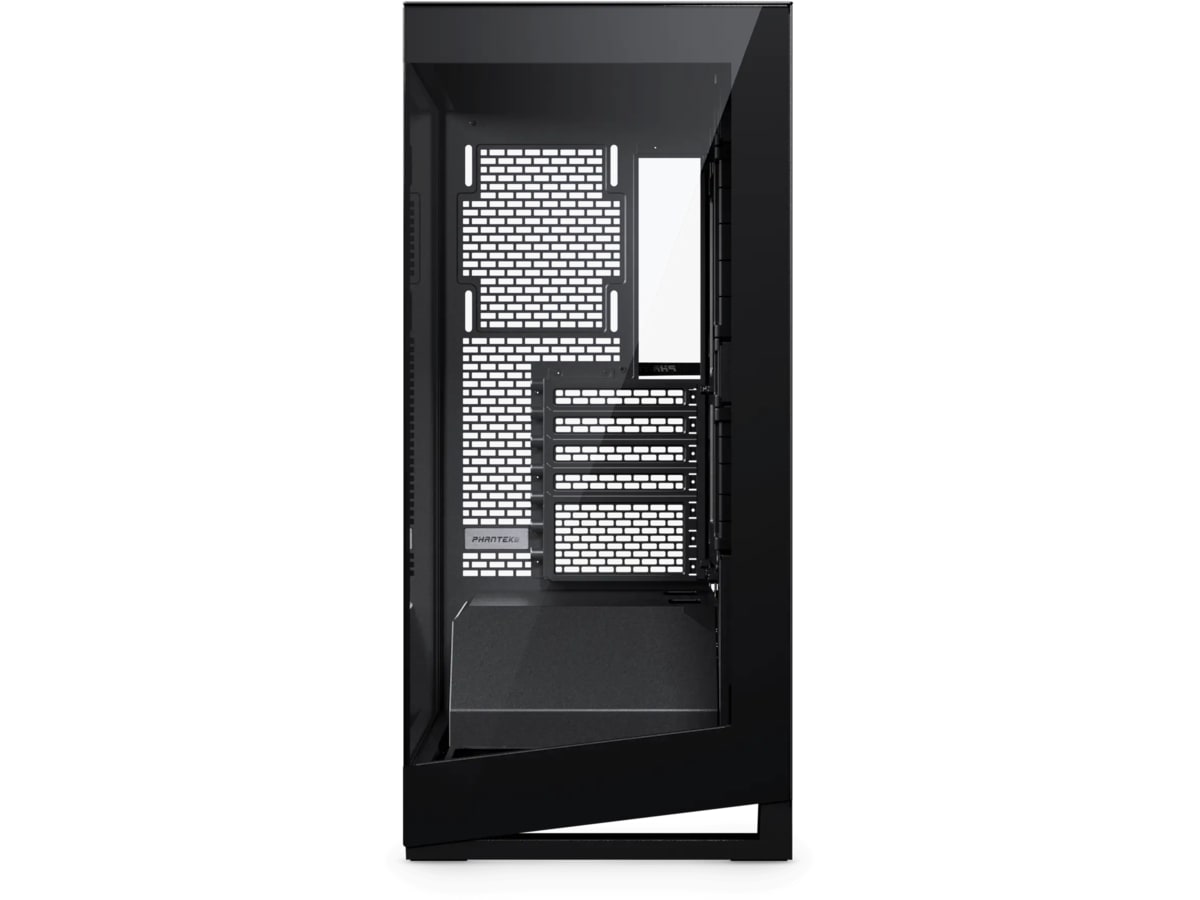

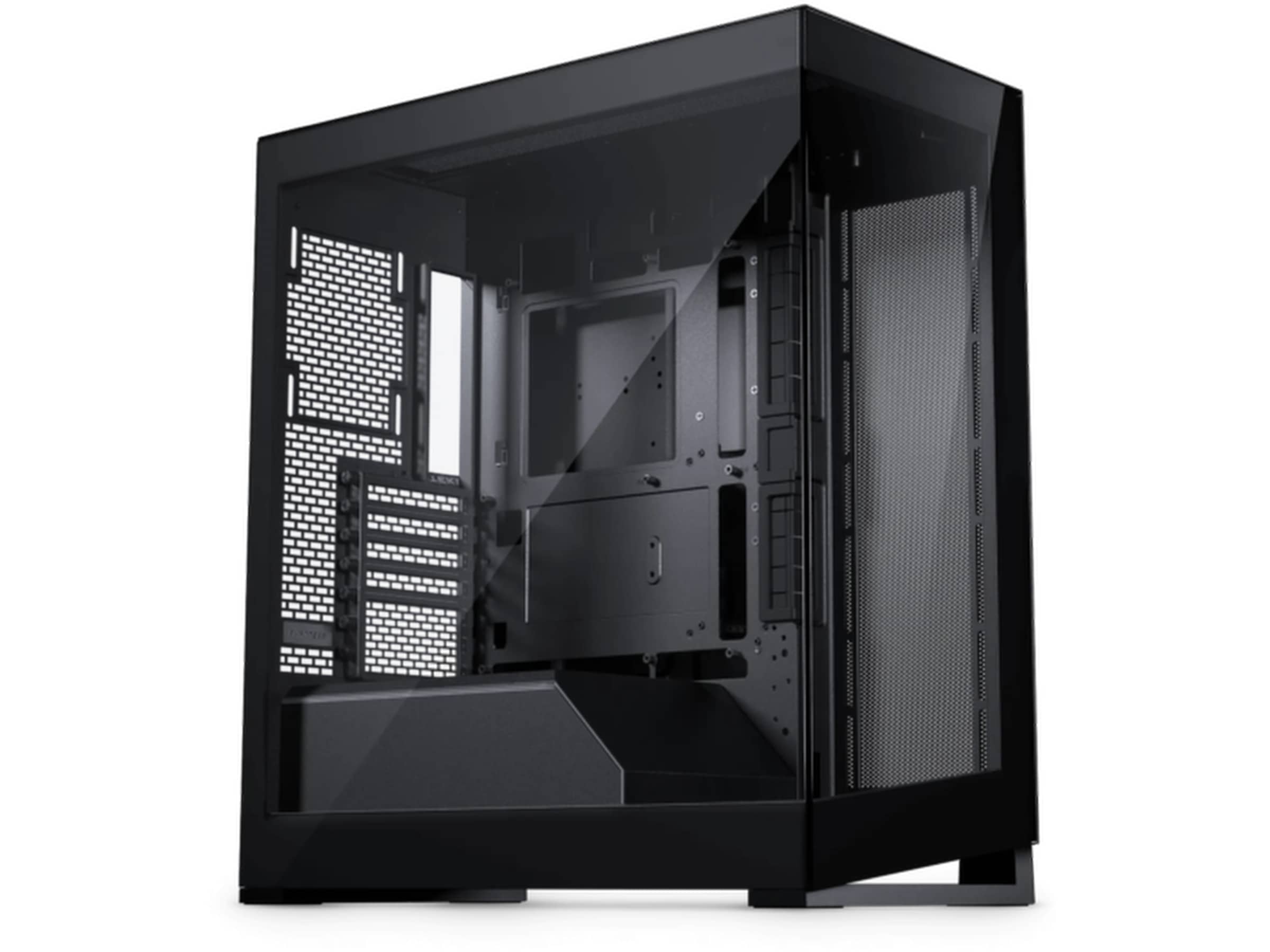

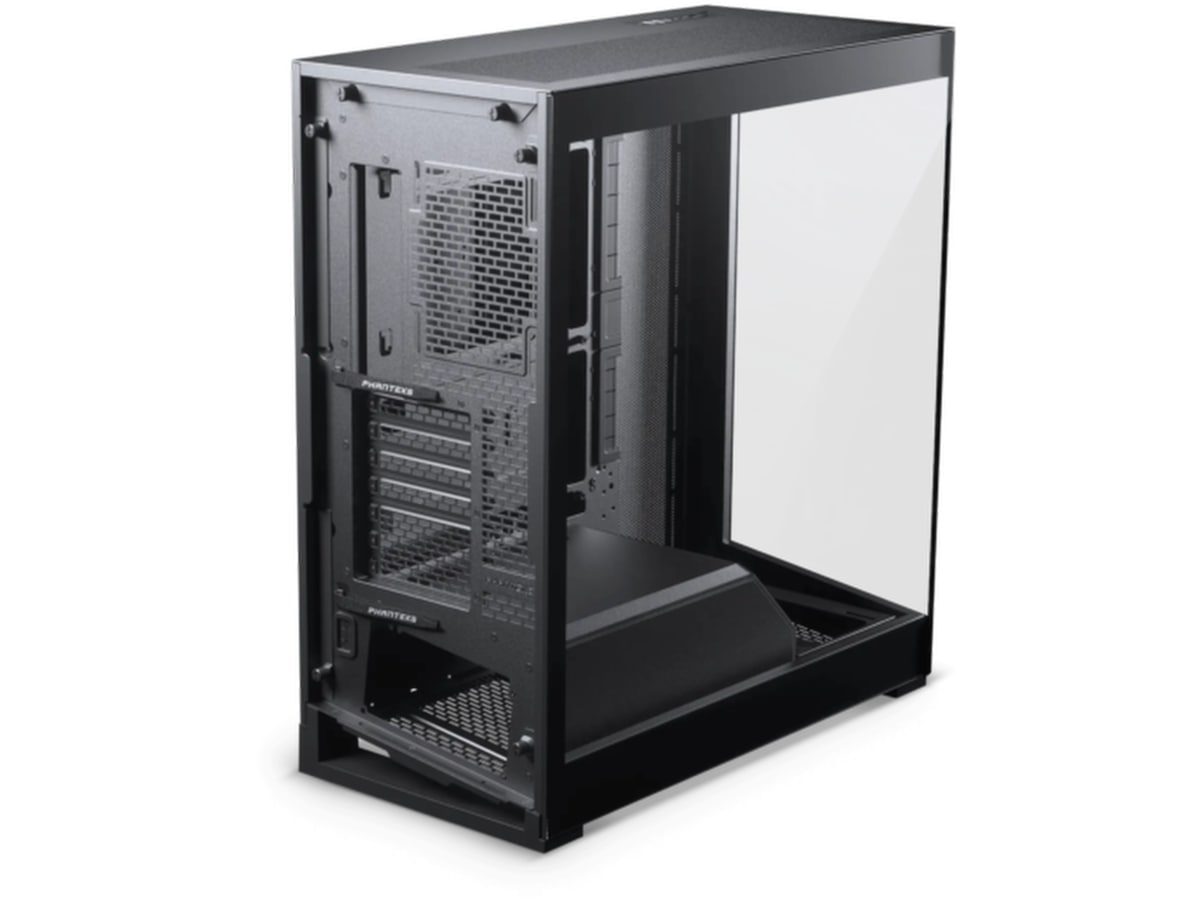

Flere bilder av Phanteks NV5 MKII Mid Tower (sort)
1 / 8

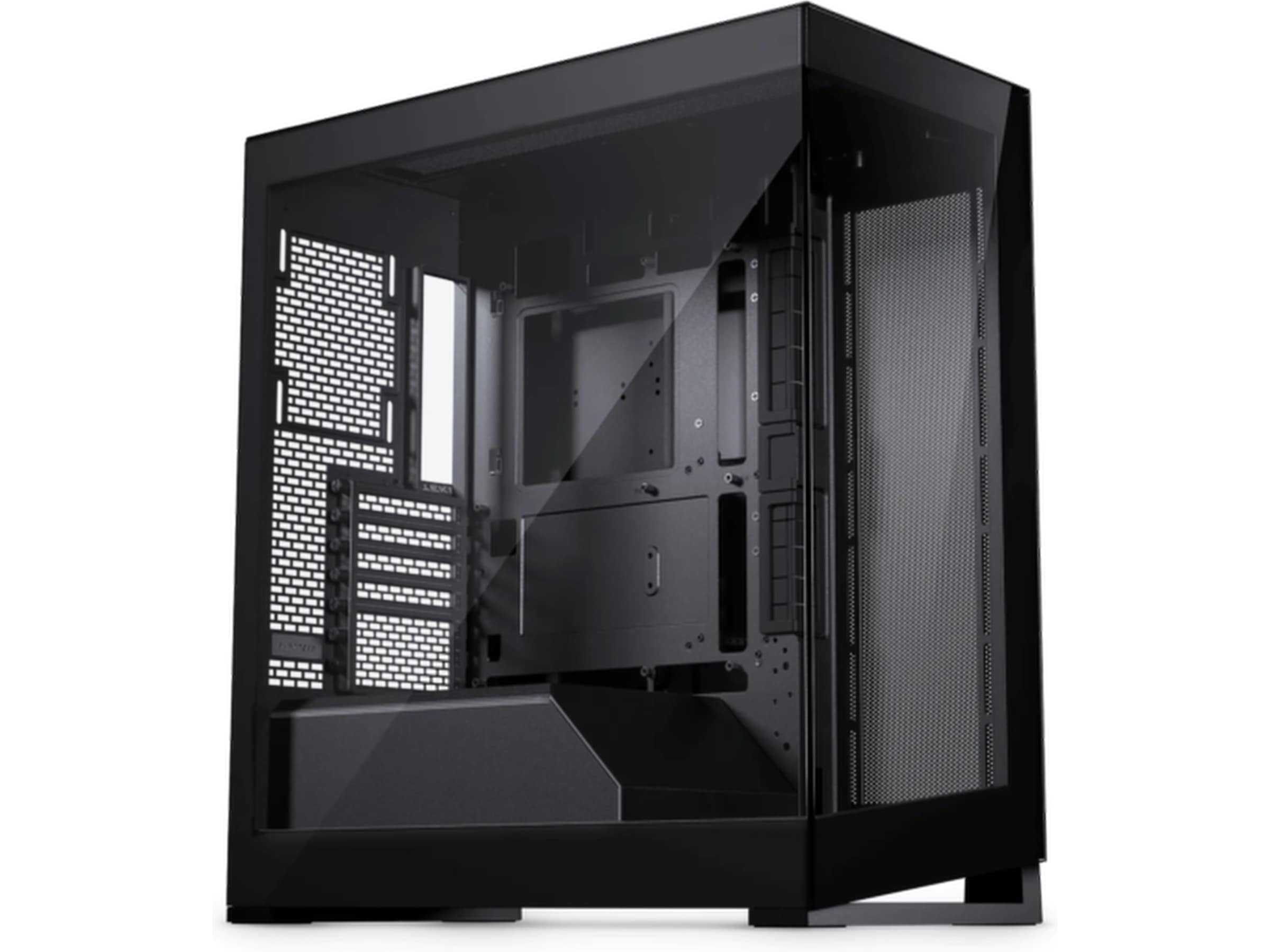

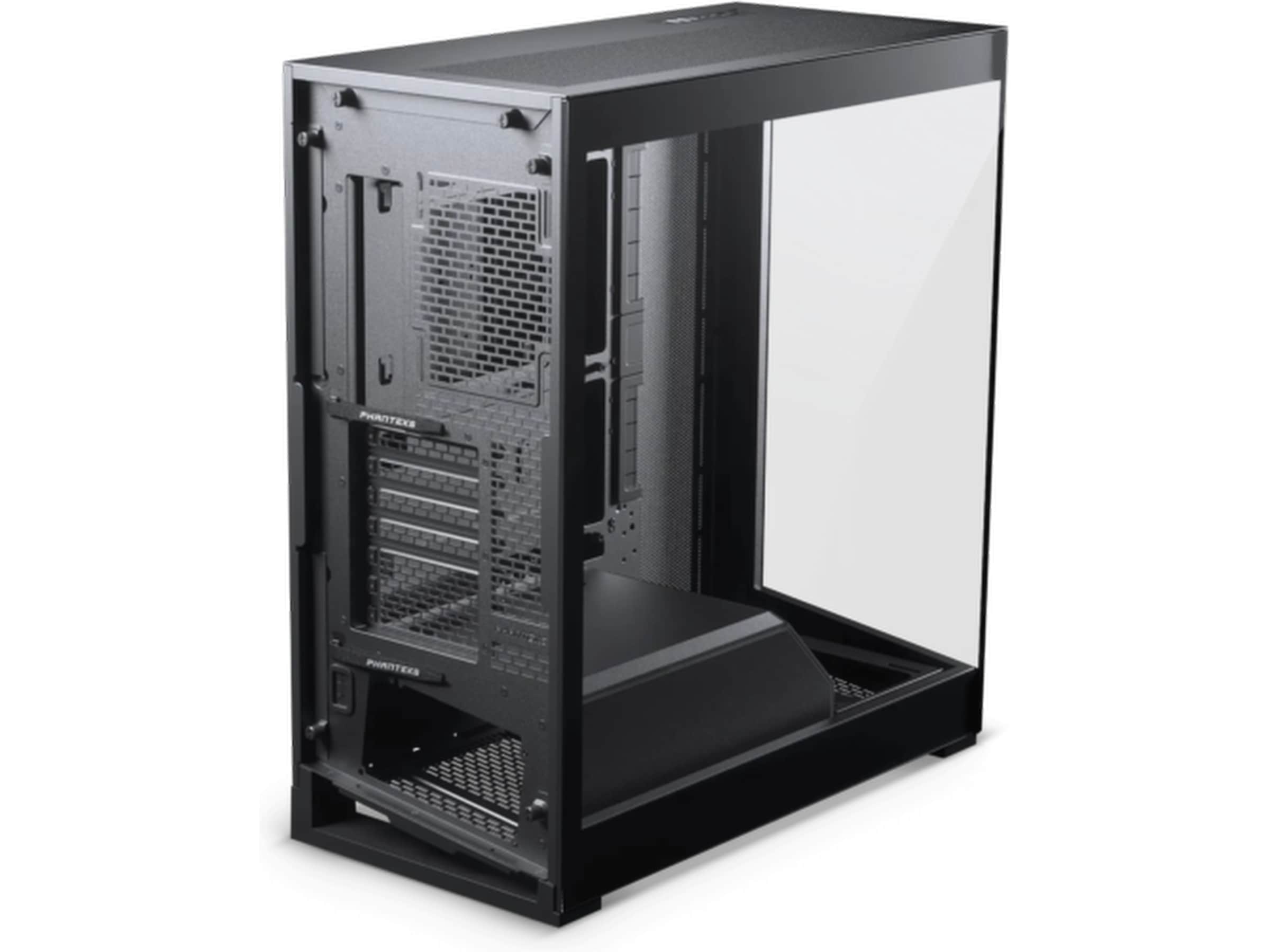

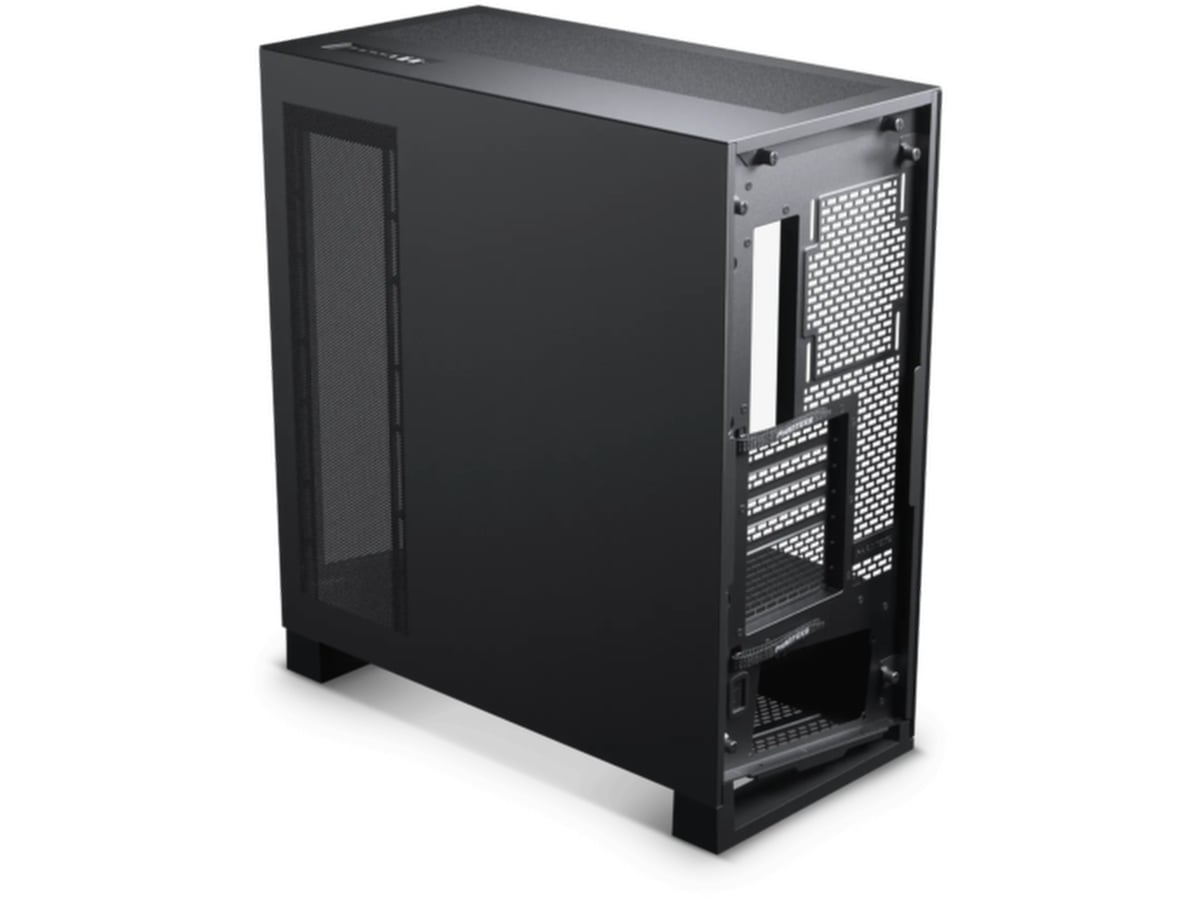

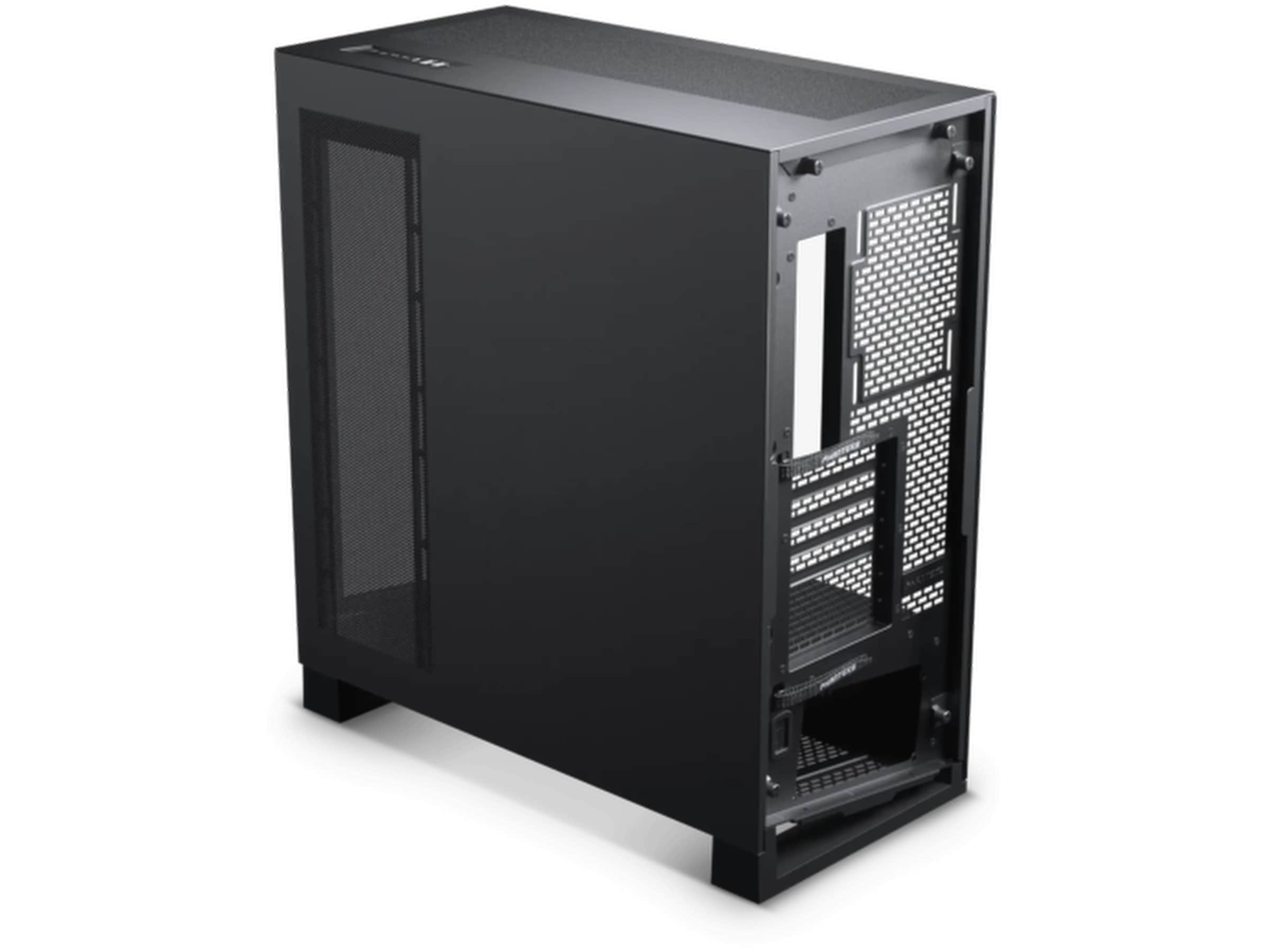

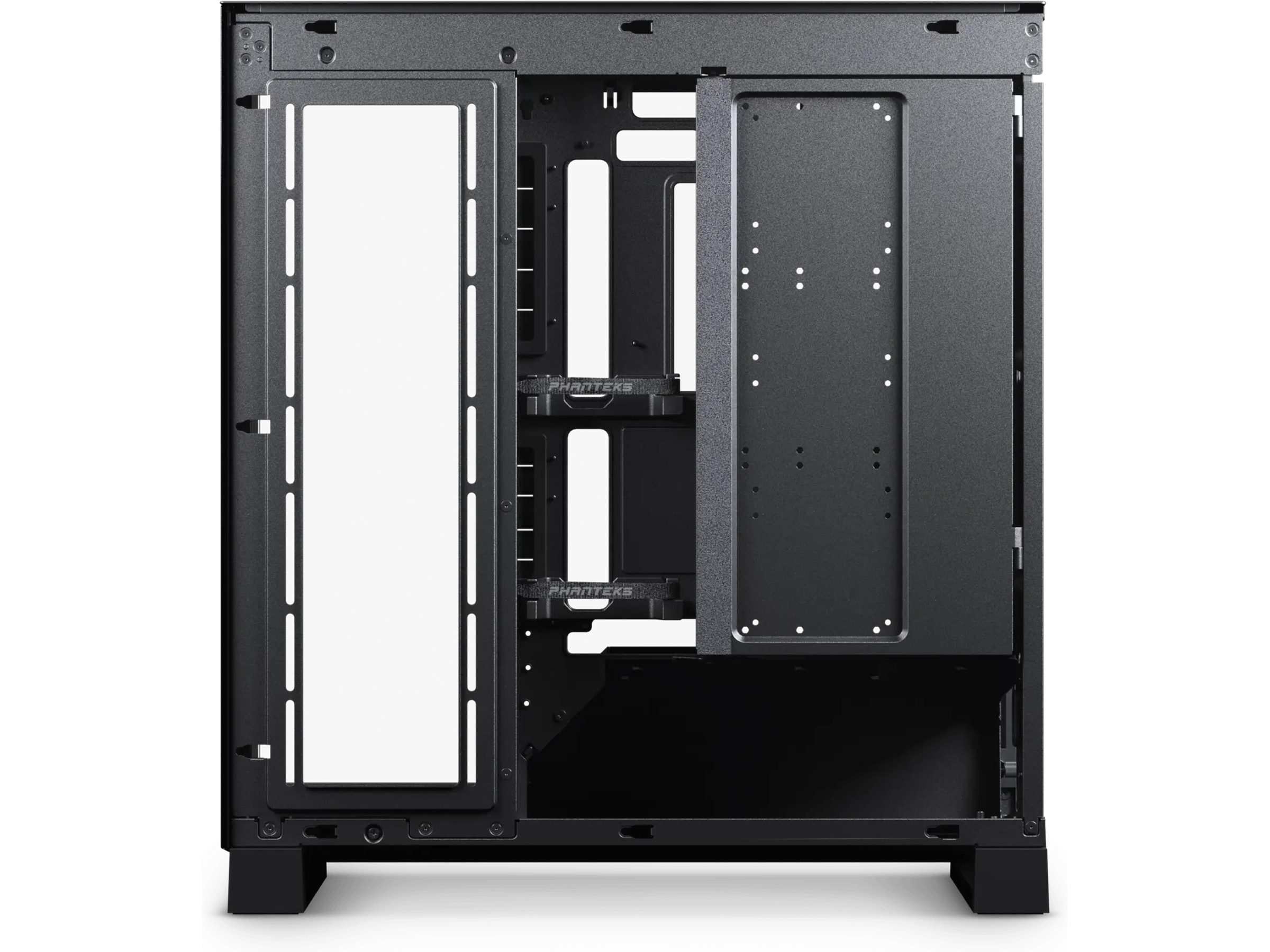

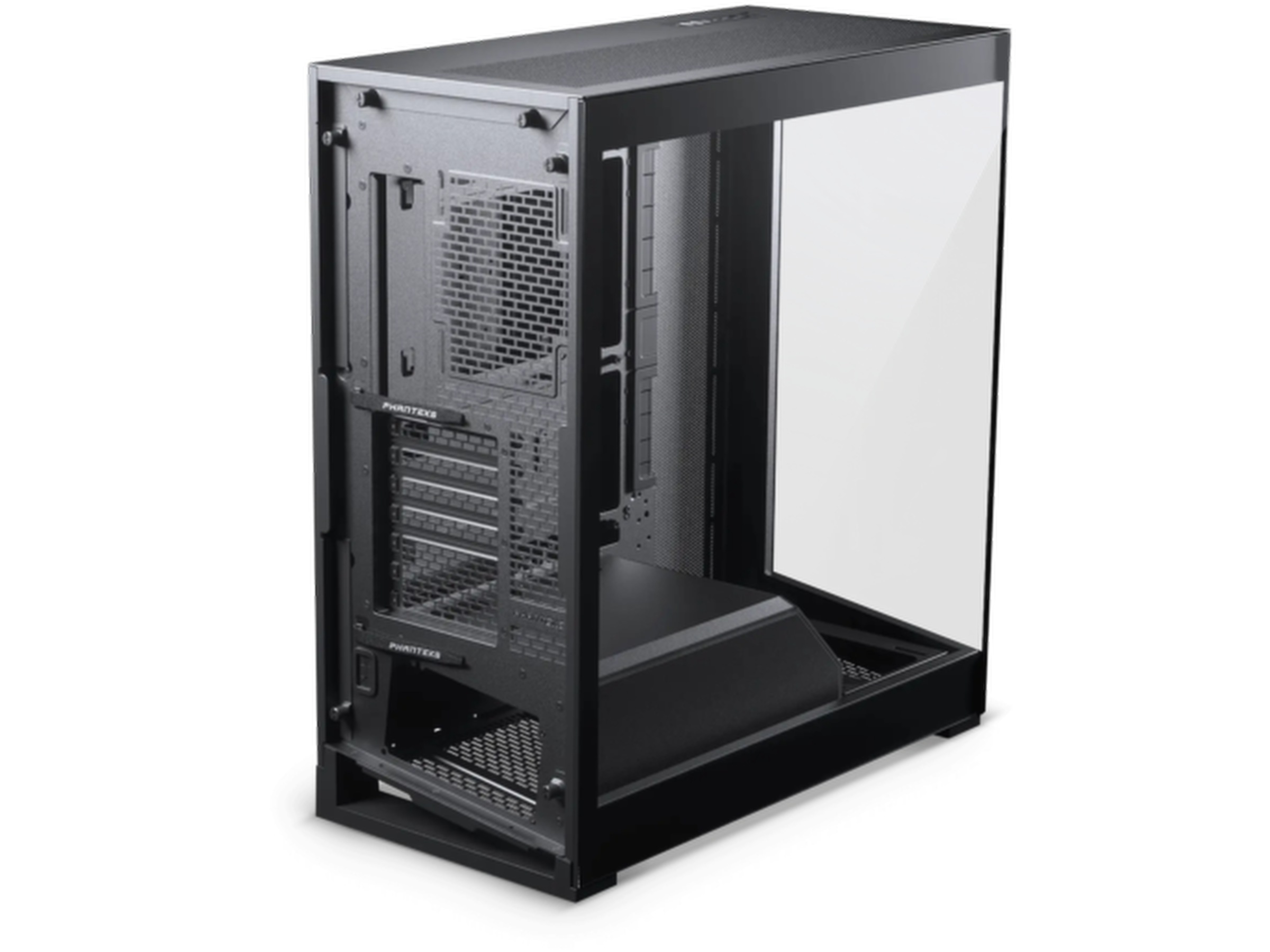

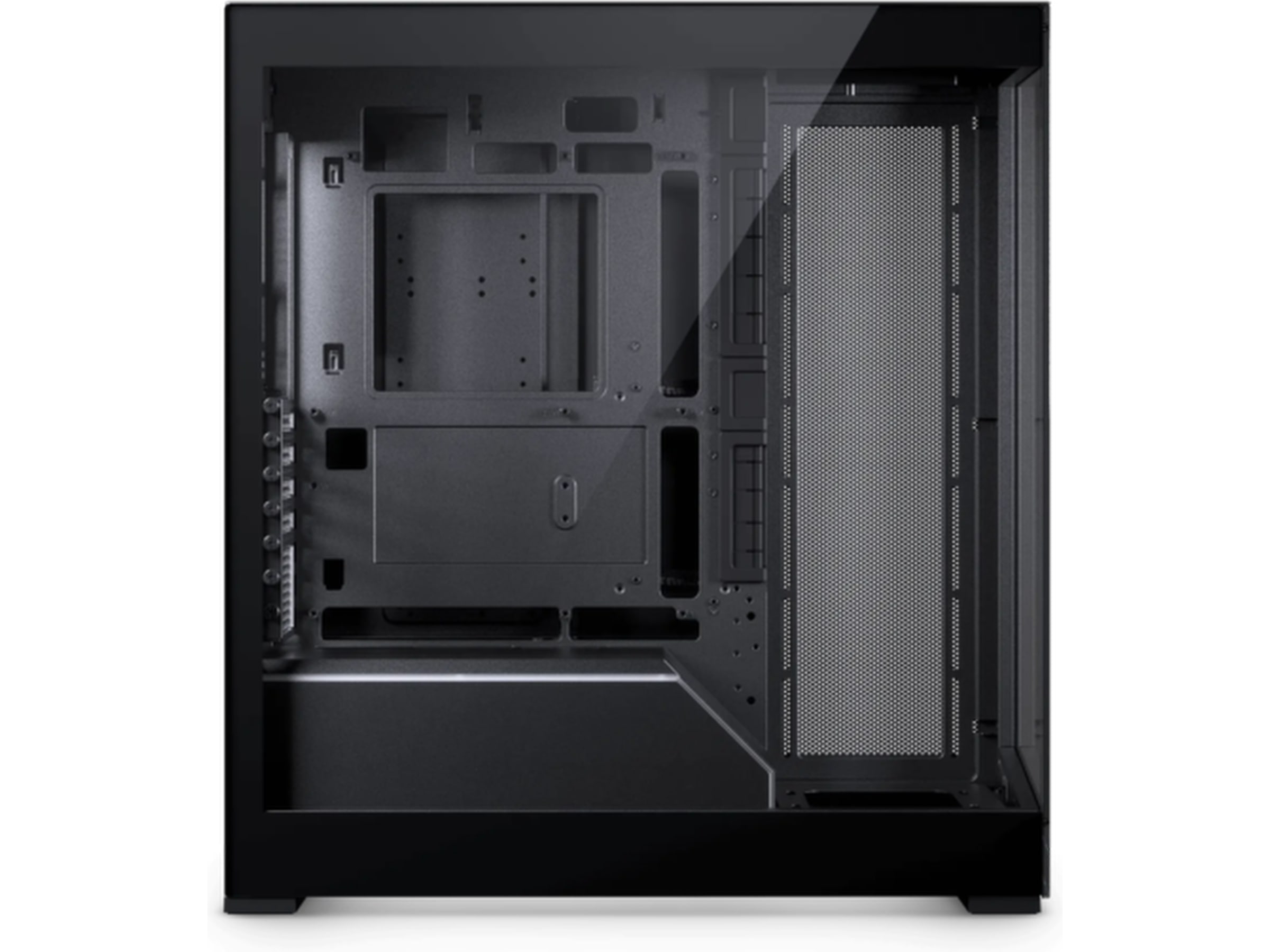

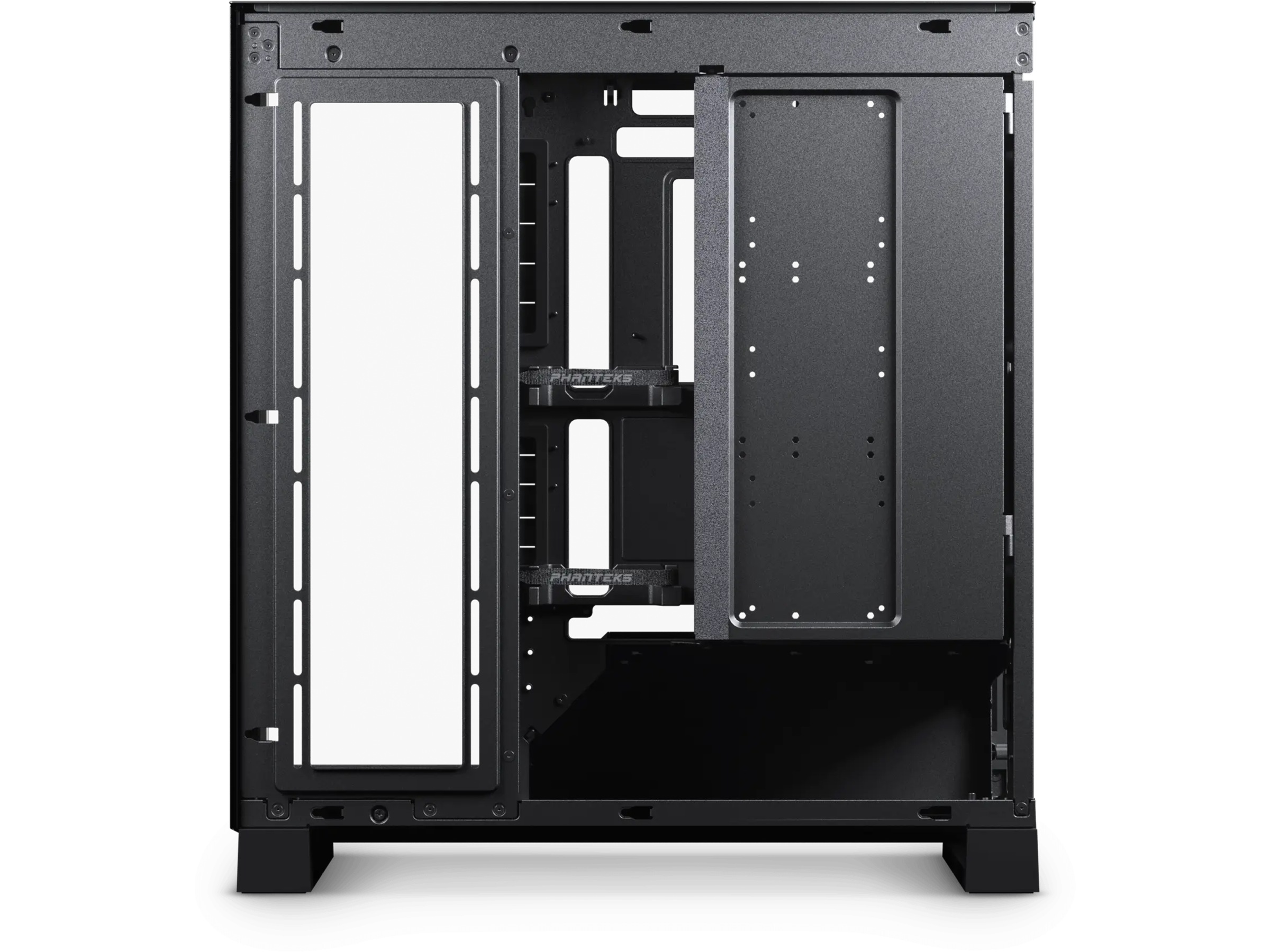

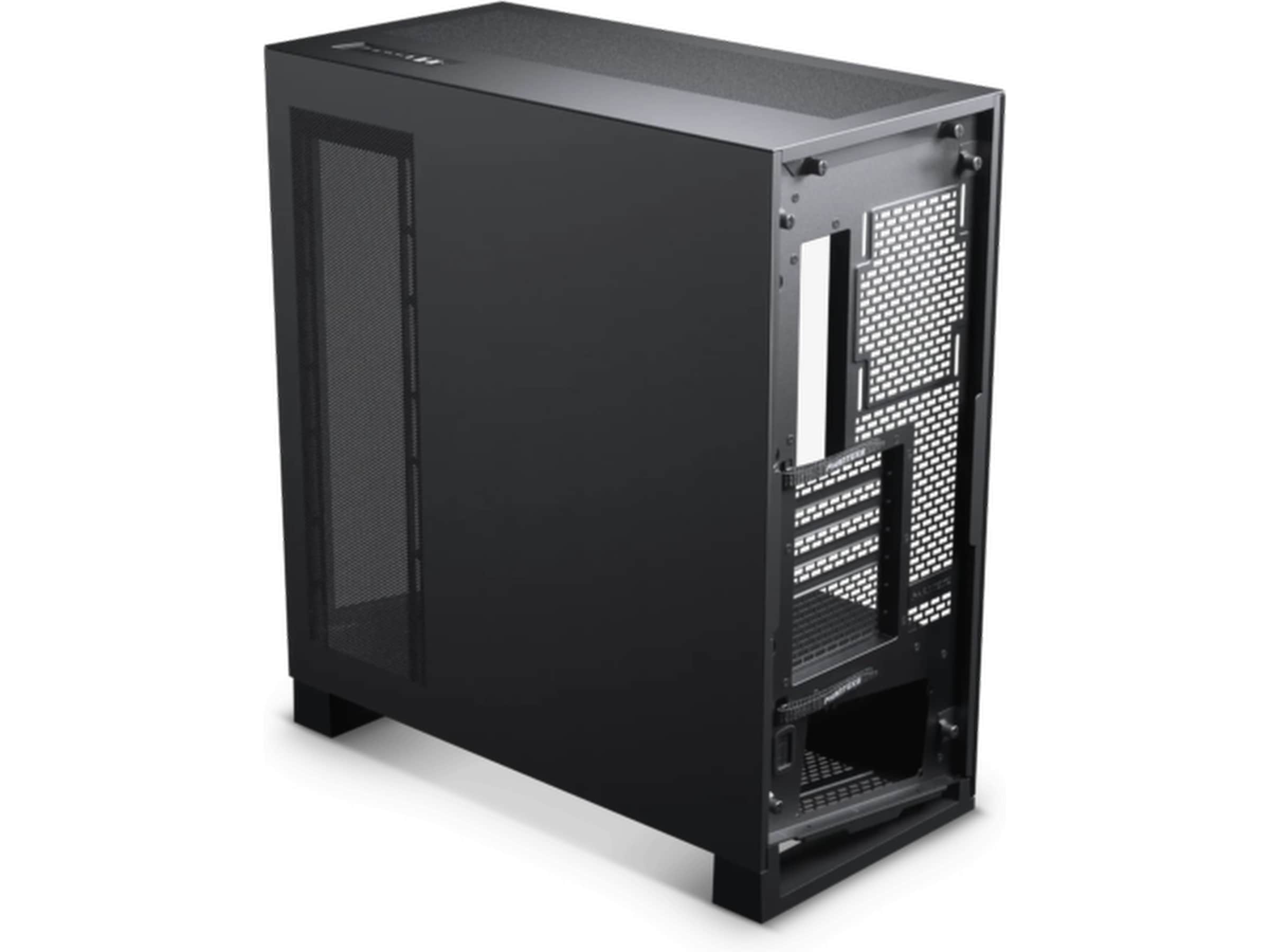

Phanteks NV5 MKII Mid Tower
Performance with a view
Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.
Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.

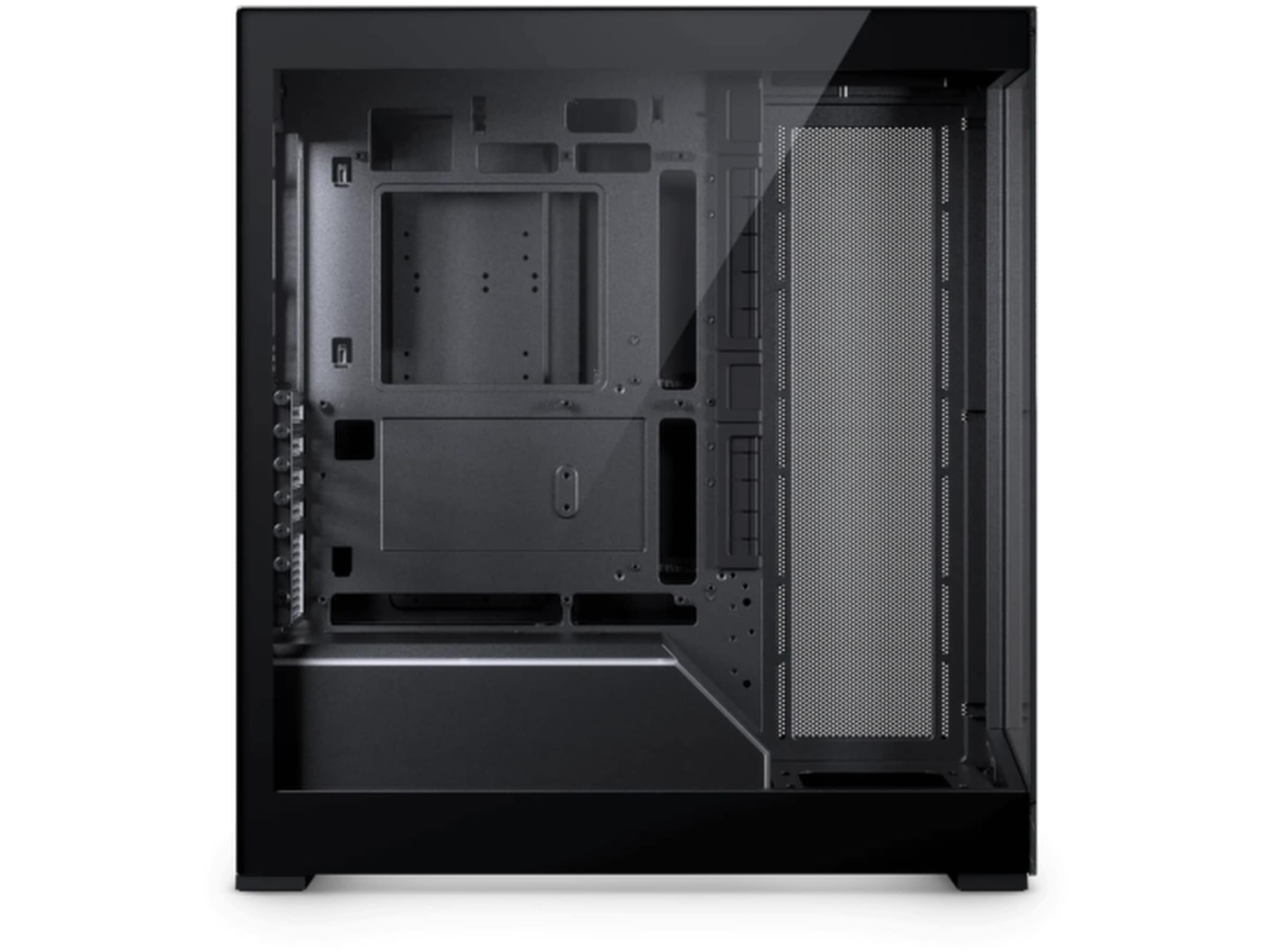

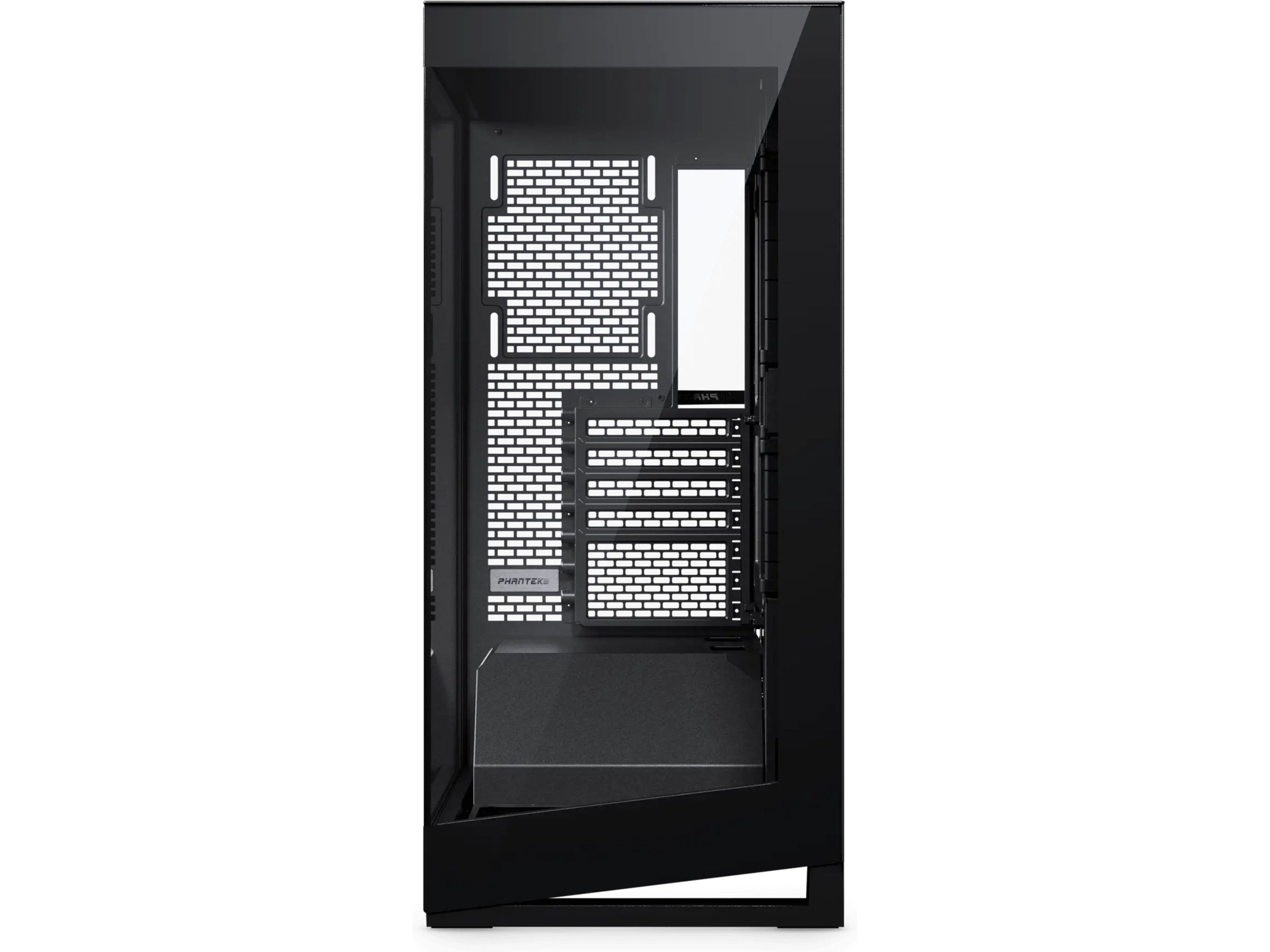

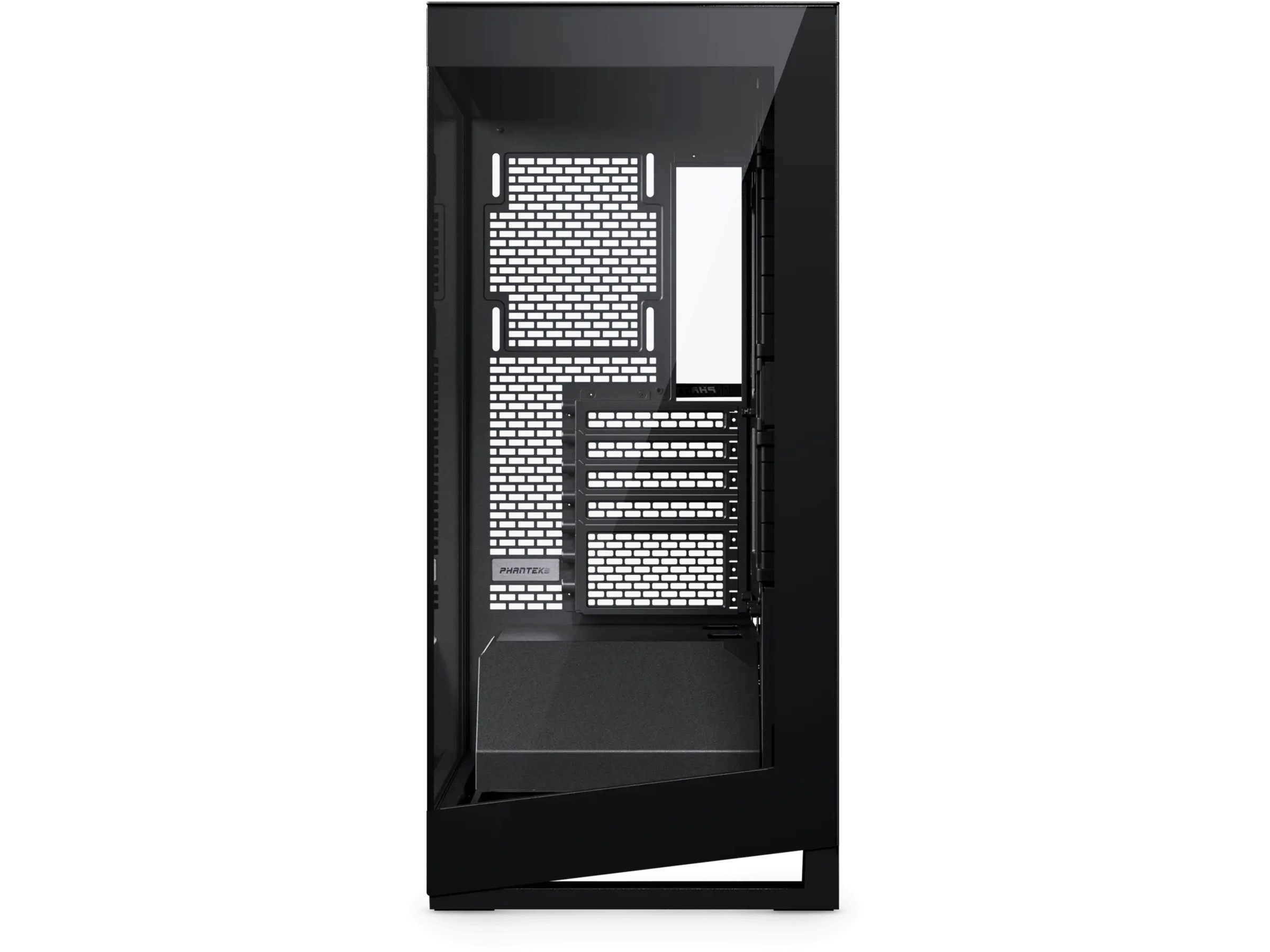

Perfect view of your system
Near-seamless glass panels for a perfect view of all your system components.

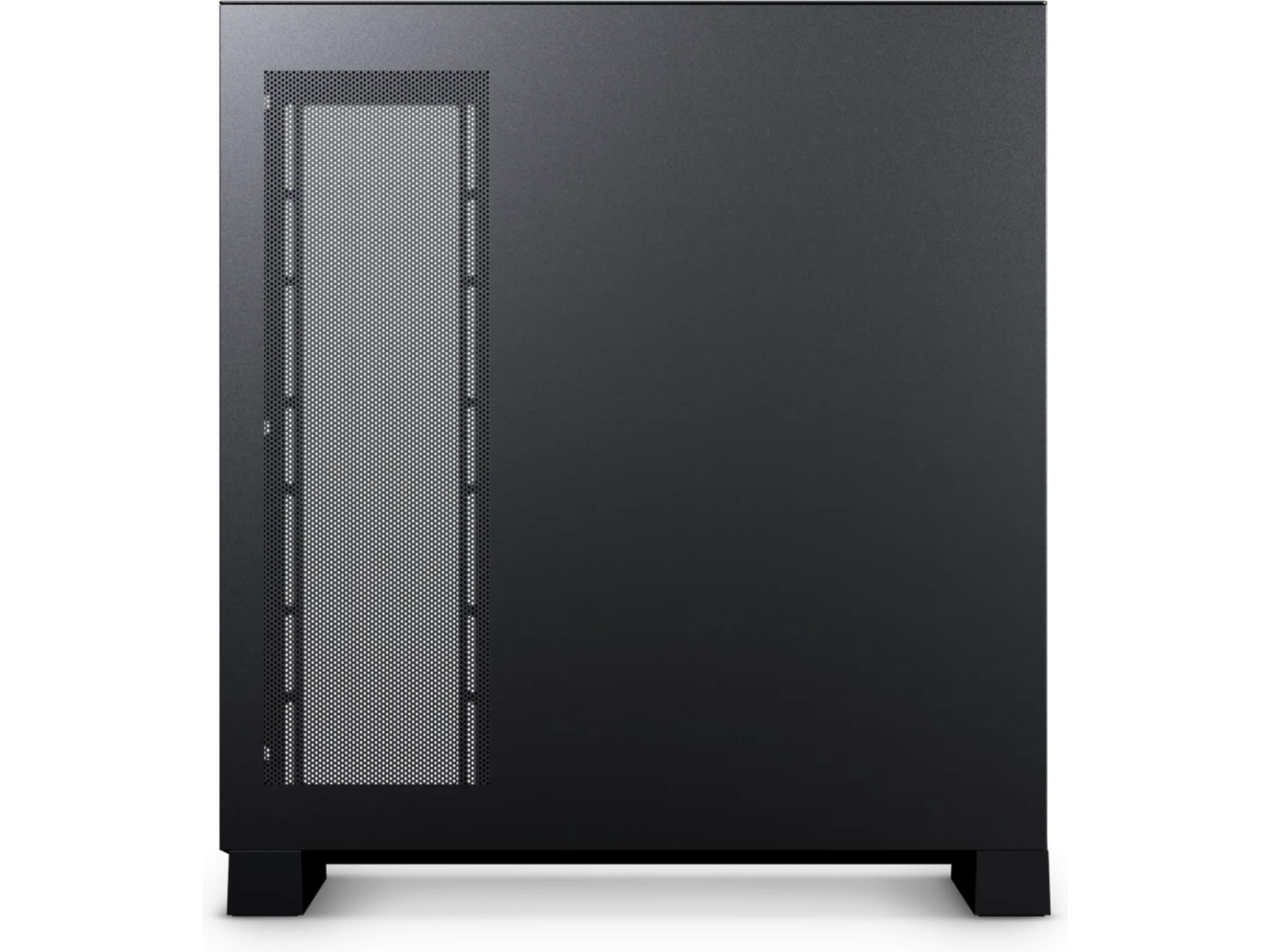

Top and side panel with Ultra-fine performance mesh for high airflow and good dust filtration.
A total of eight 120 mm fan positions for high-end cooling performance.
Dual 360 radiator support in the top and side.
Ready for modern GPUs
Increased chassis width to support wider GPUs and 12VHPWR cables.
GPU support bracket supports and holds the GPU securely to chassis and motherboard.
Dedicated GPU fan to provide direct airflow to the GPU from the bottom.
Removable PSU cover for easy access to power cables.
Build for the Future
UNLOCK THE ZERO-CABLE SETUP Mainboards with hidden connectors on the rear-side are fully supported by the NV chassis.
Support for MSI Project Zero mainboards.
Support for ASUS BTF mainboards.

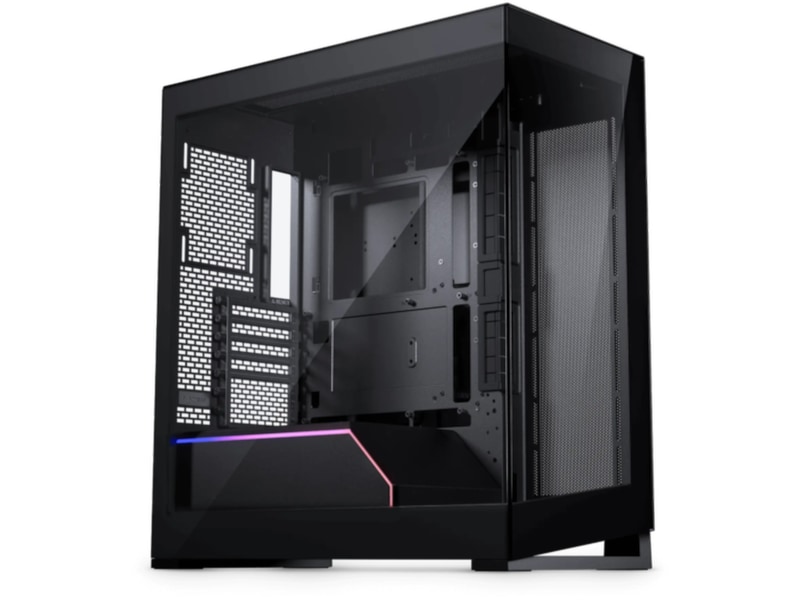

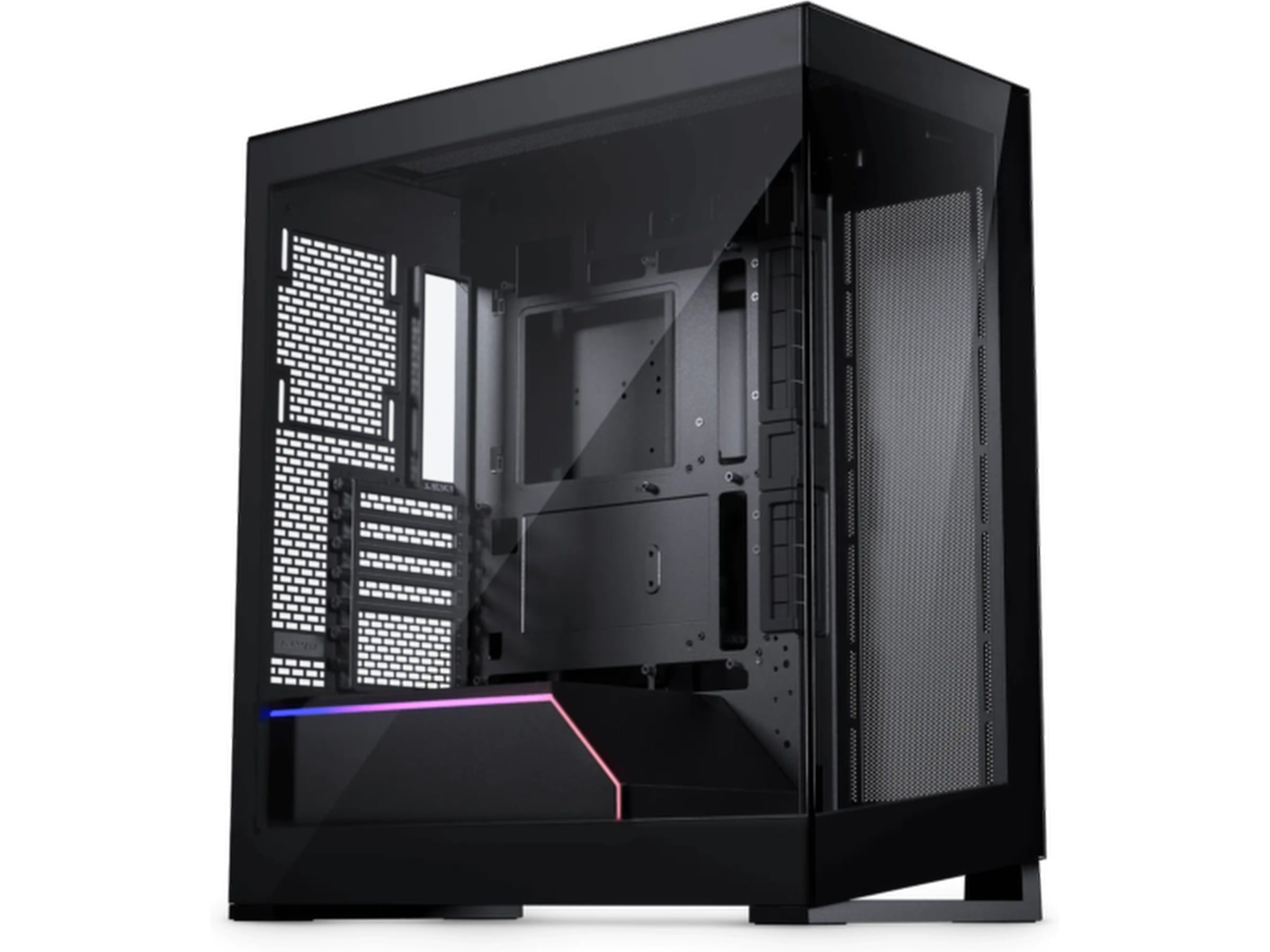

Integrated D-RGB lighting
Built-in Digital-RGB Controller.
Refined D-RGB lighting effects that just work, no software required.
Expand with more Digital-RGB lighting.
Optionally sync with motherboard and software.
Generelt
Produktserie
Phanteks NV series
Modell
NV5 MKII
Garanti (måneder)
24
EAN
886523303466
Chassis
Produktformfaktor
Tårn
Vindusidepanelmateriale
Herdet glass
Frontpanelkontakter
USB/lyd
Innebygde enheter
D-RGB LED-kontroller
Fabrikantformfaktor
Mid tower
Vindusidepanel
Ja
Maks. CPU-kjølerhøyde
180 mm
Maks. videokortlengde
440 mm
Maks. strømforsyningslengde
230 mm
Systemkabinettfunksjoner
Støvfilter for sidepanel, Design med høy luftstrøm, D-RGB-modusknapp, Nullstillingsknapp, Støtte for skjulte tilkoblings-morsbord, D-RGB-fargeknapp, Toppanelsstøvfilter, Vertikal grafikkortorientering
Hovedkort
Produktformfaktor
Utvidet ATX (E-ATX)
Støttede hovedbrett
Extended ATX, ATX, Mini-ITX, microATX
Utvidelsesspor
Utvidelsesspor
7
Strømenhet
Type
Ingen strømforsyning
Spesifikasjonssamsvar
ATX
Diverse
Farge
Atlasksort
Fargekategori
Svart
Produktmateriale
Stål
Inkludert tilbehør
Stand-Off fjerningsverktøy, Vingeskruer, 4 PSU-skruer, 22 MB/SSD-skruer, Avstandsstykker for grunnkort, GPU-støttebrakett, 6 x glidelåslisser, 12 HDD + boksskruer
Størrelser og vekt
Bredde
23.9 cm
Dybde
47.7 cm
Høyde
52.8 cm
Vekt
11.28 kg
Størrelser og vekt (forsendelse)
Fraktvekt
13.97 kg
Kjølesystem
Kjølesystem
Bak: 120 mm viftemontering x 1 / støtte for opptil 120 mm-radiator, Topp: 120 mm viftemontering x 3 / støtte for inntil 360 mm-radiator, Bunn: 120 mm viftemontering x 1, Side: 120 mm viftemontering x 3 / støtte for inntil 360 mm-radiator
Utvidelsesbrønner
Ekspansjonsbrønner
3 (total) / 3 (ledig) x intern - 3.5", 4 (total) / 4 (ledig) x intern - 2.5"
Grensesnitt medfølger
Grensesnitt
1 x USB-C 3.2 Gen 2, 1 x hodetelefon/mikrofon - minijakk, 2 x USB 3.0
