AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Generelt
Produktserie
ASUS
Modell
PRO WS WRX90E-SAGE SE
Garanti (måneder)
36
EAN
4711387441145
Prosessor
Prosessornummer
AST2600
Hovedkort
Støttet RAM-integritetskontroll
ECC
Merknader om kompatible prosessorer
Støtter Ryzen Threadripper PRO 7000WX Series/ 7000 Series
RAM-spor
8 DIMM-spor
Støttet RAM (registrert eller bufret)
Registrert
Prosessorsokkel
Socket sTR5
Støttet RAM-teknologi
DDR5 SDRAM
Brikkesett type
AMD WRX90
Produktformfaktor
SSI EEB
Strømkontakter
24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter, 2 x 8-stifts PCI Express-strømkontakt, 2 x 8-stifts PCI Express til CPU-strømkontakt
Hovedkortegenskaper
BIOS-egenskaper
UEFI BIOS
Maskinvarefunksjoner
M.2 kjølebakplate, M.2-kjølelegeme, Overspenningsvern, Formontert I/O-skjerm, M.2 Q-Latch, Overstrømsvern, Q-Connector, Q-Slot, Bakplate av stål, ASUS Stainless Steel Back I/O, ASUS ProCool II, Q-DIMM, ASUS EZ DIY, ESD Guards, Q-Code, Q-LED, CrashFree BIOS 3, ASUS 5X Protection III, Clear CMOS Button, ASUS Q-Design, 32+3+3+3 Phase Power Design, BIOS FlashBack-knapp, LANGuard, ASUS DIGI+ VRM, ASUS SafeDIMM, PCIe Slot Q-Release, VRM-kjøle med vifte, BIOS FlashBack LED, ASUS SafeSlot
Sov/Våkne
Våkne ved PME, Wake on LAN (WOL)
Grensesnitt
Lagerporter
4 x SATA-600 (RAID), 4 x M.2, 2 x SlimSAS
USB / FireWire-portskonfigurasjon (headere)
1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 2 x USB 2.0
1 x PCIe 5.0 x16 (x8-modus), 6 x PCIe 5.0 x16, 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor), 1 x CPU, 2 x M.2 socket (2242/2260/2280 M.2 Key M-spor), 8 x 288-pins DIMM
Lagergrensesnitt
Lagergrensesnitt
PCIe 5.0 -kontakter: 4 x M.2, PCIe 4.0 -kontakter: 2 x SlimSAS, SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Grensesnitt medfølger
Grensesnitt
2 x LAN (10Gigabit Ethernet), 1 x mikrofon - minijakk, 1 x USB 2.0, 1 x lydutlinje - minijakk, 1 x LAN (Gigabit Ethernet), 2 x Mini DisplayPort, 2 x USB4, 6 x USB 3.2 Gen 2, 1 x VGA
Interne overflater
Interne overflater
4 x USB 2.0 - header, 1 x lyd - header, 1 x SPI - header, 2 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 2x2 - header
Kabeldetaljer

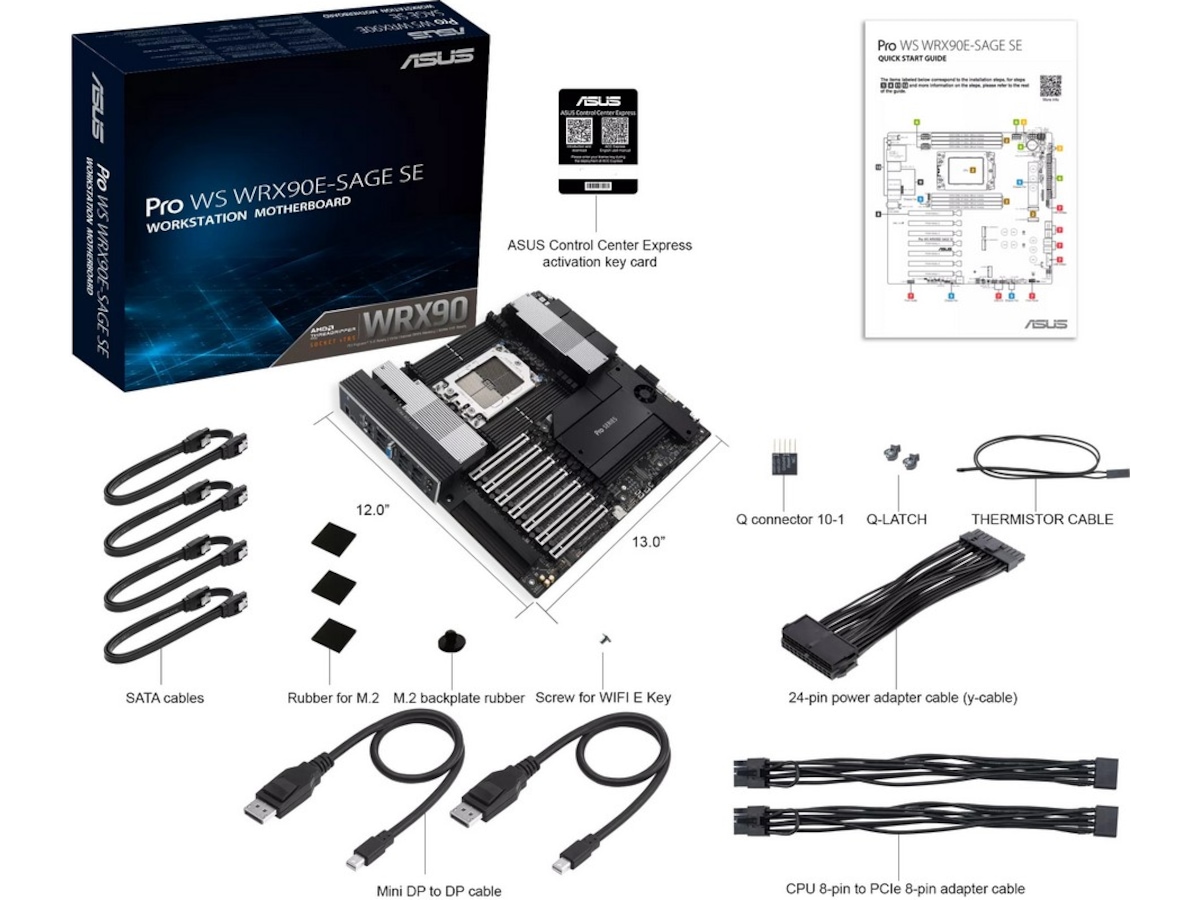

Medfølgende kabler
1 x 24-stifts strømkabel (Y-kabel), 2x 8-stifts PCIe til enkelt 8-stifts CPU-omformer, 4 x Seriell ATA-kabel, 2 x Mini DisplayPort-kabel
Programvare
Inkludert programvare
ASUS Fan Xpert 4, WinRAR (40 days trial), ASUS CPU-Z, ASUS Control Center Express, Armoury Crate, Adobe Creative Cloud (gratis prøveversjon), Norton 360 Deluxe (60 dagers prøveversjon)
(0)0
Skriv anmeldelse

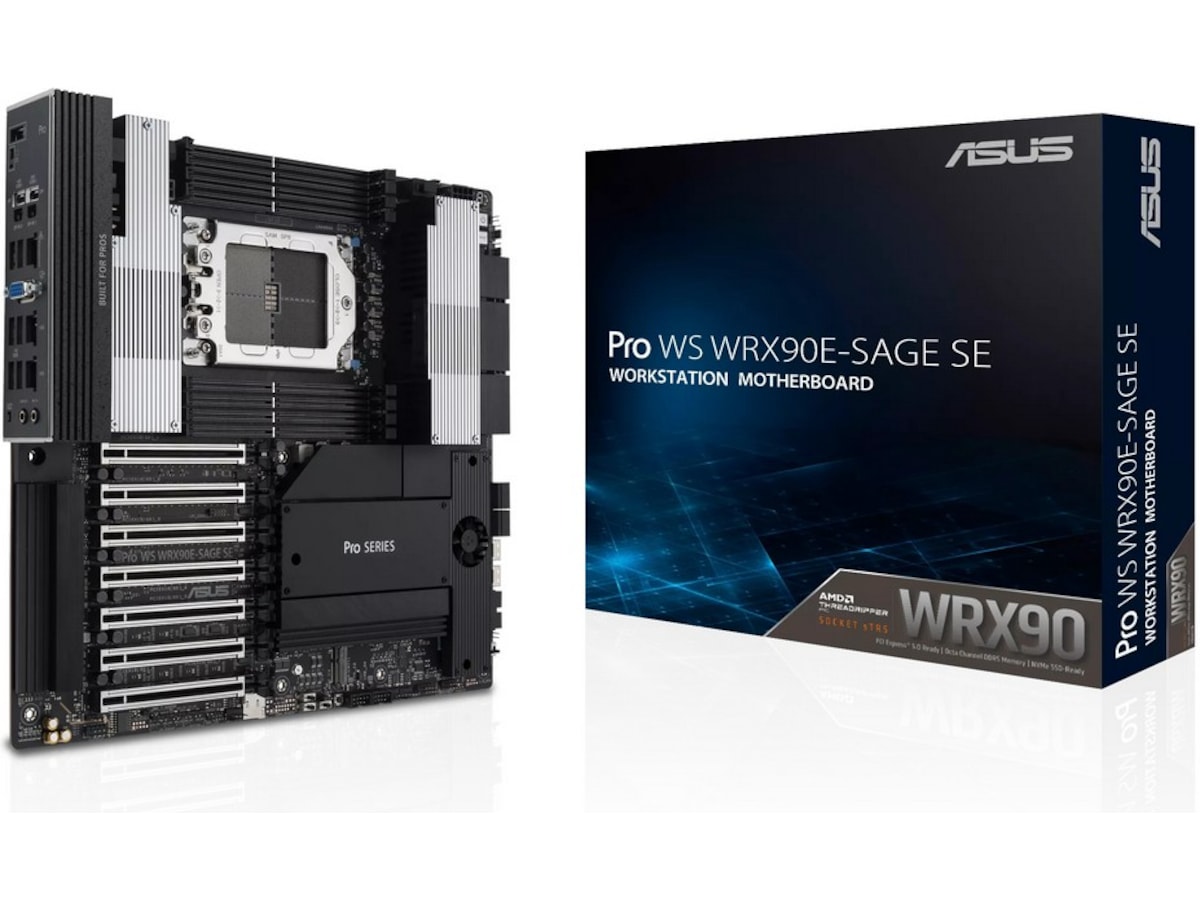

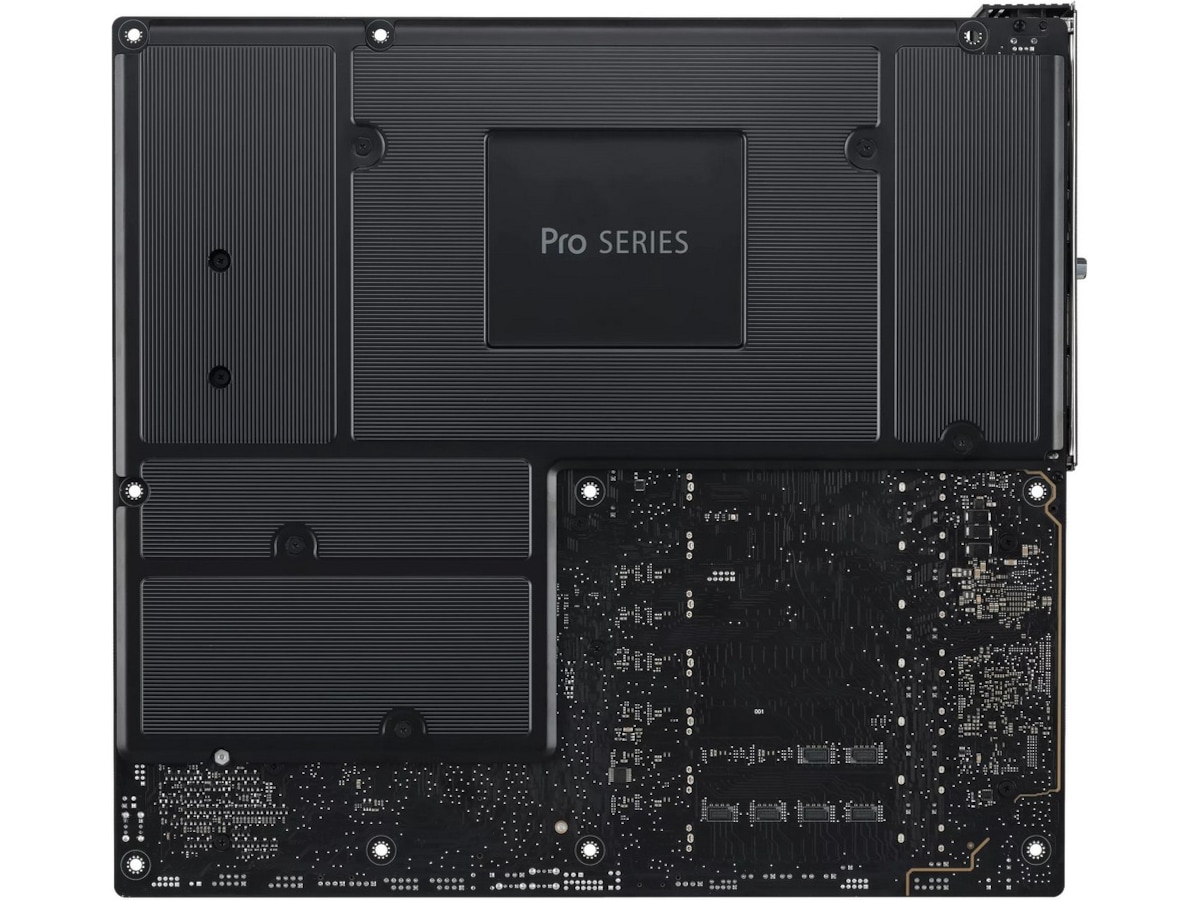

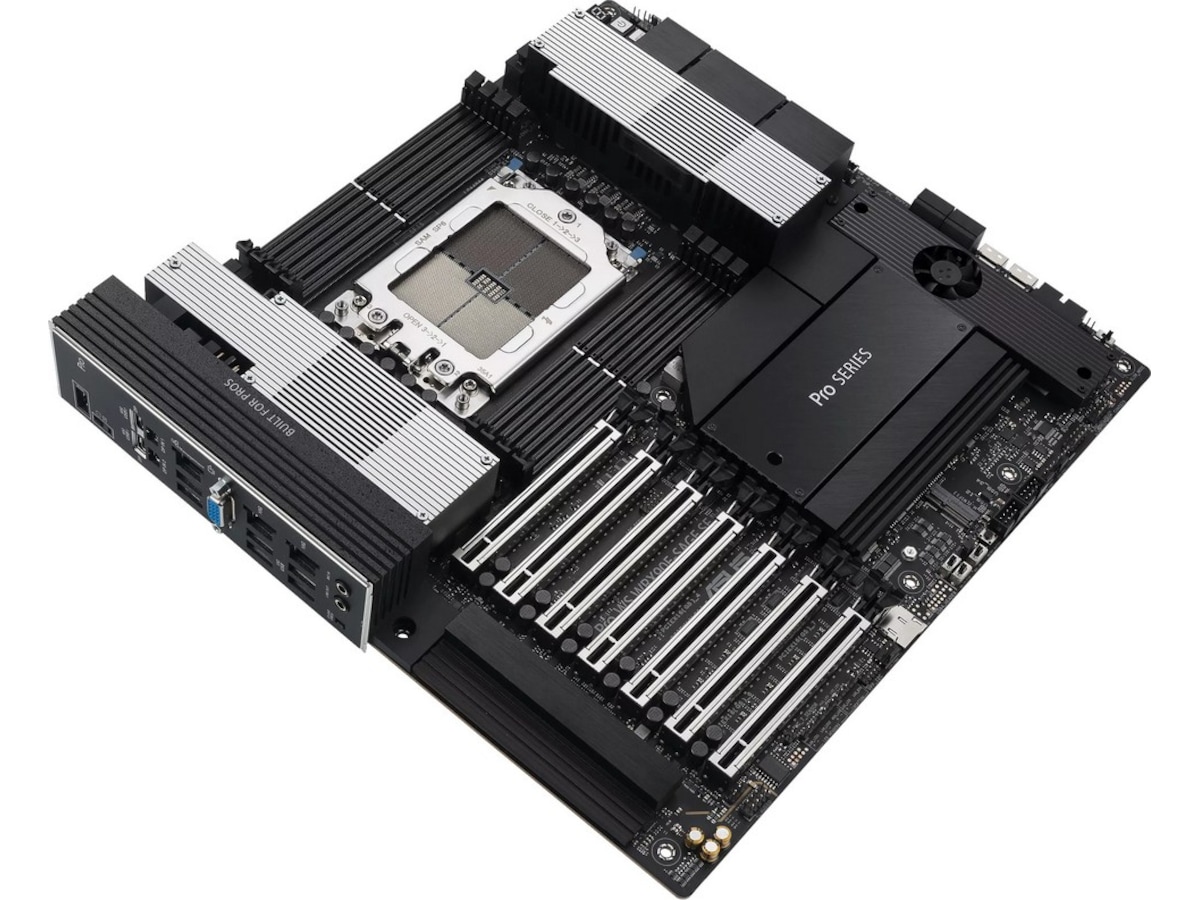

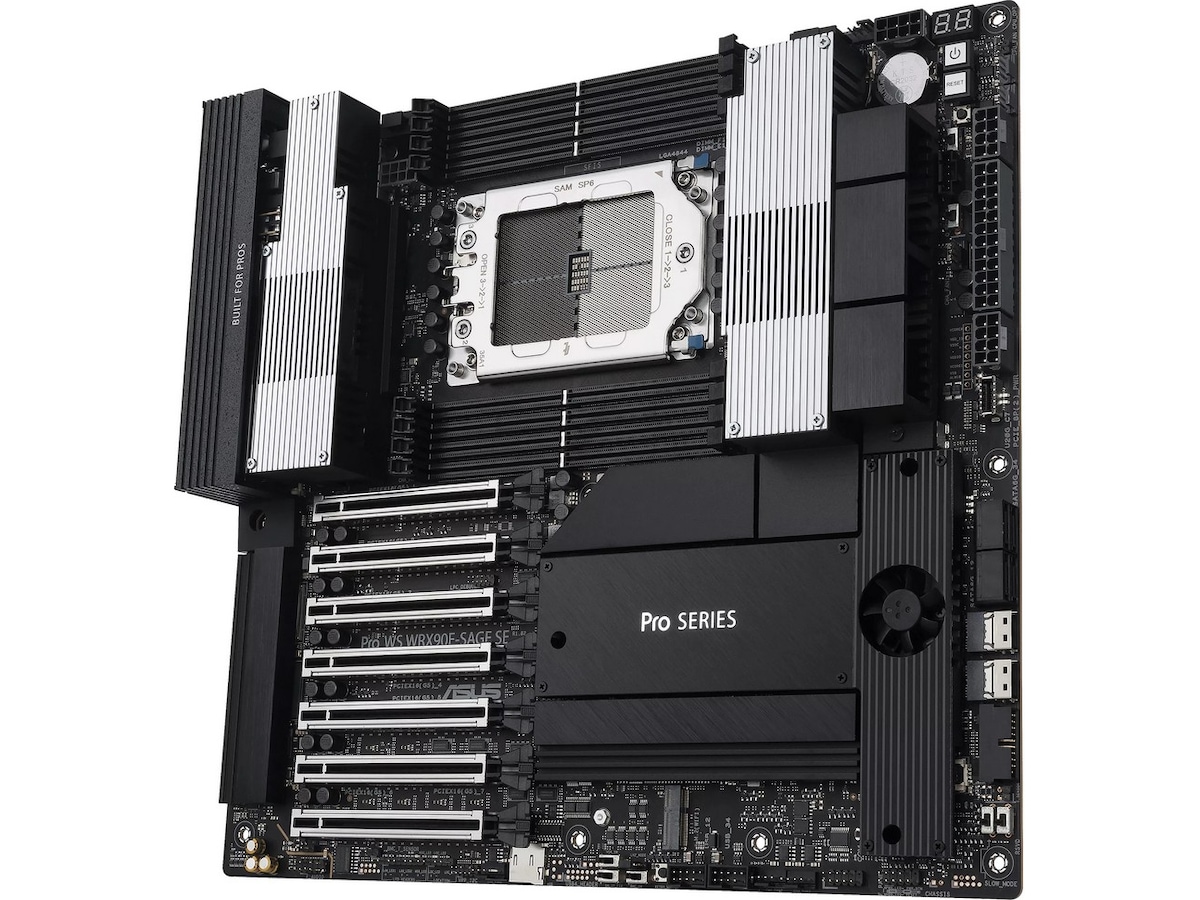

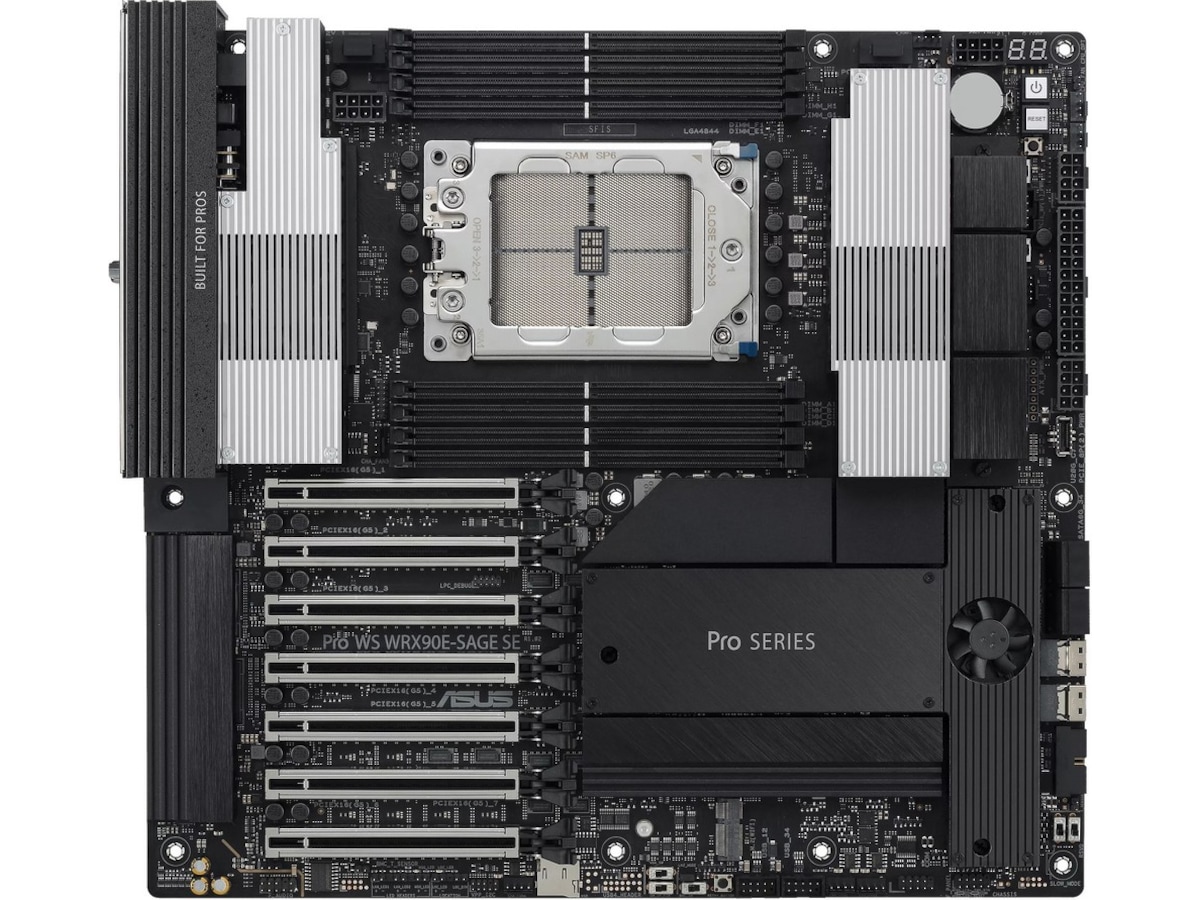

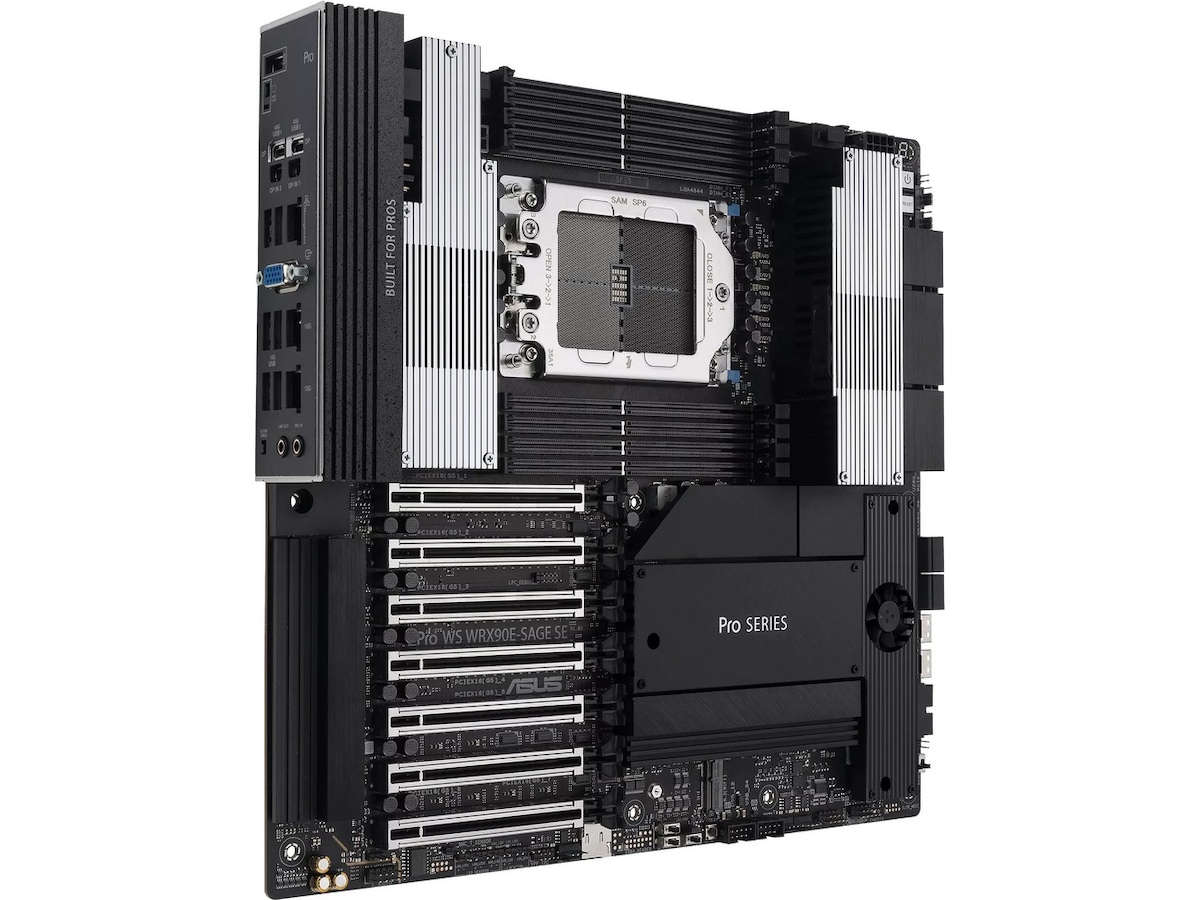

ASUS Pro WS WRX90E-SAGE SE Hovedkort
