Varenummer: 1223277 / Produktnr.: 90MB1C40-M0EAY0

ASUS ProArt B650-Creator Hovedkort

AM5, AMD B650, ATX, DDR5, 2 x PCIe 4.0 x16 slots, 3 x M.2 slots

Flere bilder av ASUS ProArt B650-Creator Hovedkort

2 533,- Eks. mva.
fra 85,- /mnd.
Leasing velges i kassen
Bestillingsvare. Bestilles ved ordre. Leveringstid 2-3 uker.

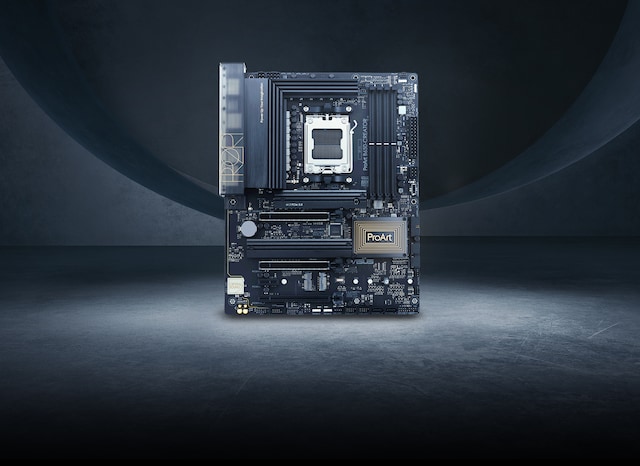

ASUS ProArt B650-Creator

ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

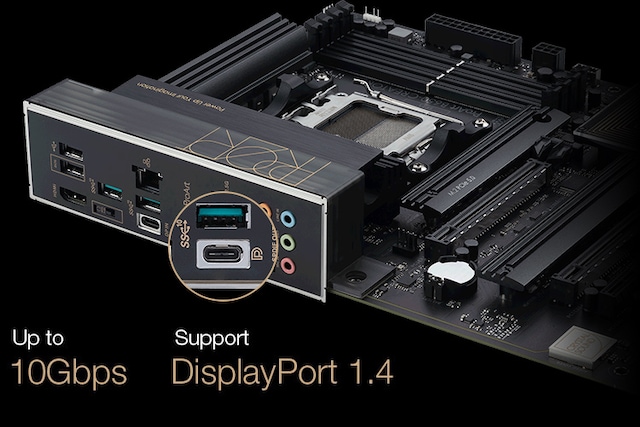

USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.

USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

USB4® Support

ProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

*ASUS add-on card is sold separately.

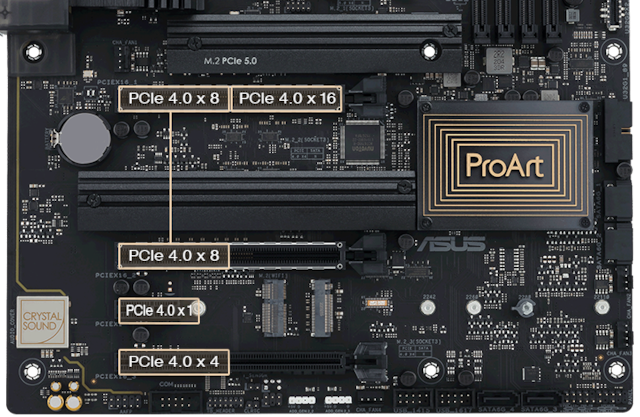

Multi-card support

The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.

Dual Ethernet

2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.

*WiFi/BT modules are sold separately.

PCIe 5.0 M.2 Storage

The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

Generelt
Produktserie ASUS
Modell ProArt B650-CREATOR
Garanti (måneder) 36
EAN 4711081988090
Hovedkort
RAM-spor 4 DIMM-spor
Brikkesett type AMD B650
Støttet RAM-teknologi DDR5 SDRAM
Kompatible prosessorer Ryzen
Merknader om kompatible prosessorer Støtter Ryzen 7000 Series
Prosessorsokkel Socket AM5
Produktformfaktor ATX
Støttet RAM (registrert eller bufret) Ikke-bufret
Strømkontakter 4-pin ATX12V-kontakt, 8-pin ATX12V-kontakt, 6-pinw PCI Express-strømkontakt, 24-pin hovedstrømforsyningskontakt
Støttet RAM-hastighet 5000 MHz, 6400 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5200 MHz, 4800 MHz, 5800 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.)
Støttet RAM-integritetskontroll ECC, On-die ECC, Ikke-ECC
Hovedkortegenskaper
BIOS Type AMI
BIOS-egenskaper ASUS EZ Flash 3, UEFI BIOS
Sov/Våkne Wake on LAN (WOL), Våkne ved PME
Maskinvarefunksjoner Lydjakkpåvisningsteknologi, M.2 Q-Latch, BIOS FlashBack LED, Q-LED, ASUS Enhanced Memory Profile (AEMP), ASUS Q-Connector, Jakk-retasking, BIOS FlashBack-knapp, ESD Guards, M.2-kjølelegeme, ASUS Q-Design, LANGuard, ASUS TurboV EVO, ASUS SafeSlot, Quick Charge 4+, ASUS Stainless Steel Back I/O, Q-Slot, ASUS 5X Protection III, ASUS EZ DIY, ASUS OptiMem II, VRM-kjøledesign, ASUS ProCool, Overspenningsvern, 60 A Power Stage, DIY Friendly Design, Formontert I/O-skjerm, ASUS Aura Sync, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS SafeDIMM, ASUS DIGI+ VRM, Q-DIMM, 12+2 Phase Power Design
Grensesnitt
USB / FireWire-portskonfigurasjon (aktiv) 2 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 2.0
Lagerporter 4 x SATA-600 (RAID), 2 x M.2
RAID-funksjoner AMD RAID Xpert2 Technology
USB / FireWire-portskonfigurasjon (headere) 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lager M.2-sokkel, Serial ATA-600 (RAID)
USB / FireWire USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2
Videoutgang
Type Grafikkadapter (CPU kreves)
Lydutgang
Type Lydkort
Lyd Høydefinisjonslyd (8-kanals)
Tilpassede standarder High Definition Audio
Diverse
Produkttype Hovedkort
Tilpassede standarder FCC Part 15 Class B, JATE, EU RoHS, VCCI Class B ITE, WEEE, DisplayPort 1.4, EU REACH
Inkludert tilbehør 1 x M.2 gummipakke, ACC Express Activation Key Card, 2 x M.2-skruepakke, Q-Connector
RAM
Egenskaper Dobbeltkanalsminnearkitektur, AMD EXPO-teknologi
Nettverkstilknytning
Datakjedeprotokoll Fast Ethernet, Gigabit Ethernet, Ethernet, 2.5 Gigabit Ethernet
Nettverk 2.5 Gigabit Ethernet, Gigabit Ethernet
Utvidelsesspor
Utvidelsesspor 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor), 1 x M.2 socket (Key E), 1 x M.2 socket (2242/2260/2280 M.2 Key M-spor), 4 x 288-pins DIMM, 1 x PCIe 4.0 x1, 1 x CPU, 1 x PCIe 4.0 x16 (x4-modus), 2 x PCIe 4.0 x16 (dobbelt x8-modus, enkeltkort: x16-modus)
Lagergrensesnitt
Lagergrensesnitt PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
Grensesnitt medfølger
Grensesnitt 1 x lydinnlinje - minijakk, 1 x LAN (2.5Gigabit Ethernet), 1 x HDMI, 1 x DisplayPort-inngang, 2 x USB 2.0, 1 x USB-C 3.2 Gen 2, 1 x USB-C Gen2/DisplayPort, 1 x lydutlinje - minijakk, 1 x lydutlinje (bakre) - minijakk, 1 x mikrofon - minijakk, 3 x USB 3.2 Gen 2, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 1 x LAN (Gigabit Ethernet), 1 x SPDIF-utgang
Interne overflater
Interne overflater 2 x USB 3.2 Gen 1 - header, 1 x seriell - header, 1 x USB-C 3.2 Gen 2x2 - header, 1 x lyd - header, 1 x Thunderbolt - header, 4 x USB 2.0 - header
Kabeldetaljer
Medfølgende kabler 2 x Seriell ATA-kabel, 1 x DisplayPort-kabel
Programvare
Inkludert programvare Norton AntiVirus (Trial), CreationFirst, PC Cleaner, ASUS Control Center Express, Armoury Crate, ASUS AURA Creator, ASUS ProArt Creator Hub, ASUS Fan Xpert 4, WinRAR, ASUS AI Suite III, ASUS CPU-Z
