Varenummer: 1198161 / Produktnr.: 90MB18M0-M0EAY0

ASUS ROG STRIX Z690-F GAMING WIFI Hovedkort

Name: ASUS ROG STRIX Z690-F GAMING WIFI Hovedkort
Brand: ASUS
SKU: 1198161
Availability: Discontinued

Av ASUS

1 / 10

Produktinfo

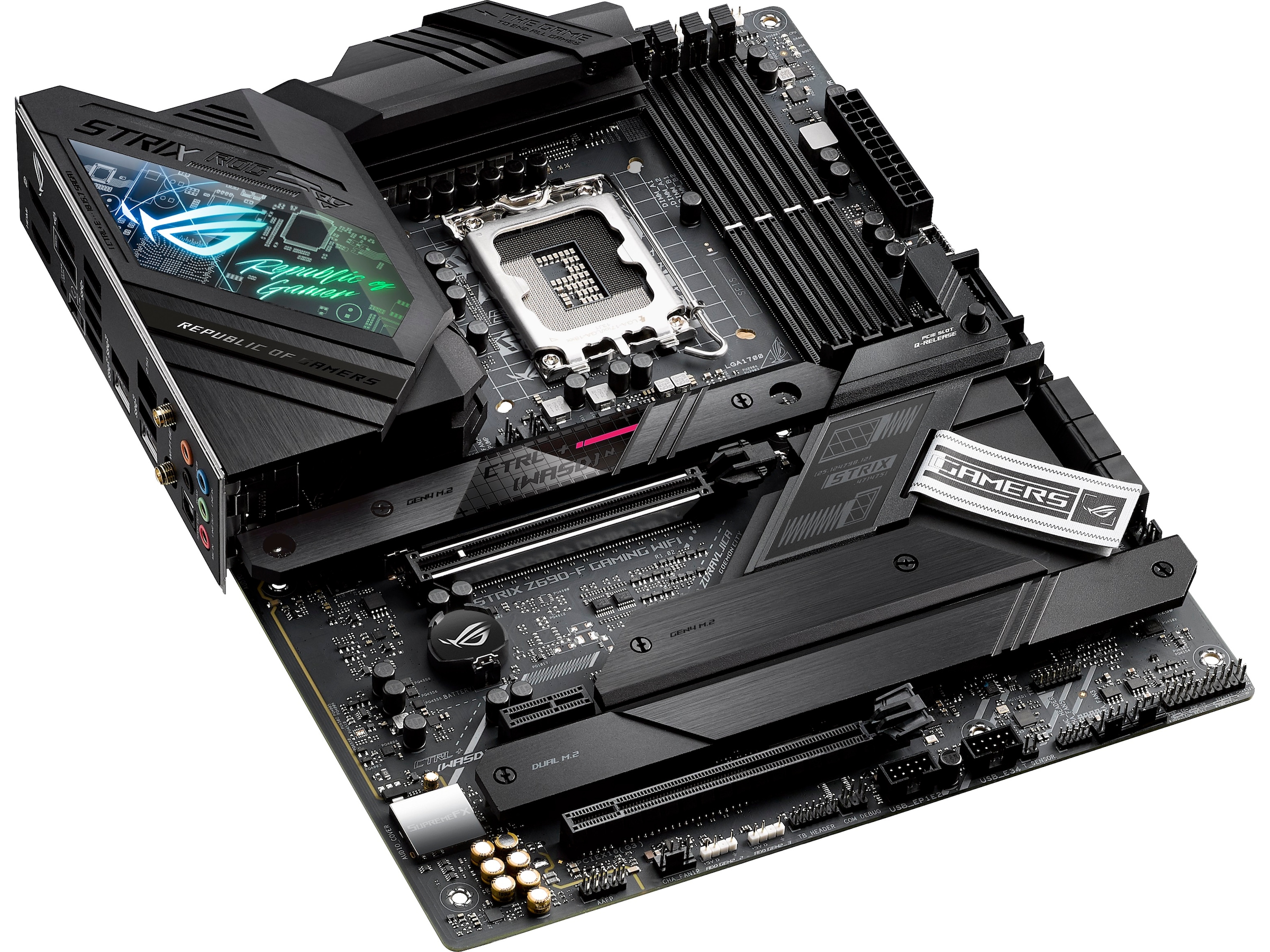

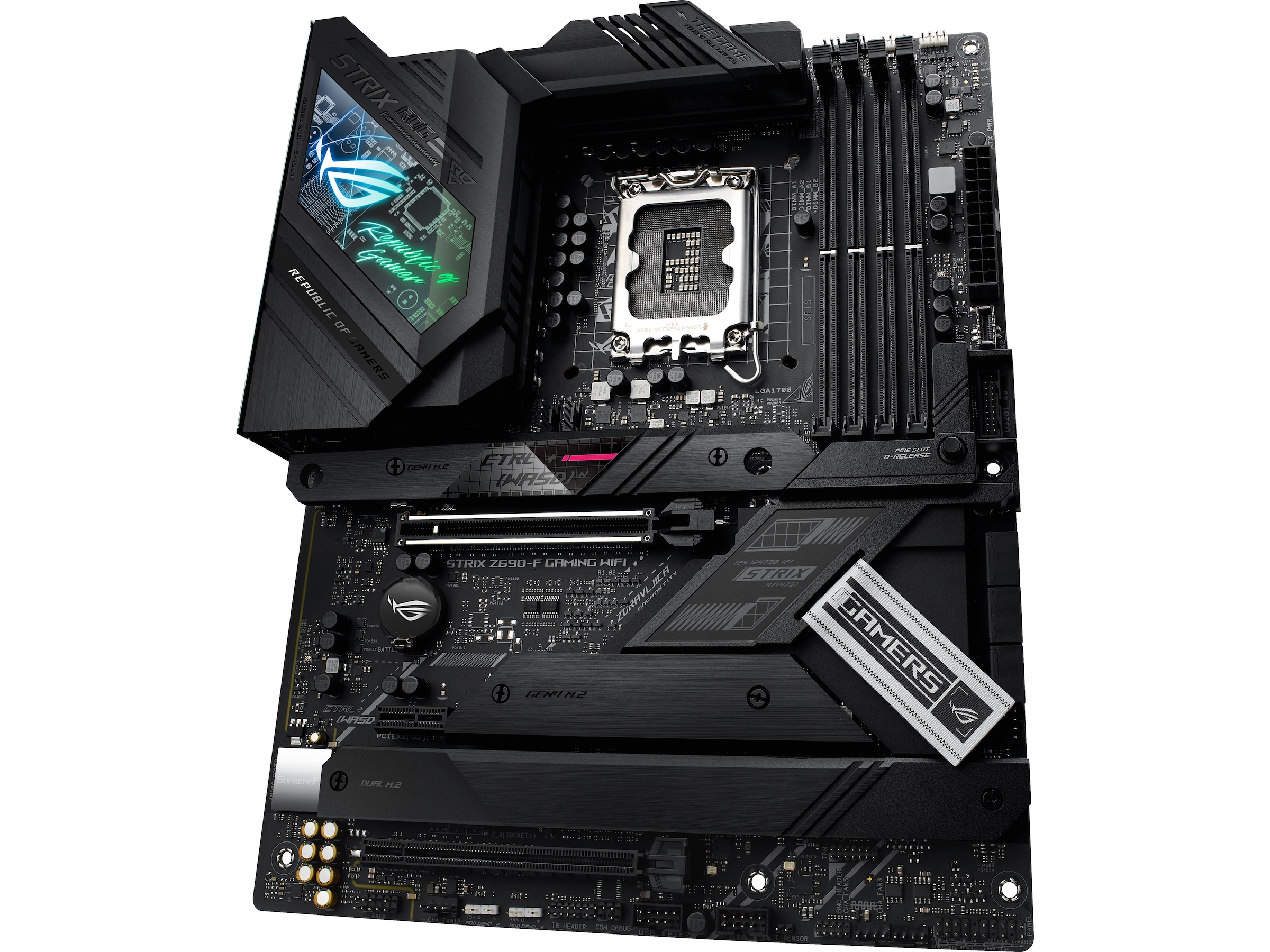

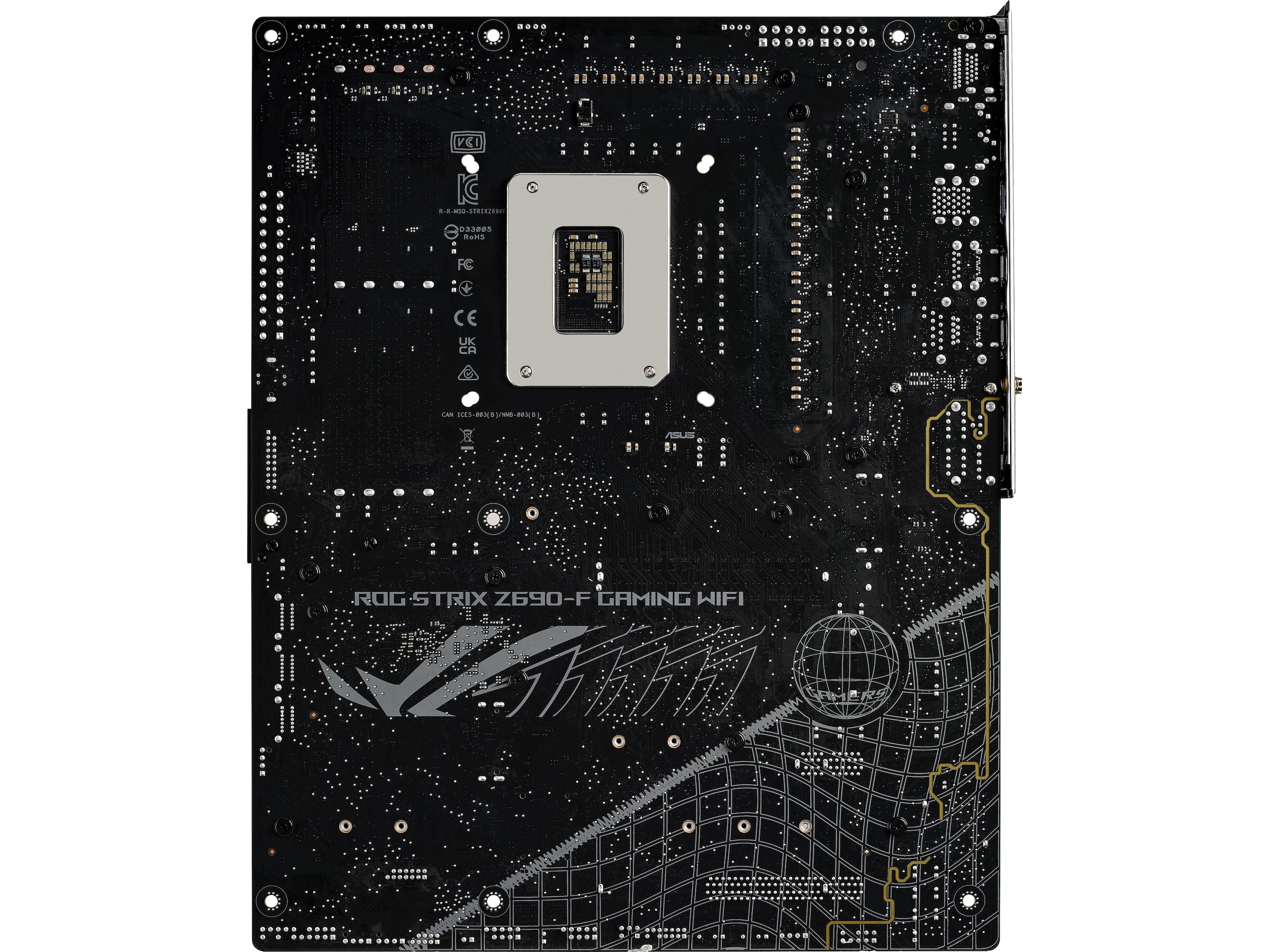

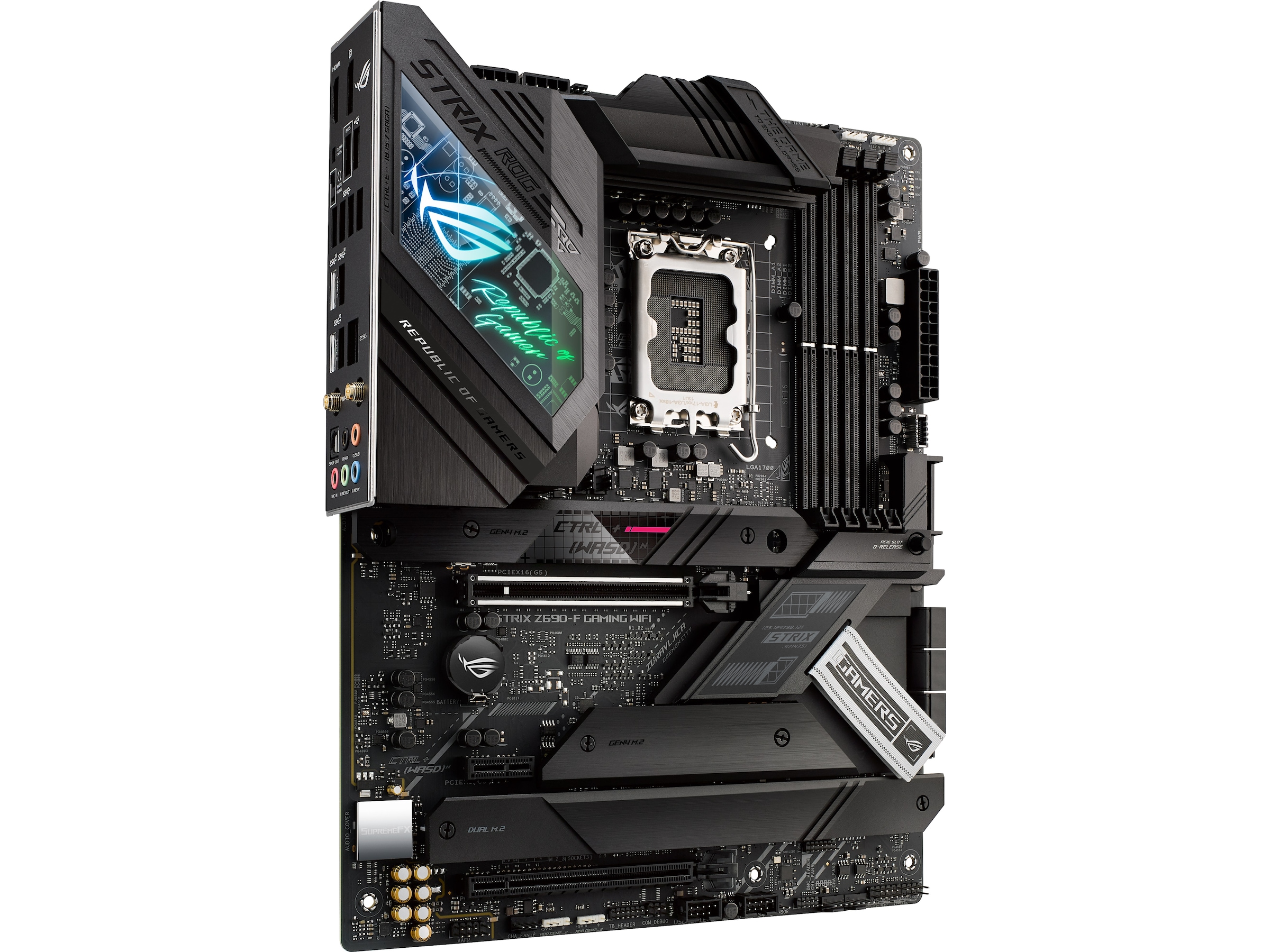

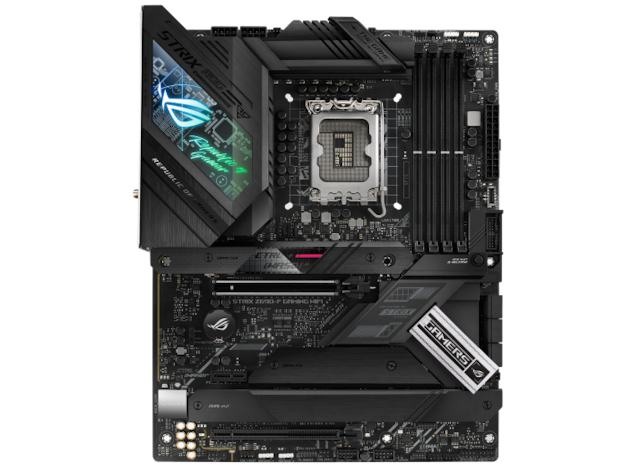

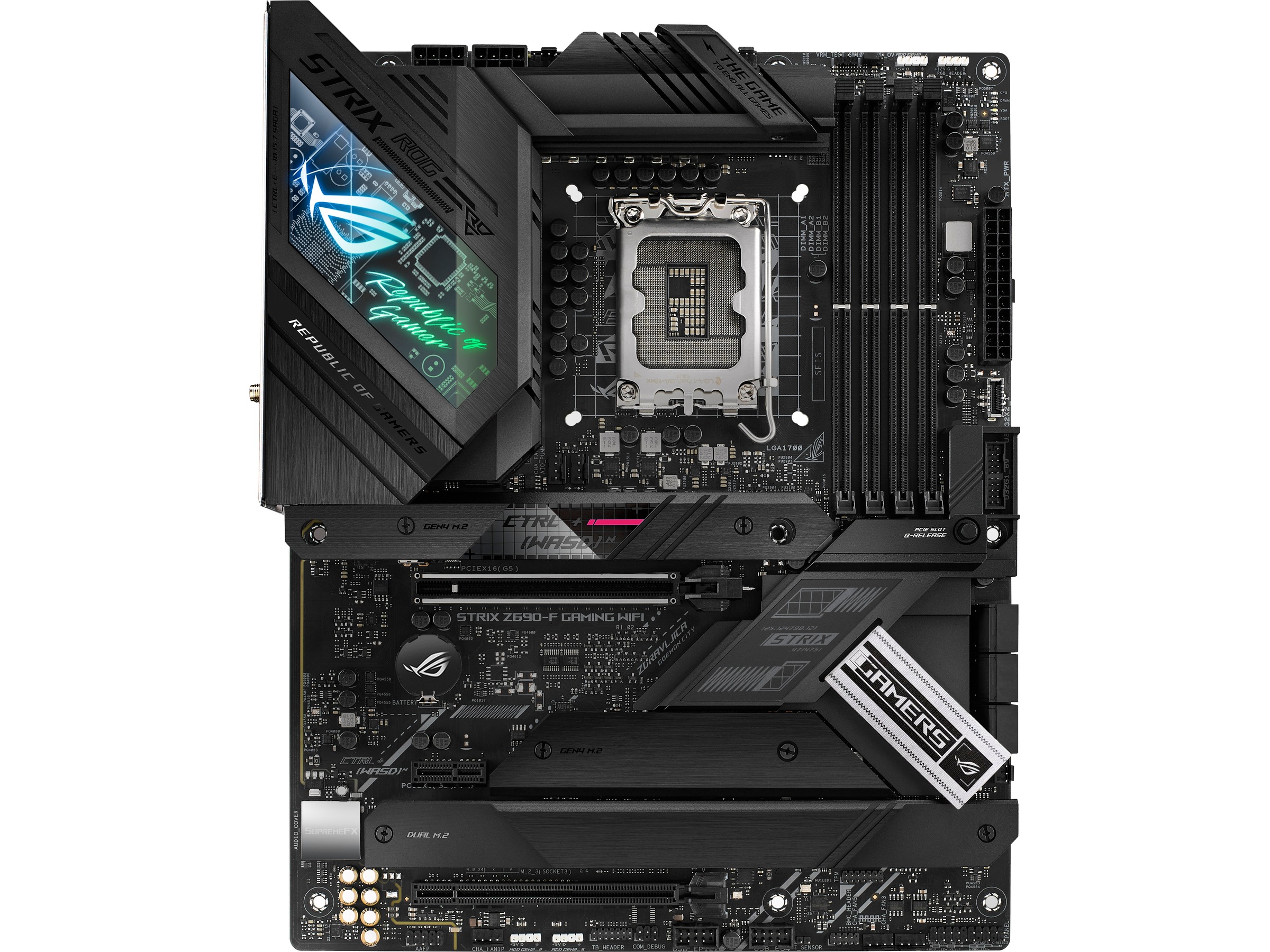

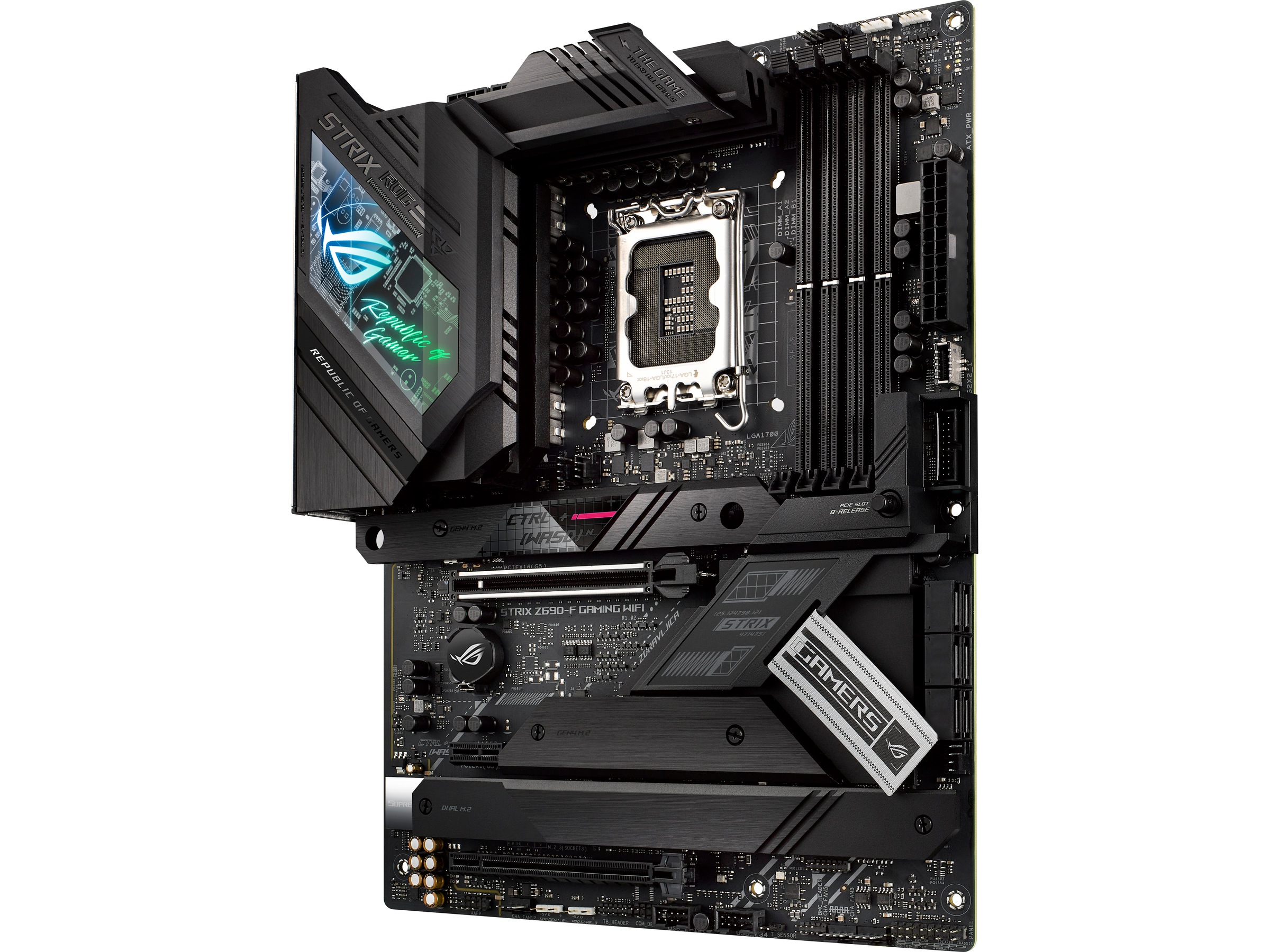

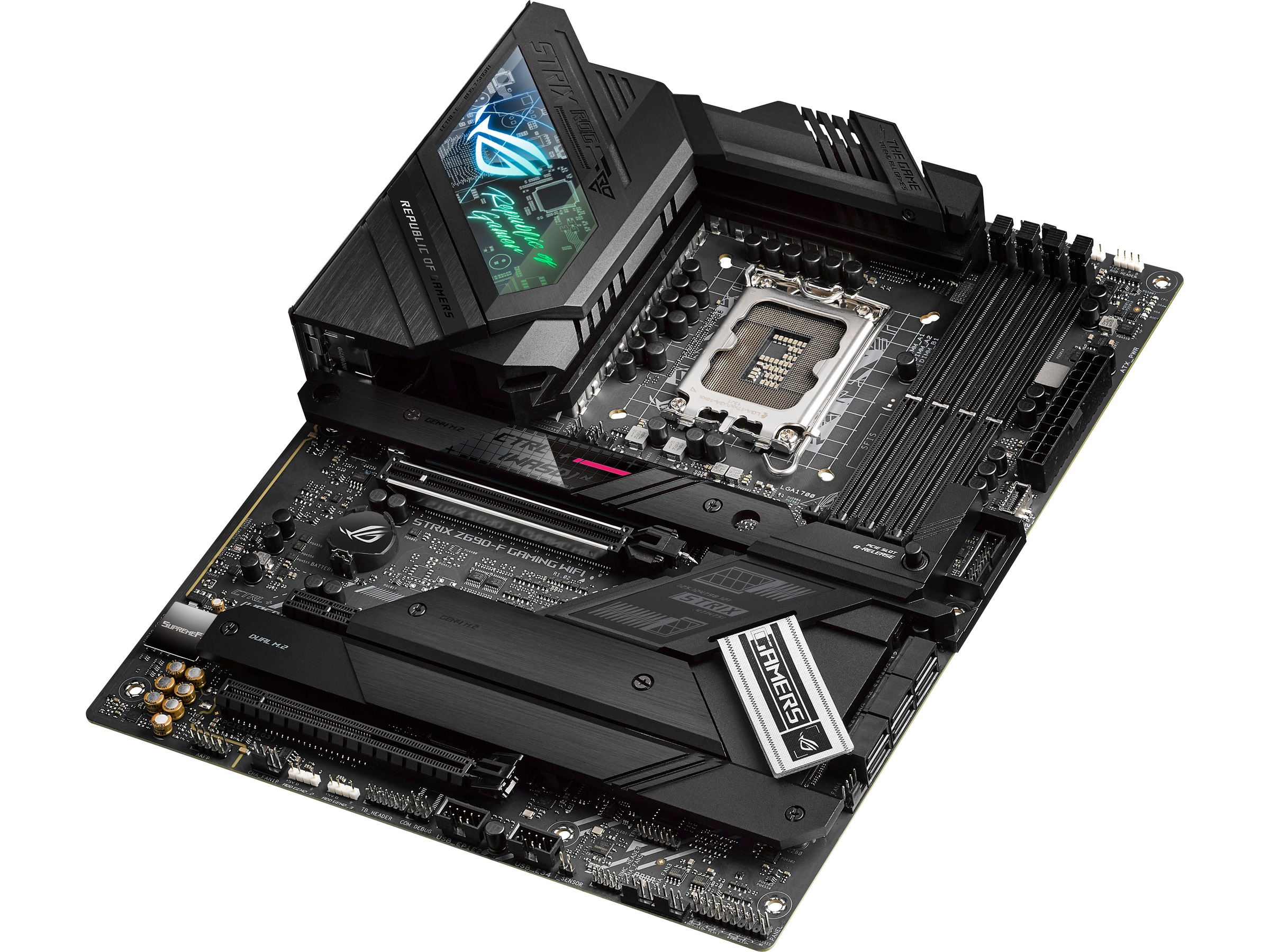

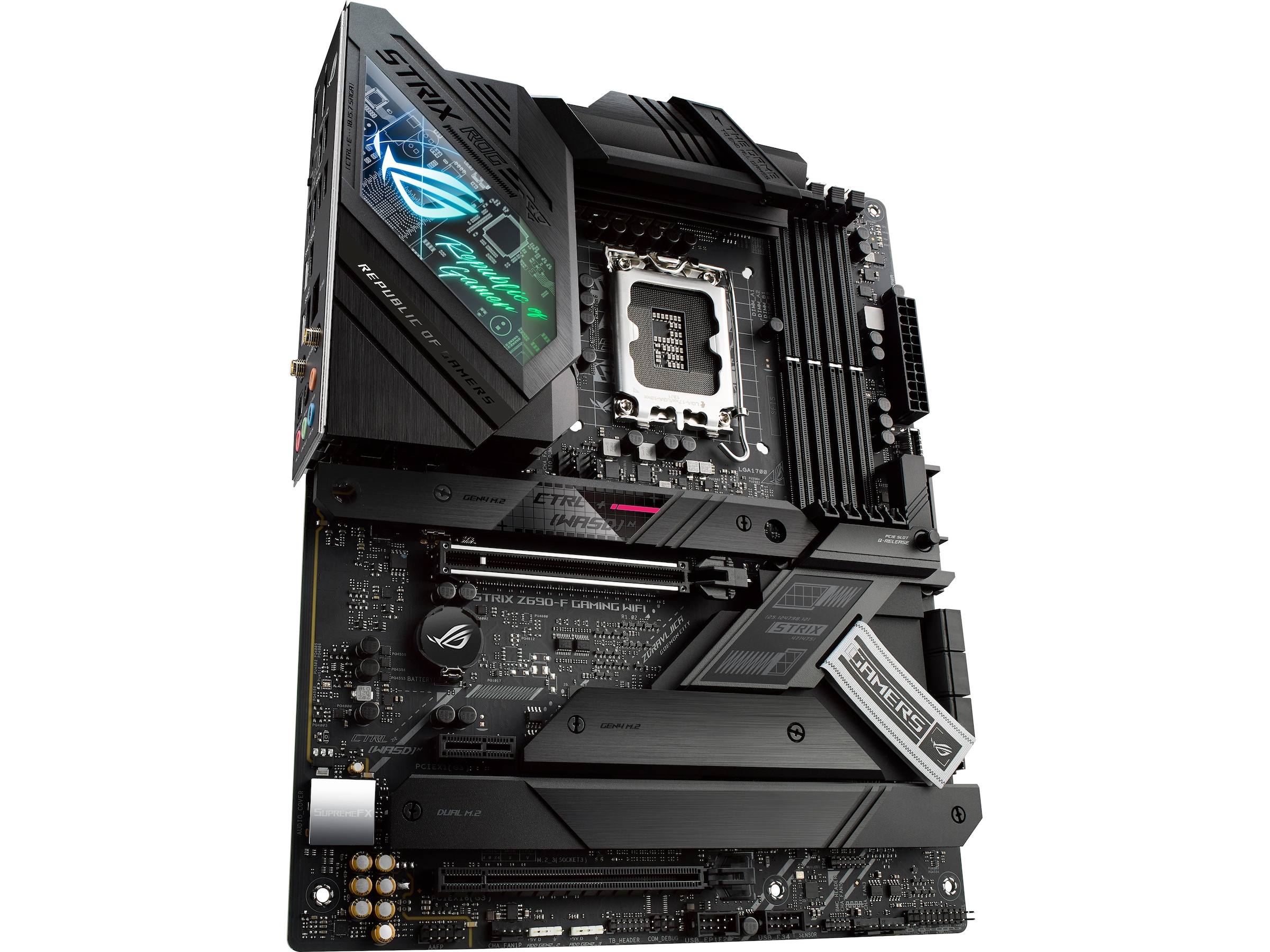

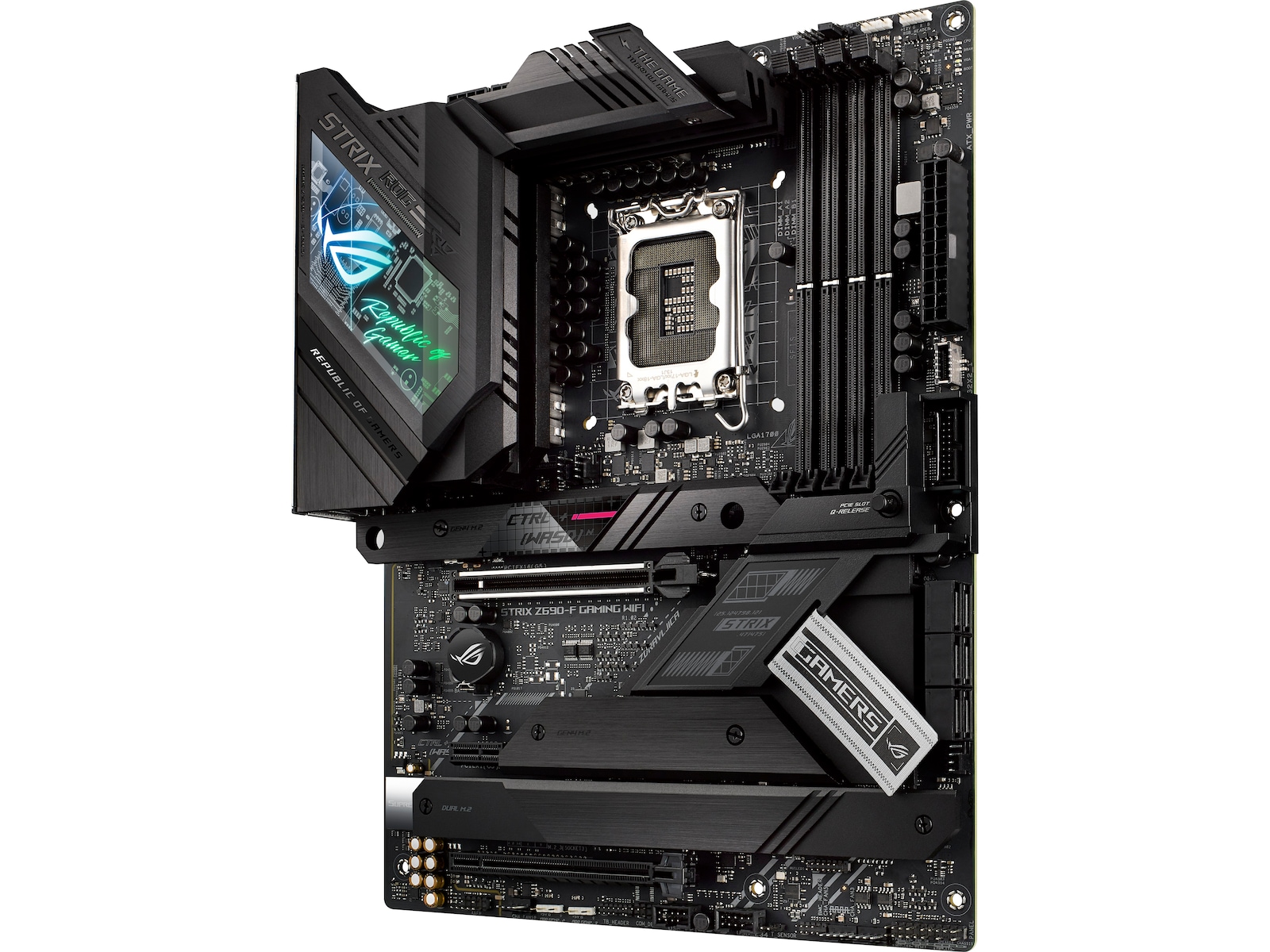

ASUS ROG STRIX Z690-F GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

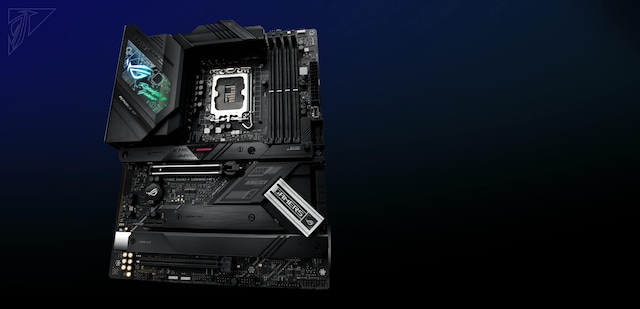

ALL-AROUND PERFORMANCE - ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Spesifikasjoner

Generelt
Modell	ROG STRIX Z690-F GAMING WIFI
Produktserie	ASUS
Garanti (måneder)	36
EAN	4711081441762

Hovedkort
Prosessorsokkel	LGA1700-sokkel
Støttet RAM-teknologi	DDR5 SDRAM
Brikkesett type	Intel Z690
Støttet RAM (registrert eller bufret)	Ikke-bufret
RAM-spor	4 DIMM-spor
Produktformfaktor	ATX
Støttet RAM-integritetskontroll	Ikke-ECC
Strømkontakter	2 x 8-pins ATX12 V-kontakter, 24-pin hovedstrømforsyningskontakt
Støttet RAM-hastighet	4800 MHz, 5000 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5200 MHz (O.C.), 6200 MHz (O.C.), 5400 MHz (O.C.), 6400 MHz (O.C.)

Hovedkortegenskaper
BIOS Type	AMI
BIOS-egenskaper	BIOS FlashBack, ASUS EZ Flash 3, UEFI BIOS
Maskinvarefunksjoner	Armoury Crate, CrashFree BIOS 3, ASUS ProCool II, GameFirst VI, Lydjakkpåvisningsteknologi, ASUS SafeSlot, Sonic Studio III, Q-Slot, Sonic Radar III, ASUS Extreme Engine Digi+, ASUS Fan Xpert 4, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), M.2 Q-Latch, ASUS DIGI+ VRM, ASUS HYDRANODE, Clear CMOS Button, FlexKey-knapp, Formontert I/O-skjerm, Q-LED, ASUS Q-Design, ASUS EZ DIY, SupremeFX Shielding-teknologi, Gold Plated Audio Hardware, Jakk-retasking, ASUS TPU (TurboV Processing Unit), ASUS EPU (Energy Processing Unit), SafeDIMM, Q-DIMM, Savitech SV3H712-forsterker, ASUS Aura Sync, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II
Sov/Våkne	Wake on LAN (WOL), Våkne ved PME

Grensesnitt
RAID-funksjoner	Intel Rapid Storage Technology
Lagerporter	6 x SATA-600 (RAID), 4 x M.2
USB / FireWire-portskonfigurasjon (headere)	1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire-portskonfigurasjon (aktiv)	1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
Lager	Serial ATA-600 (RAID), M.2-sokkel
USB / FireWire	USB-C Gen 2x2, USB 3.2 Gen 1, USB-C Gen2, USB 3.2 Gen 2

RAM
Egenskaper	Dobbeltkanalsminnearkitektur

Videoutgang
Type	Grafikkadapter (CPU kreves)

Lydutgang
Type	Lydkort
Lyd	Høydefinisjonslyd (8-kanals)
Audio Codec	SupremeFX (ALC4080)
Tilpassede standarder	High Definition Audio, DTS Sound Unbound

Kabeldetaljer
Medfølgende kabler	4 x Seriell ATA-kabel

Diverse
Produkttype	Hovedkort

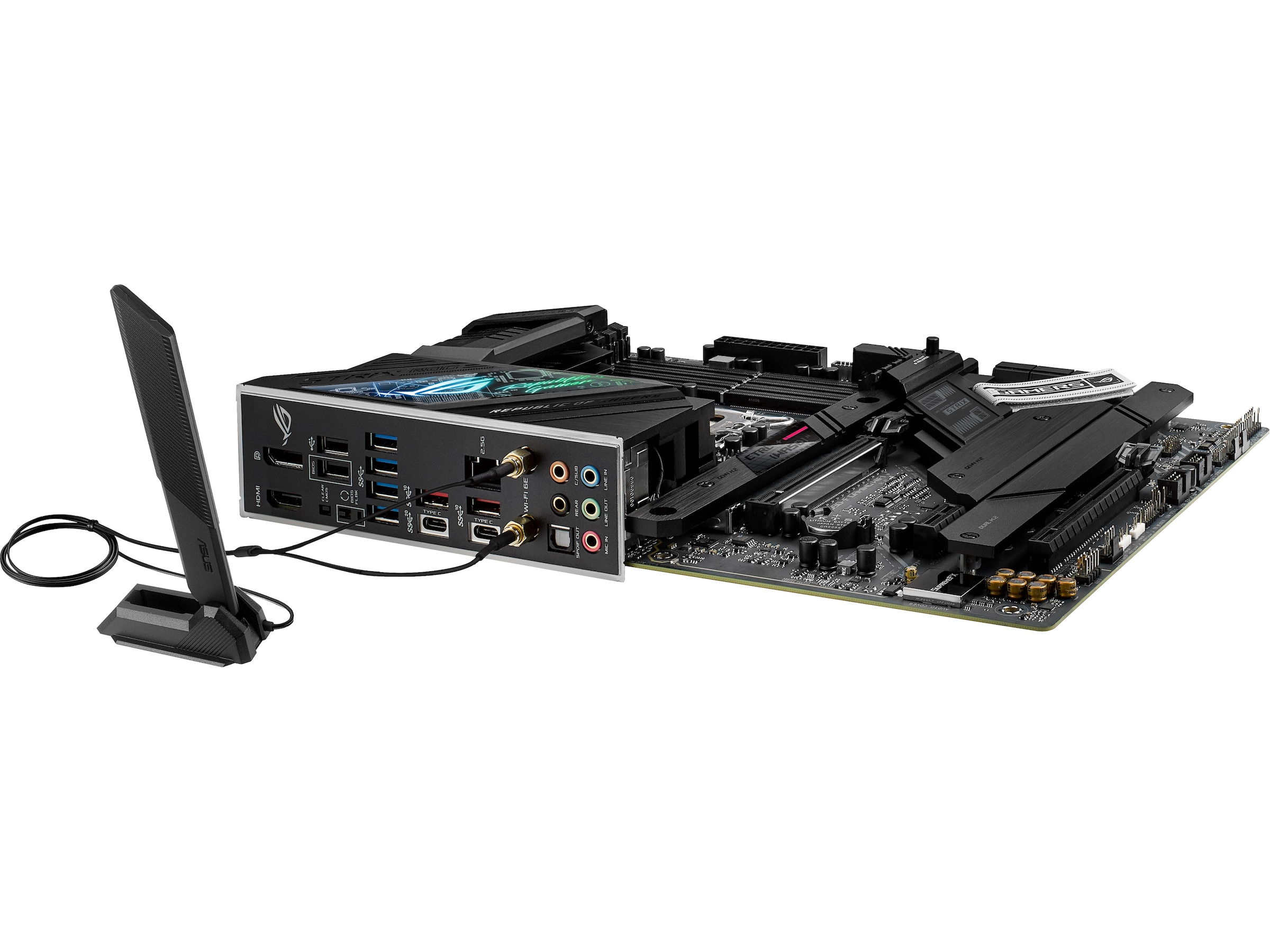

Inkludert tilbehør	ASUS Wi-Fi bevegende antenne, 2 x M.2-gummipakke, STRIX-etiketter, M.2 Q-Latch, ROG-takkekort, ROG-nøkkelkjede

Nettverkstilknytning
Datakjedeprotokoll	IEEE 802.11n, Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, IEEE 802.11az (Wi-Fi 6E), IEEE 802.11g, IEEE 802.11ac, IEEE 802.11b
Nettverk	802.11a/b/g/n/ac/ax/az, Bluetooth 5.2, 2.5 Gigabit Ethernet

Utvidelsesspor
Utvidelsesspor	1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4-modus), 1 x PCIe 5.0 x16, 4 x 288-pins DIMM, 1 x CPU

Lagergrensesnitt
Lagergrensesnitt	PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Grensesnitt medfølger

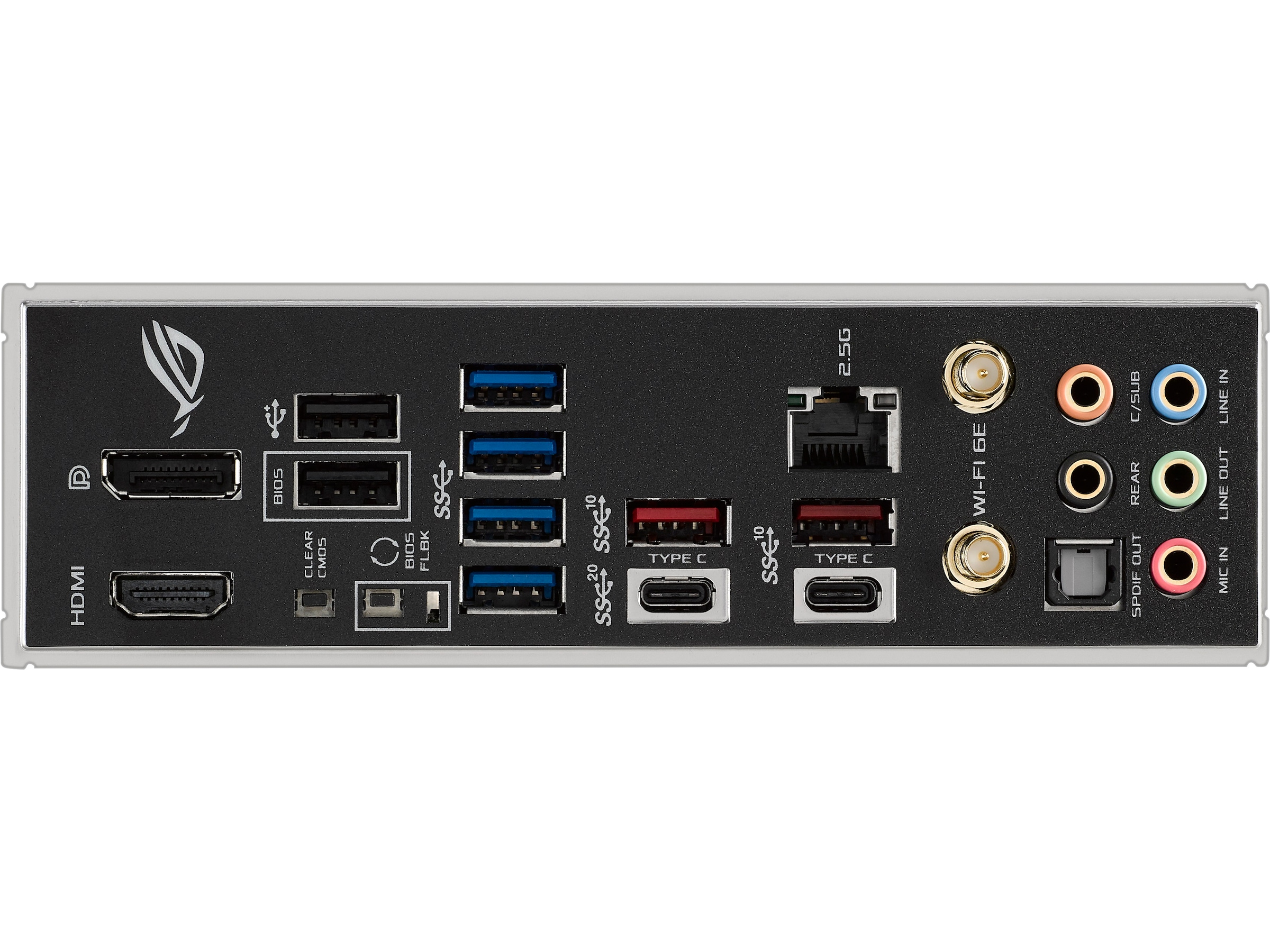

Grensesnitt	1 x USB-C Gen2, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x DisplayPort, 1 x USB-C Gen2x2, 2 x USB 3.2 Gen 2, 1 x lydutlinje (bakre) - minijakk, 1 x TOSLINK, 1 x HDMI, 1 x lydinnlinje - minijakk, 1 x lydutlinje - minijakk, 1 x LAN (2.5Gigabit Ethernet), 1 x mikrofon - minijakk

Interne overflater
Interne overflater	1 x lyd - header, 4 x USB 2.0 - header, 1 x USB-C Gen 2x2 - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header

Programvare
Inkludert programvare	ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, AIDA64 Extreme (60-dagersprøve), ASUS AURA Creator, Antivirus, WinRAR, Drivers & Utilities, Sonic Studio Virtual Mixer, MemTest86
