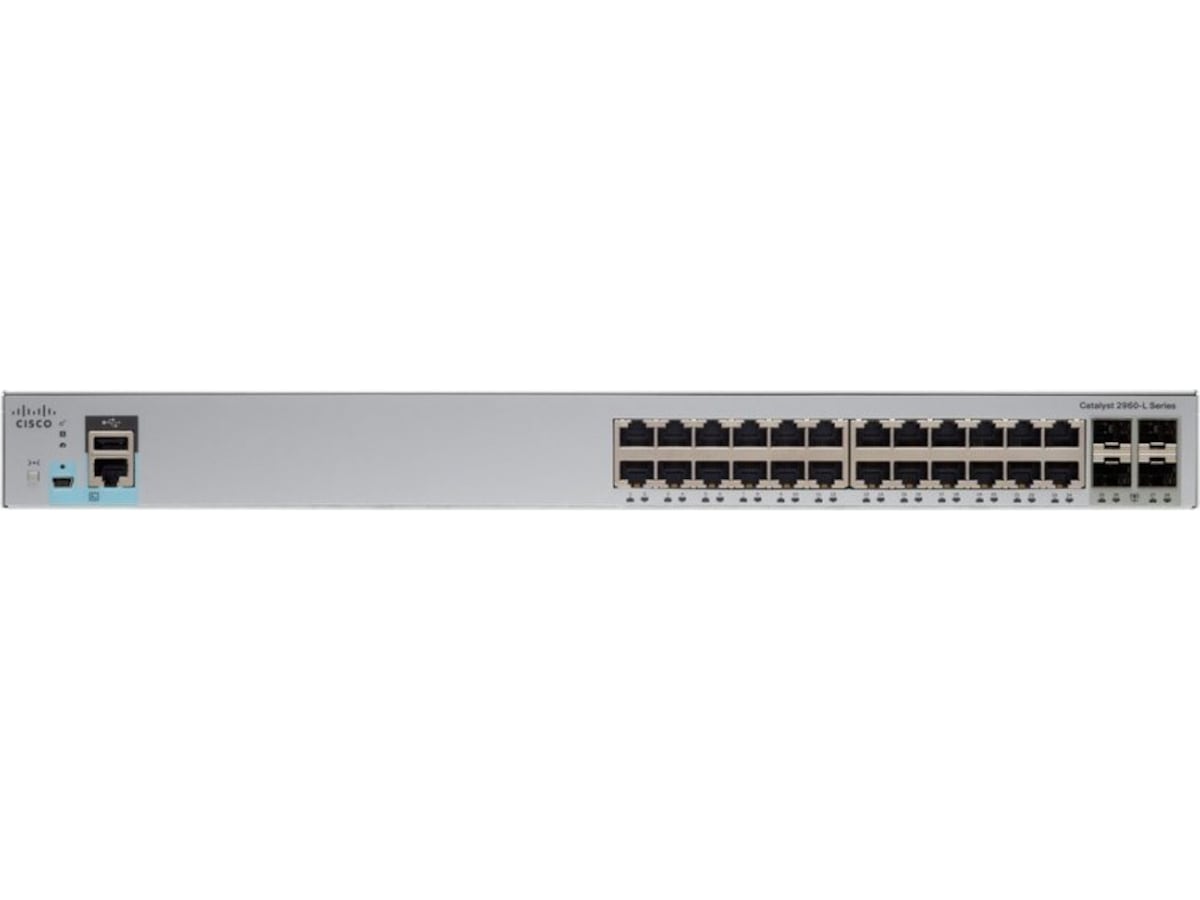

| Modell | 2960L-24TS-LL |
|---|---|
| Produktserie | Cisco Catalyst |
| Garanti (måneder) | 12 |
| EAN | 882658965159 |
| Klokkehastighet | 800 MHz |
|---|---|
| Type | ARM7 |
| RAM | 512 MB |
|---|
| Montert størrelse | 256 MB |
|---|
| Underkategori | Nettverkshub-er og -svitsjer |
|---|---|
| Håndterbar | Ja |
| Jumborammestøtte | 10 240 byte |
| Antall porter | 24 |
| Undertype | Gigabit Ethernet |
| Rutingprotokoll | IGMP |
| Type | Switch |
| Egenskaper | MAC Address Notification, Cisco EnergyWise-teknologi, Spanning-tree Root Guard (STRG), VLAN Trunking Protocol (VTP), Per-VLAN Rapid Spanning Tree (PVRST), APR støtte, Link Aggregation Control Protocol (LACP), Dynamic ARP Inspection (DAI), Støtte for Multiple Spanning Tree Protocol (MSTP), Støtte for Rapid Spanning Tree Protocol (RSTP), Network Timing Protocol (NTP), Lag 2-svitsjing, Uten vifte, RADIUS-støtte, Dynamic VLAN Support (GVRP), SNMP-støtte, Støtte for Trivial File Transfer Protocol (TFTP), Sendedemping pr. port, Støtte for Dynamic Trunking Protocol (DTP), Støtte for Port Aggregation Protocol (PAgP), Støtte for Access Control List (ACL), DHCP-snusing, IGMP-filtrering, Uni-Directional Link Detection (UDLD), Bridge protocol data unit (BPDU) |
| Protokoll for fjernstyrt administrasjon | CLI, SNMP 3 |
| Tilpassede standarder | IEEE 802.1p, IEEE 802.3z, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.1D, IEEE 802.3, IEEE 802.3x, IEEE 802.1x, IEEE 802.3u |
| Statusindikatorer | System, PoE, Status, Link/hastighet |
| Formfaktor | Stasjonær, Rackmonterbar |
| Antall | 24 |
|---|---|
| Type | 10/100/1000 |
| Antall | 4 |
|---|---|
| Type | Gigabit SFP (opplink) |
| Type | Cisco IOS LAN Lite |
|---|
| Frekvens nødvendig | 50 - 60 Hz |
|---|---|
| Type | Intern strømforsyning |
| MTBF | 2,412,947 timer |
|---|---|
| Fargekategori | Grå |
| Autentifikasjons Metode | RADIUS, TACACS+, Secure Shell (SSH), Kerberos |
| Tilpassede standarder | EN55022 Class A, CISPR 24, AS/NZS 60950-1, VCCI Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN55024, ICES-003 klasse A, FCC CFR47 Part 15 B Class A, EN 300386, KN24, CISPR 22 klasse A, AS/NZS CISPR22:2004 Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, UL 60950-1, RoHS 2011/65/EU |
| Dybde | 24 cm |
|---|---|
| Bredde | 44.5 cm |
| Vekt | 3 kg |
| Høyde | 4.4 cm |
| Driftsfuktighet | 5 - 90% |
|---|---|
| Maks. oppbevaringstemperatur | 70 °C |
| Fuktighetsområde under oppbevaring | 5 - 95% |
| Maks. Driftstemperatur | 55 °C |
| Min. driftstemperatur | -5 °C |
| Min. oppbevaringstemperatur | -25 °C |
| Ytelse | Svitsjebåndbredde: 56 Gbps, Fremsendings-båndbredde: 28 Gbps |
|---|
| Kapasitet | SPAN-toretningsøkter: 1, Aktive VLAN-er: 64, VLAN støttet: 4094, MAC-adresser: 8000 |
|---|
| Grensesnitt | 24 x 1000Base-T RJ-45, 1 x konsoll RJ-45, 1 x USB Type A, 4 x 1000Base-X SFP opplink, 1 x konsoll (mini-USB) Type B |
|---|
