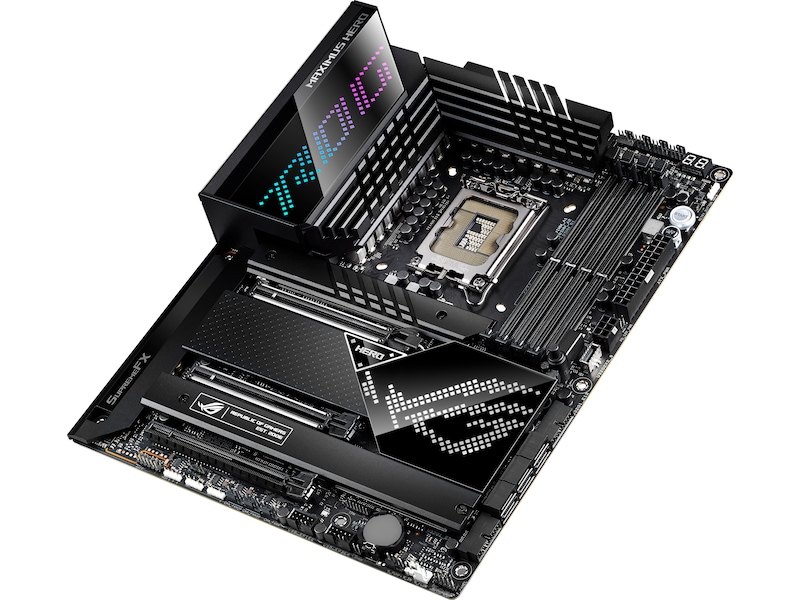

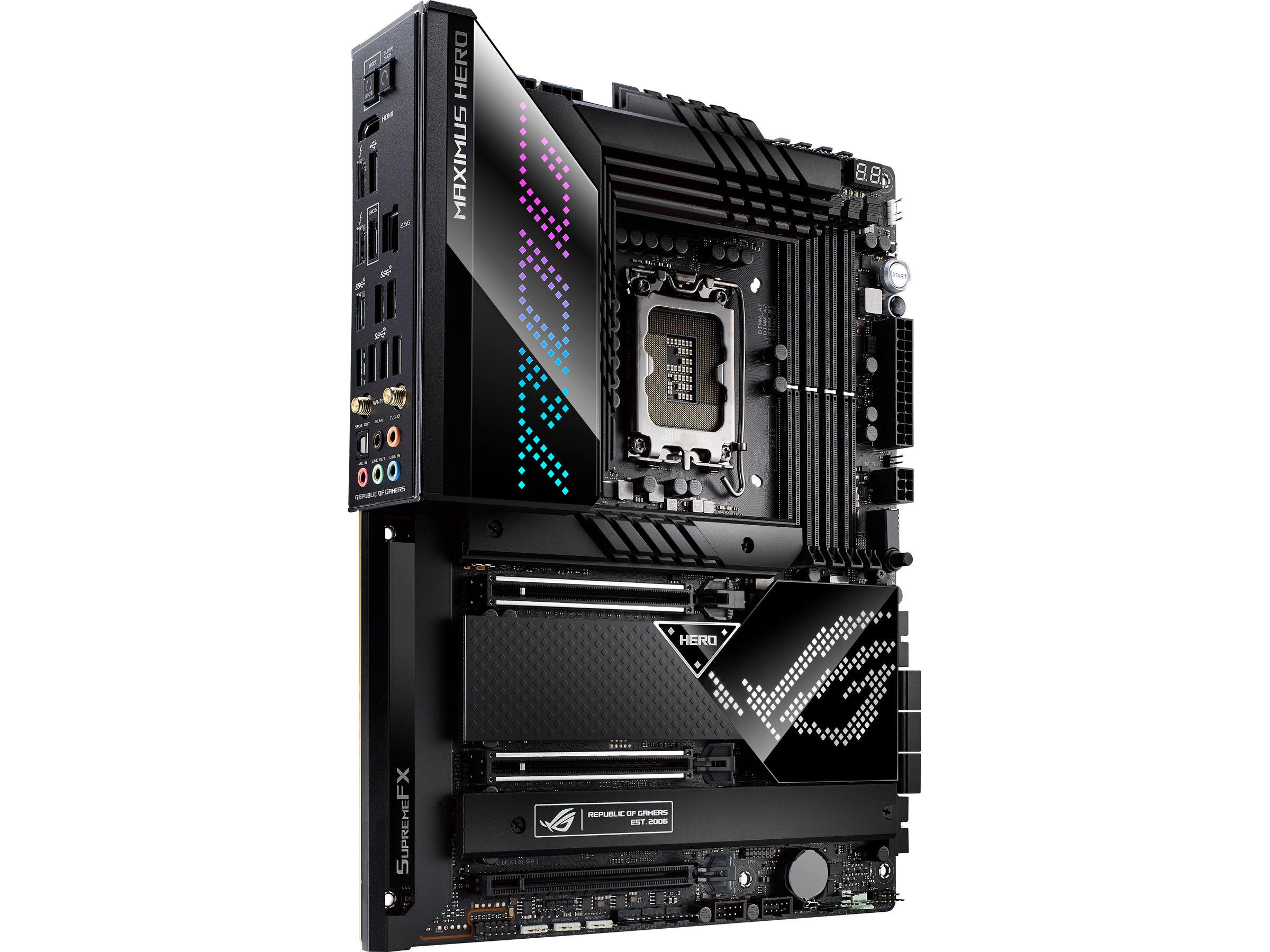

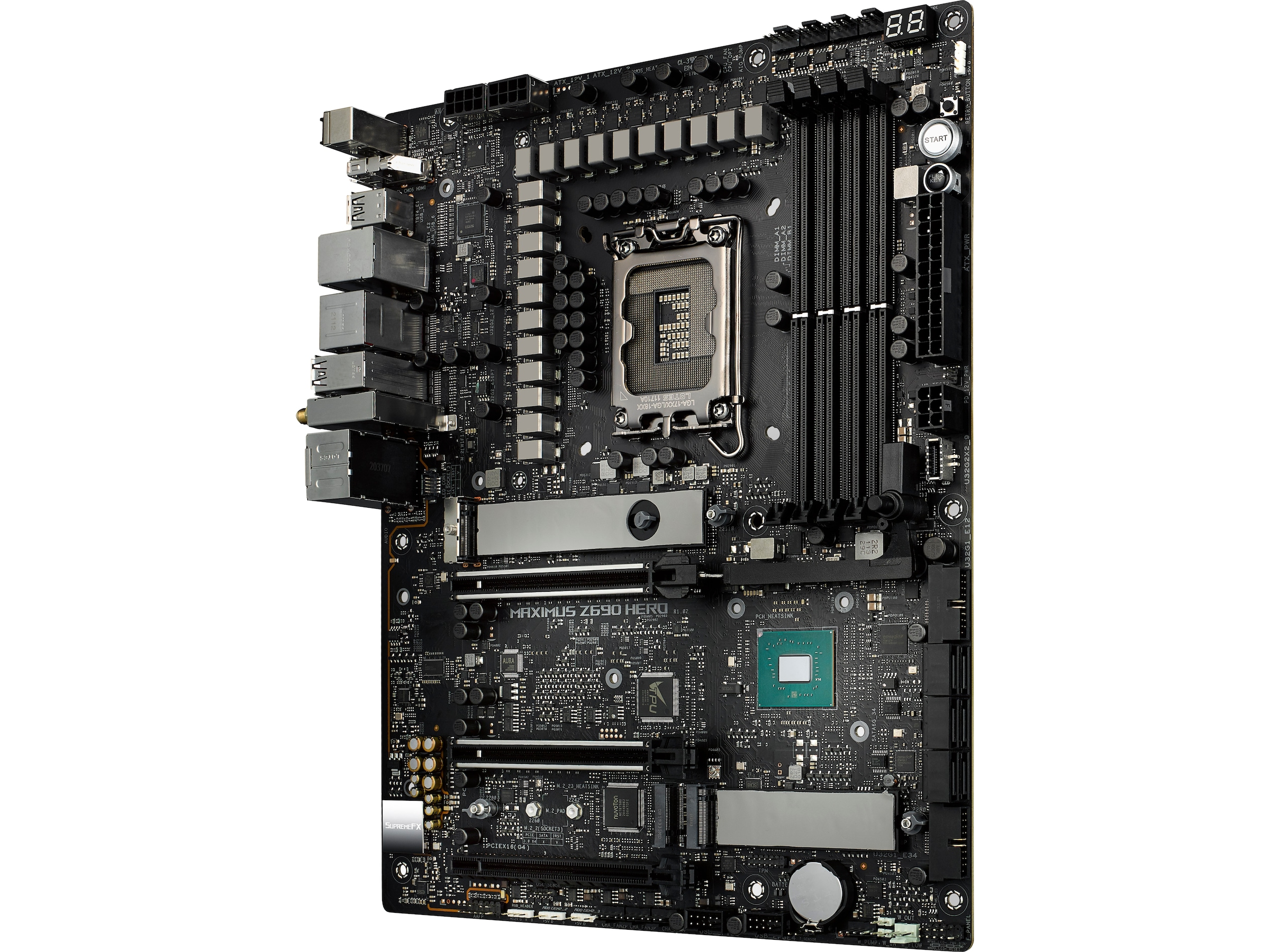

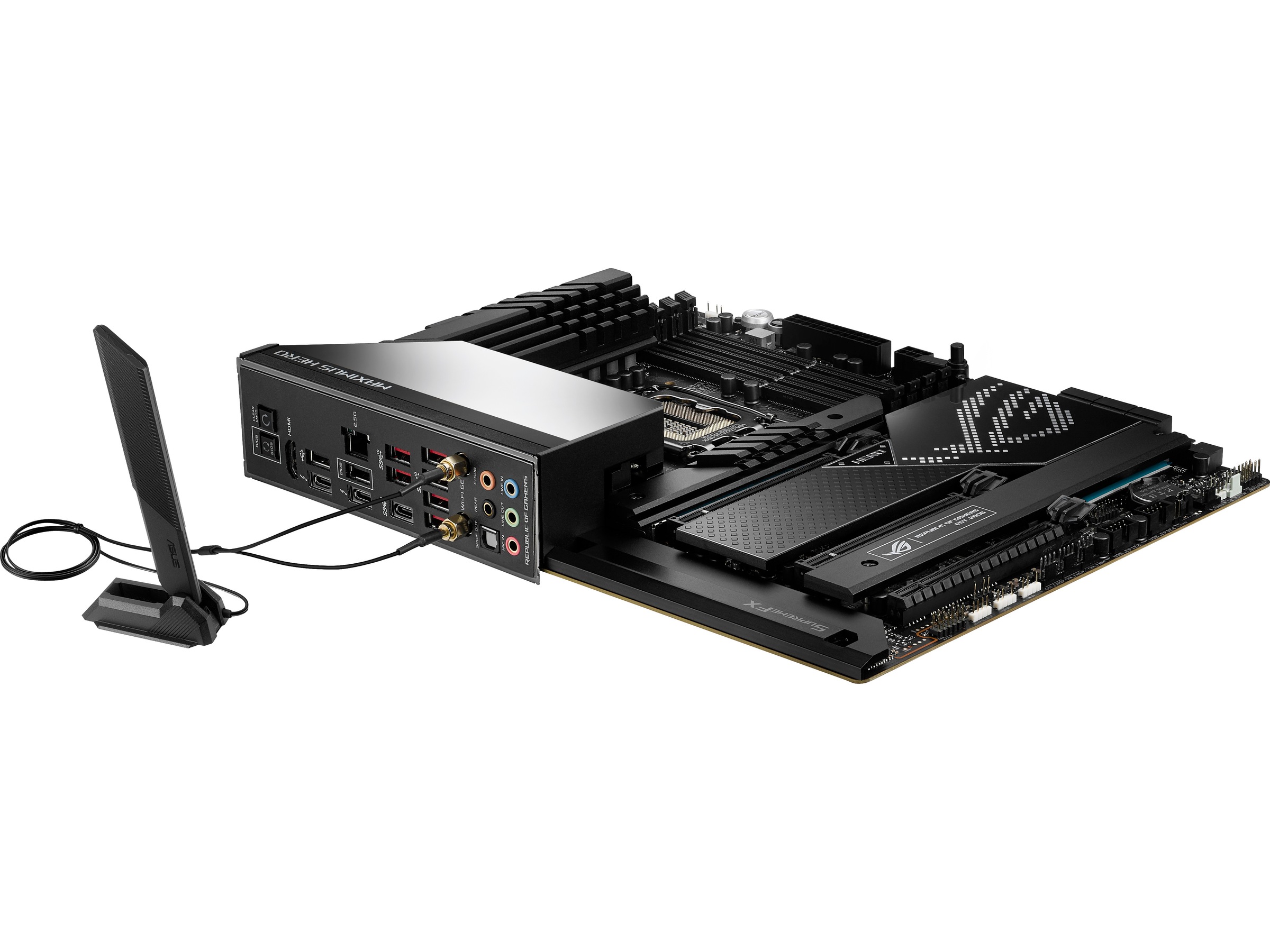

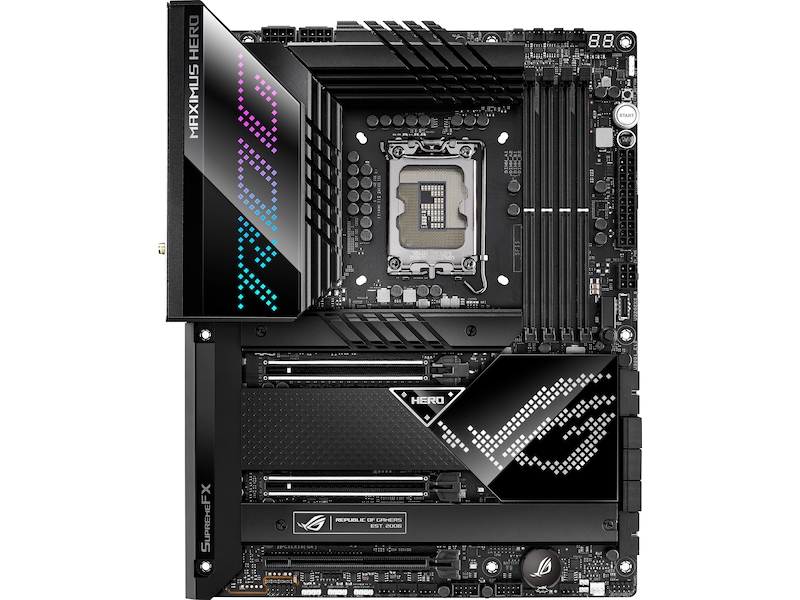

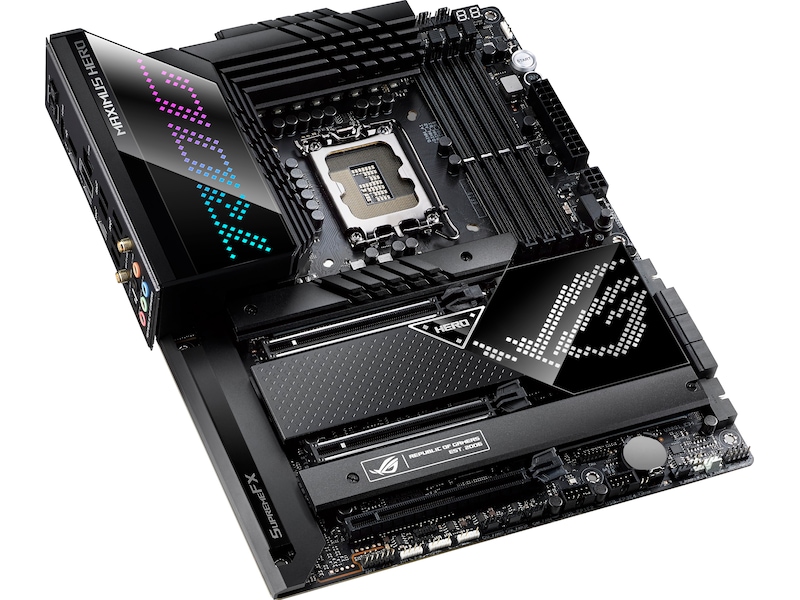

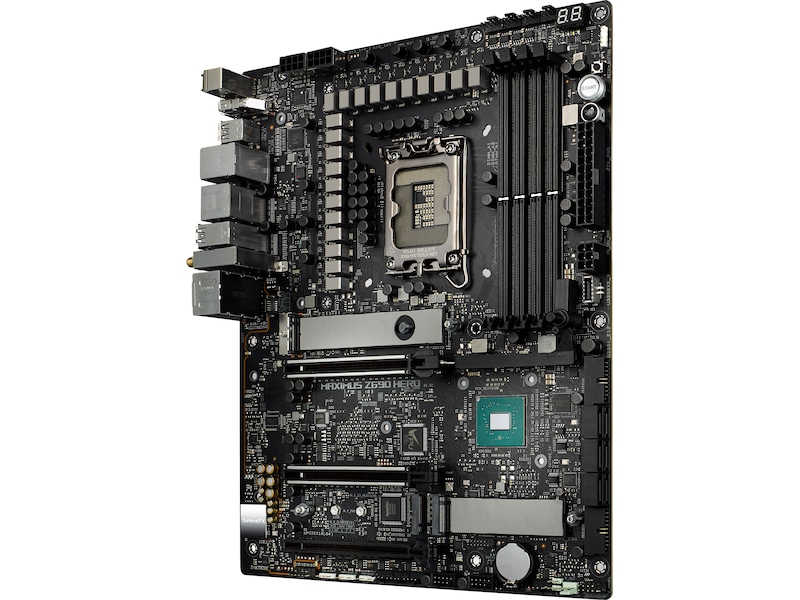

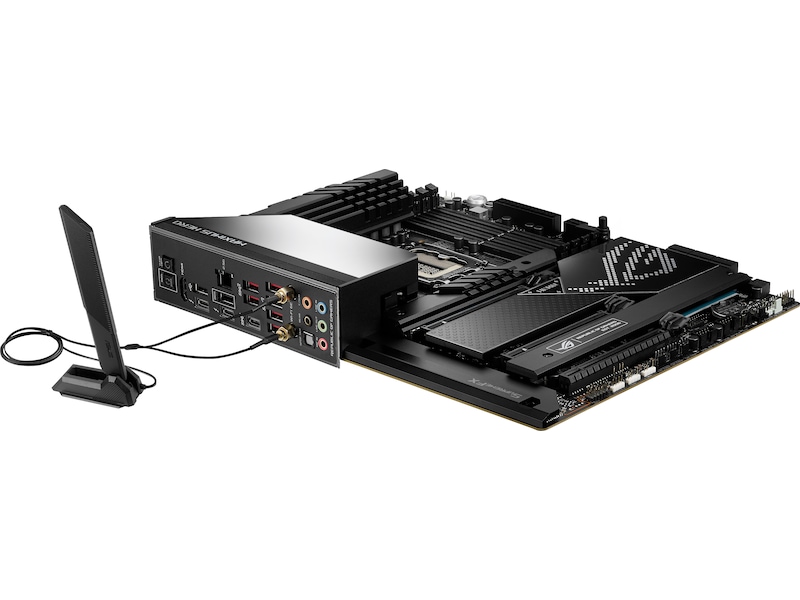

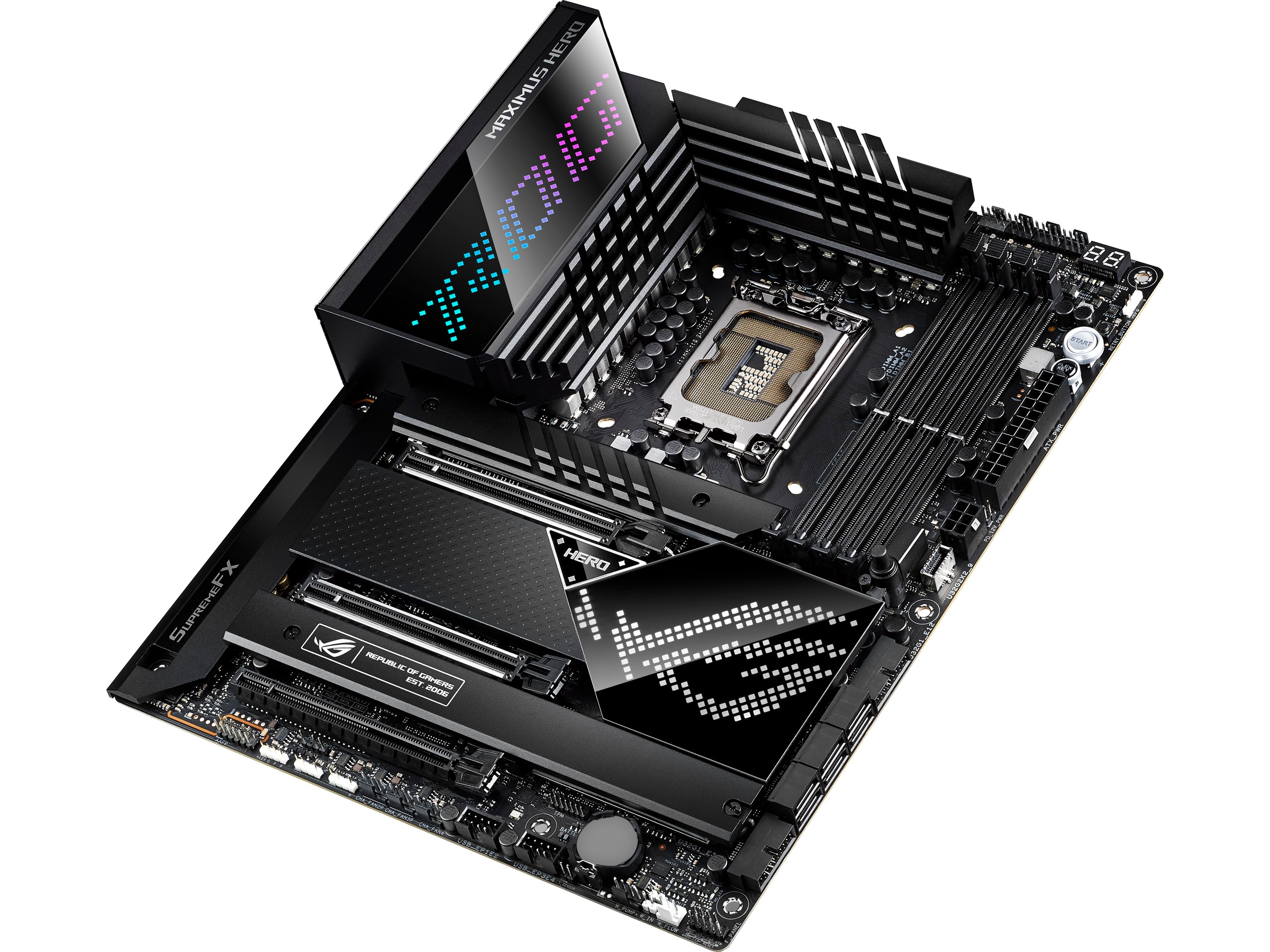

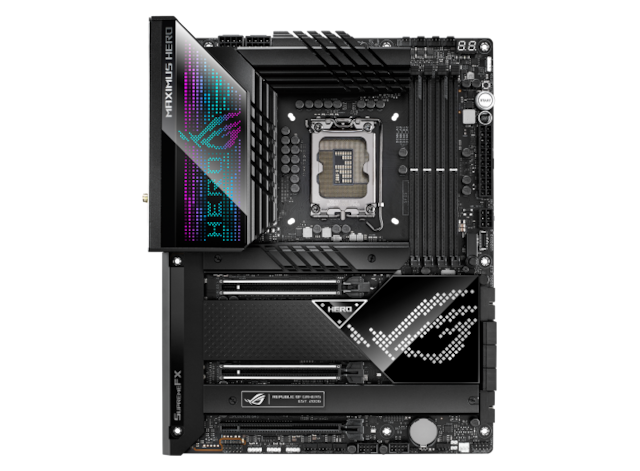

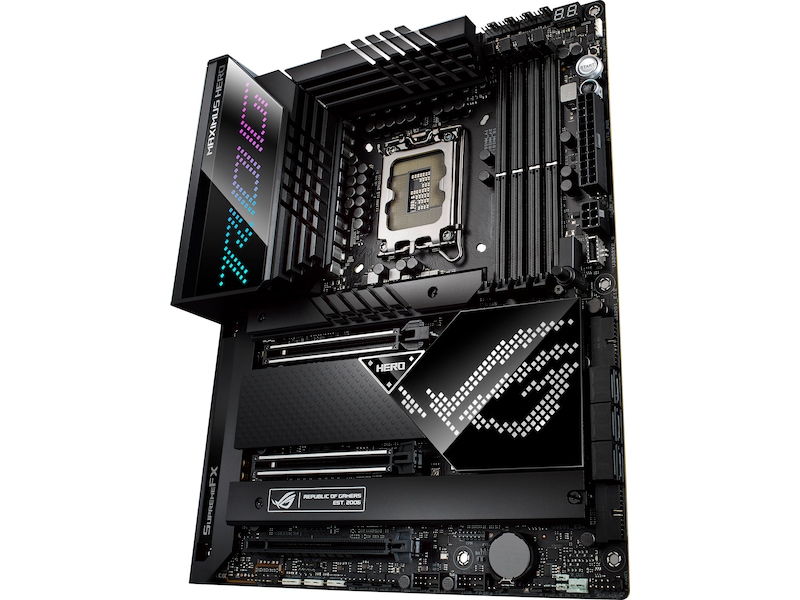

ASUS ROG MAXIMUS Z690 HERO, LGA1700 Motherboard

ROG Maximus Z690 Hero
The ROG Maximus Z690 Hero is a quintessential strand of the Republic of Gamers DNA, replete with high-octane components to satisfy users who seek an introduction to the enthusiast-grade Maximus line. Its arsenal of cooling, power delivery and connectivity stands ready to handle whatever the latest 12th Gen Intel® Core™ processors throw at it. And with its new animated Polymo lighting display on the I/O cover that dazzles with vibrant RGB logos and patterns, the ROG Maximus Z690 Hero has the looks to match its leverage.

PERFORMANCE - With tailored power delivery and support for the latest high-performance memory, ROG Maximus Z690 Hero easily handles the demands of Intel Alder Lake-S processors. It features an intelligent VRM design that’s rated for 90 amps, plus carefully selected components and memory layout optimizations to cater to enthusiasts looking to create a battle-ready rig with balanced performance.

COOLING - Top-level PC performance demands exceptional cooling. The ROG Maximus Z690 Hero is armed with robust VRM and chipset heatsinks that provide the perfect balance of mass and surface area for heat dissipation. Load up with an AIO or custom cooling loop paired with your choice of fans to keep thermals under complete control.

CONNECTIVITY - The latest connectivity solutions ― WiFi 6E, PCIe® 5.0 and two Thunderbolt™ 4 USB Type-C® ports ― empower supersmooth networking and blisteringly fast file transfers. And for enthusiasts looking for high-fidelity audio, the SupremeFX ALC4082 codec takes gaming immersion to a whole new level while also saving a PCIe slot.

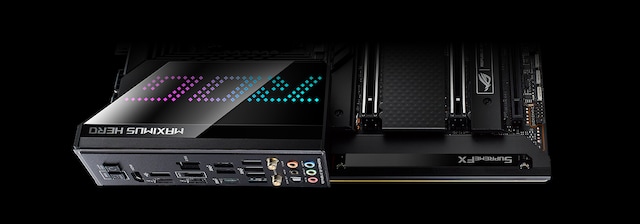

PERSONALIZATION - In addition to elite performance, ROG Maximus Z690 Hero introduces the new Polymo Lighting display, gracing the I/O cover with an eye-catching microstructural array of light and color. This intricate design features two RGB patterns, empowering builders to show off a luminous RGB style that they won’t see anywhere else.

• Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, triple M.2 heatsinks and two M.2 backplates, plus ROG Water-Cooling Zone and ROG Hyper M.2 card with heatsinks.
• High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGaurd.
• Fastest Gaming Connectivity: PCIe® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector, dual Thunderbolt™ 4 (USB Type-C® ports).
• Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for pinpoint positioning and dynamics
• Unmatched Personalization: I/O cover with Polymo Lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Hyper M.2 card and ROG Graphics Card Holder
• Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Generelt
Modell	ROG MAXIMUS Z690 HERO
Produktserie	ASUS
Garanti (måneder)	36
EAN	4711081455493

Hovedkort
Produktformfaktor	ATX
Brikkesett type	Intel Z690
Prosessorsokkel	LGA1700-sokkel
Støttet RAM (registrert eller bufret)	Ikke-bufret
RAM-spor	4 DIMM-spor
Støttet RAM-teknologi	DDR5 SDRAM
Støttet RAM-integritetskontroll	Ikke-ECC
Strømkontakter	24-pin hovedstrømforsyningskontakt, 6-pins ATX12V-kontakt, 2 x 8-pins ATX12 V-kontakter
Støttet RAM-hastighet	5600 MHz (O.C.), 6000 MHz (O.C.), 5400 MHz (O.C.), 5800 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz (O.C.)

Hovedkortegenskaper
BIOS Type	AMI
BIOS-egenskaper	BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Maskinvarefunksjoner	Intel Turbo Boost Technology 2.0, Armoury Crate, Q-Slot, ASUS EZ DIY, ASUS DIGI+ Power Control, ASUS SafeSlot, FlexKey-knapp, Sonic Studio III, ASUS ROG Extreme OC, ASUS HYDRANODE, Gold Plated Audio Hardware, ASUS TPU (TurboV Processing Unit), M.2 Q-Latch, ASUS Extreme Engine Digi+, GameFirst VI, ASUS Fan Xpert 4, Q-LED, Clear CMOS Button, Lydjakkpåvisningsteknologi, SupremeFX Shielding-teknologi, Intel Turbo Boost Max Technology 3.0, ASUS EPU (Energy Processing Unit), Formontert I/O-skjerm, SafeDIMM, Q-DIMM, LANGuard, ASUS ProCool II, ASUS Aura Sync, ESS 9018 SABRE HiFi DAC, ASUS Q-Connector, Sonic Radar III, Jakk-retasking, ASUS Q-Design
Sov/Våkne	Wake on LAN (WOL), Våkne ved PME

Grensesnitt
RAID-funksjoner	Intel Rapid Storage Technology
USB / FireWire-portskonfigurasjon (headere)	1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire-portskonfigurasjon (aktiv)	2 x USB4 + 2 x USB-C Gen 2 + 6 x USB 3.2 Gen 2 + 2 x USB 2.0
Lagerporter	6 x SATA-600 (RAID), 5 x M.2
Lager	Hyper M.2 socket, M.2-sokkel, Serial ATA-600 (RAID)
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C Gen2, USB-C Gen 2x2

RAM
Egenskaper	Dobbeltkanalsminnearkitektur

Videoutgang
Type	Grafikkadapter (CPU kreves)

Lydutgang
Type	Lydkort
Lyd	Høydefinisjonslyd (8-kanals)
Audio Codec	SupremeFX (ALC4082)
Tilpassede standarder	DTS Sound Unbound, High Definition Audio

Kabeldetaljer
Medfølgende kabler	4 x Seriell ATA-kabel

Diverse
Produkttype	Hovedkort
Inkludert tilbehør	1 x M.2 gummipakke, USB-stasjon, Forlengelseskabel for RGB (RGBW) LED-stripe, ROG-takkekort, Q-Connector, ROG viftemerker, ROG-nøkkelkjede, 2 x M.2-skruer, Grafikkortholder, ARGB LED stripeforlengelseskabel

Nettverkstilknytning
Nettverk	Bluetooth 5.2, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Datakjedeprotokoll	Bluetooth 5.2, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11g, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b

Utvidelsesspor
Utvidelsesspor	2 x PCIe 5.0 x16 (dobbelt x8-modus, enkeltkort: x16-modus), 1 x CPU, 1 x PCIe 4.0 x16 (x4-modus), 4 x 288-pins DIMM

Lagergrensesnitt
Lagergrensesnitt	PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5

Grensesnitt medfølger

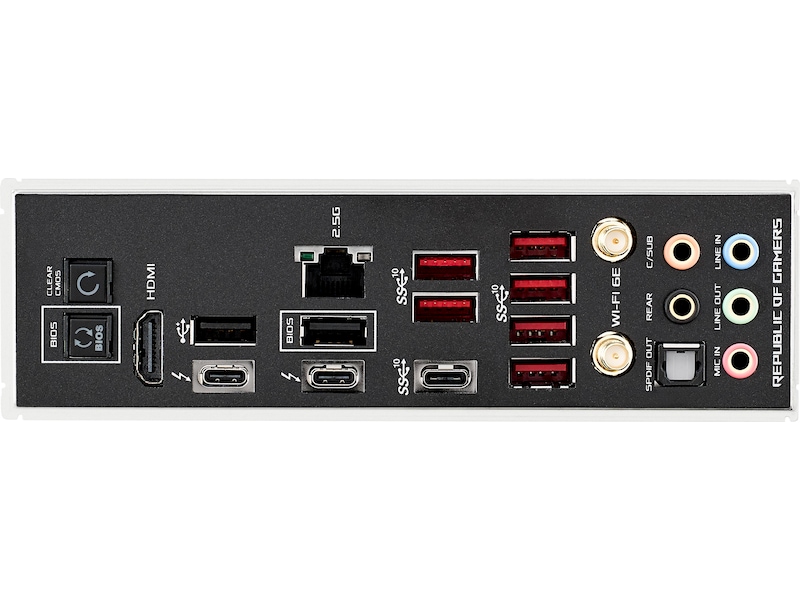

Grensesnitt	1 x USB-C Gen2, 2 x USB 2.0, 1 x lydutlinje (bakre) - minijakk, 2 x Thunderbolt 4/DisplayPort/USB4, 1 x lydinnlinje - minijakk, 1 x lydutlinje - minijakk, 1 x TOSLINK, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 6 x USB 3.2 Gen 2, 2 x Thunderbolt 4/USB4, 1 x mikrofon - minijakk, 1 x HDMI

Interne overflater
Interne overflater	1 x lyd - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x USB-C Gen 2x2 - header

Programvare
Inkludert programvare	AIDA64 Extreme (1-års lisens), Sonic Studio Virtual Mixer, BullGuard Internet Security (1-årslisens), ASUS AI Suite III, MemTest86, ASUS Turbo App, Drivers & Utilities, ROG CPU-Z, ASUS AURA Creator, WinRAR
