Denne varen finnes ikke lenger i vårt sortiment, men kontakt oss gjerne på 33 00 51 50 eller salg@komplettbedrift.no så hjelper vi deg finne et alternativt produkt til dette.
Varenummer: 1198165 / Produktnr.: 90MB1A90-M0EAY0

Flere bilder av

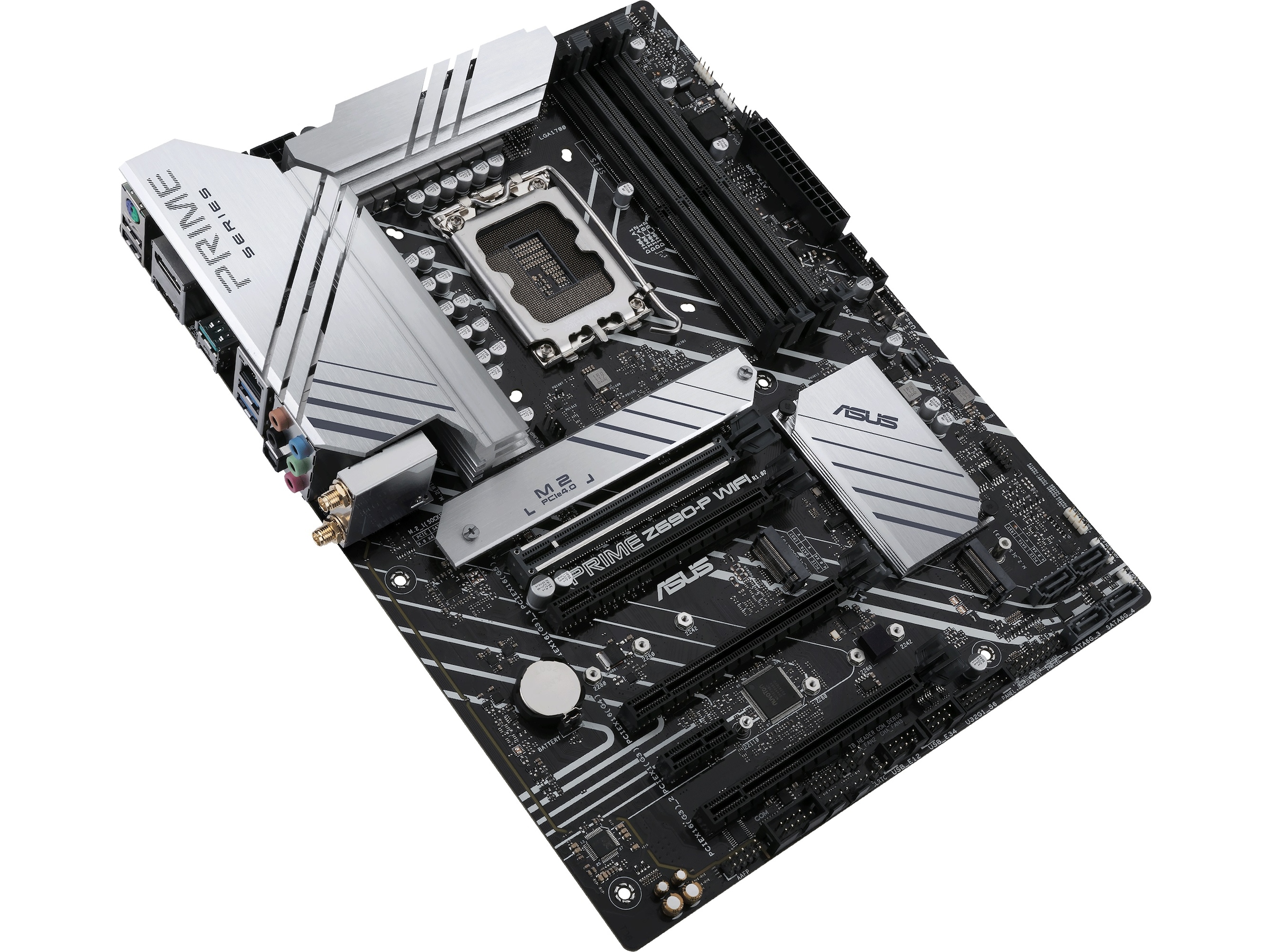

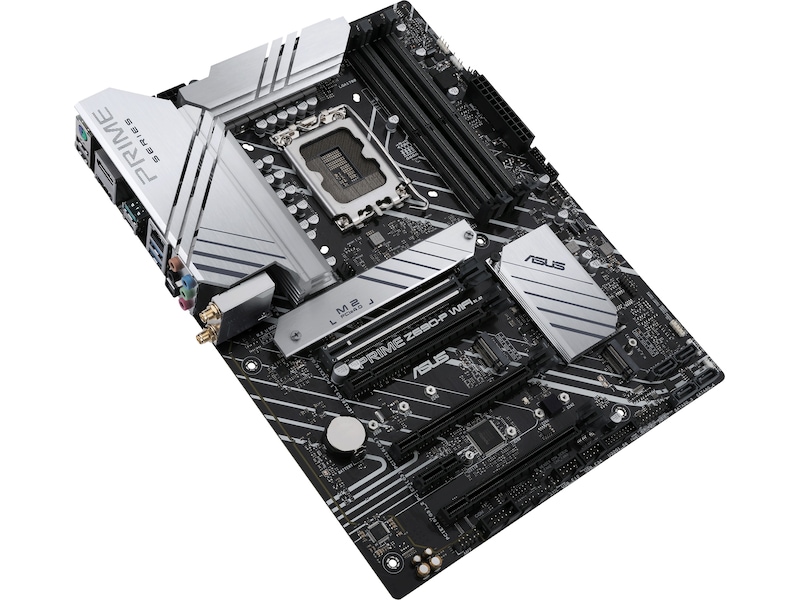

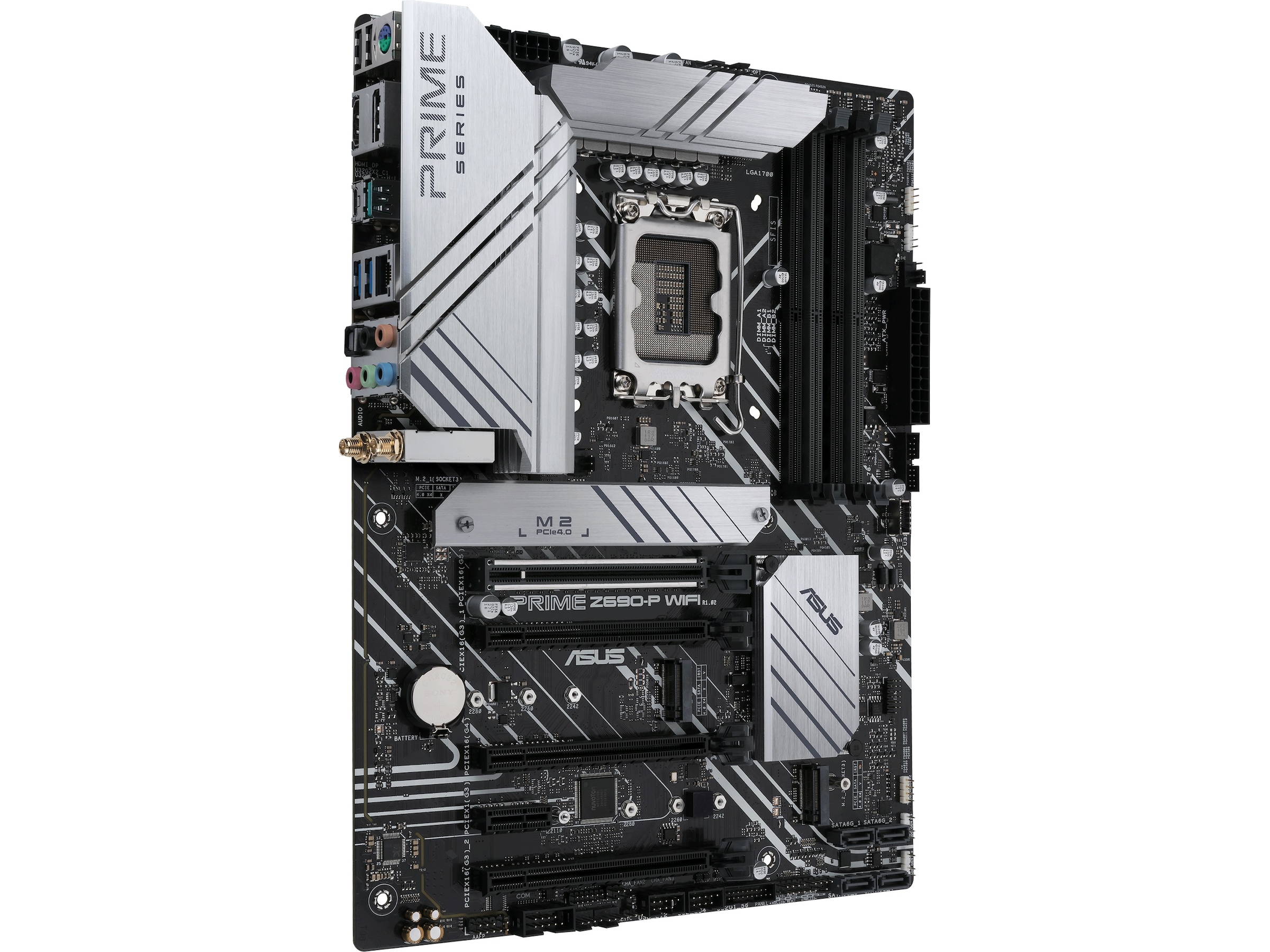

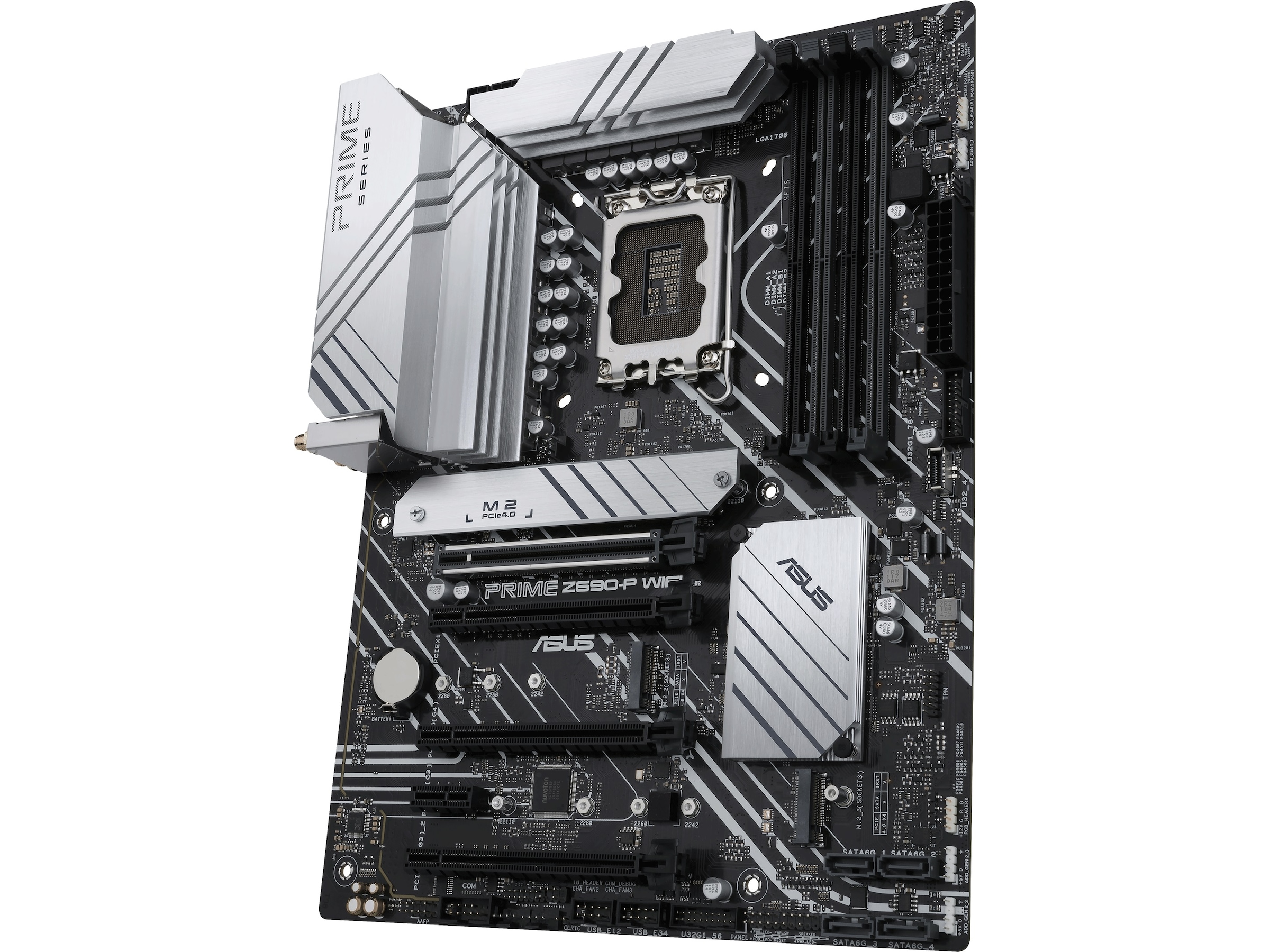

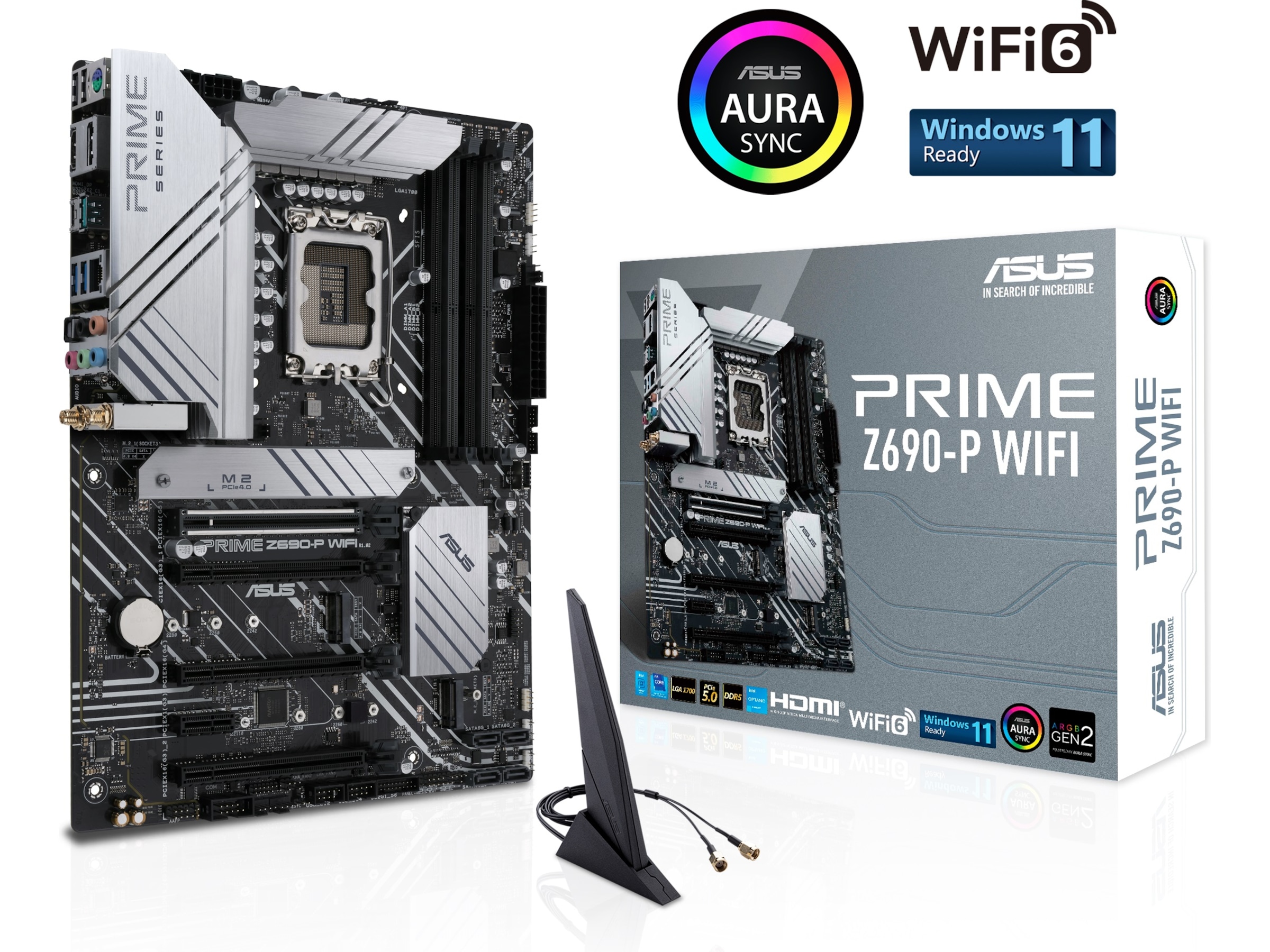

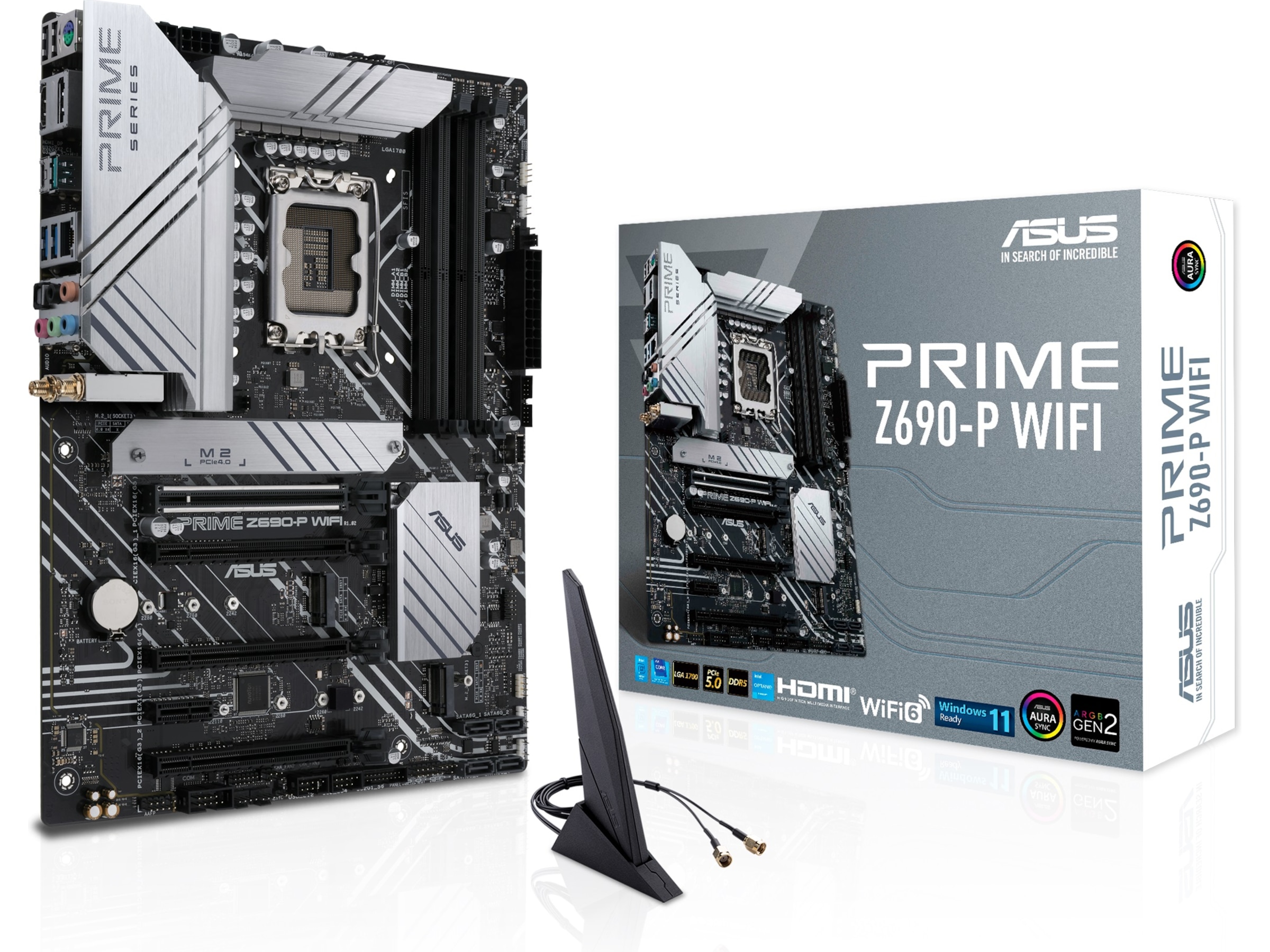

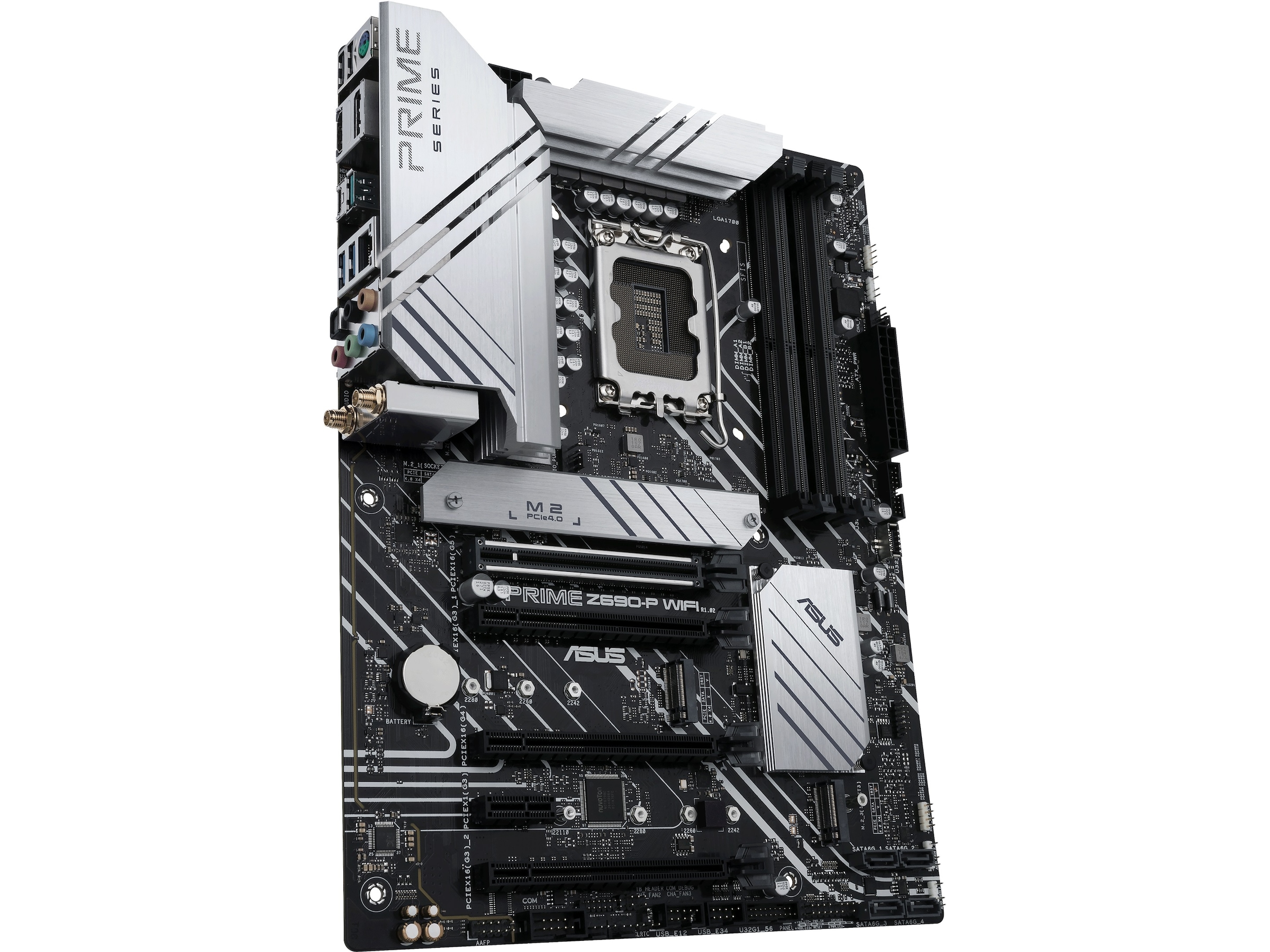

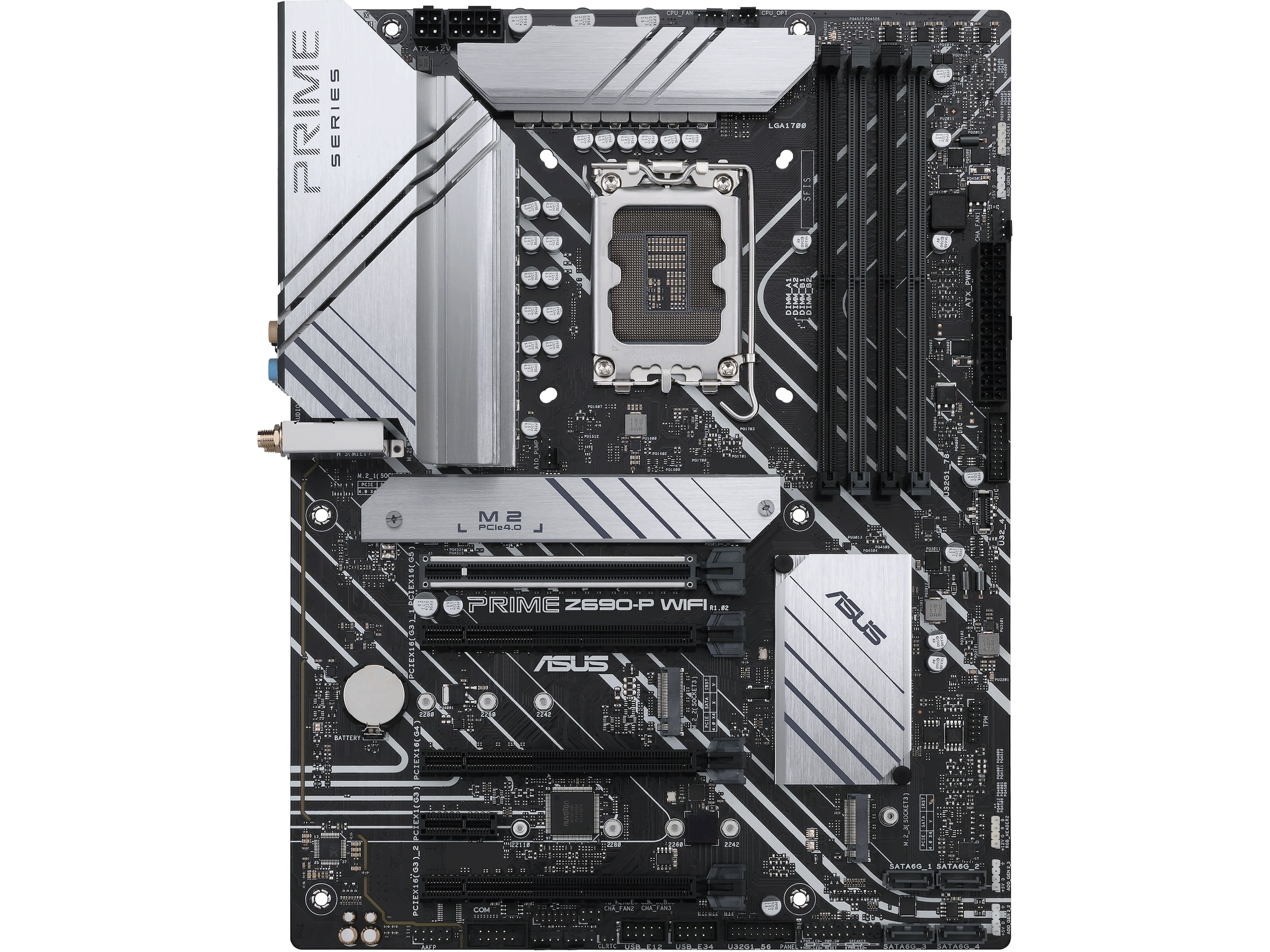

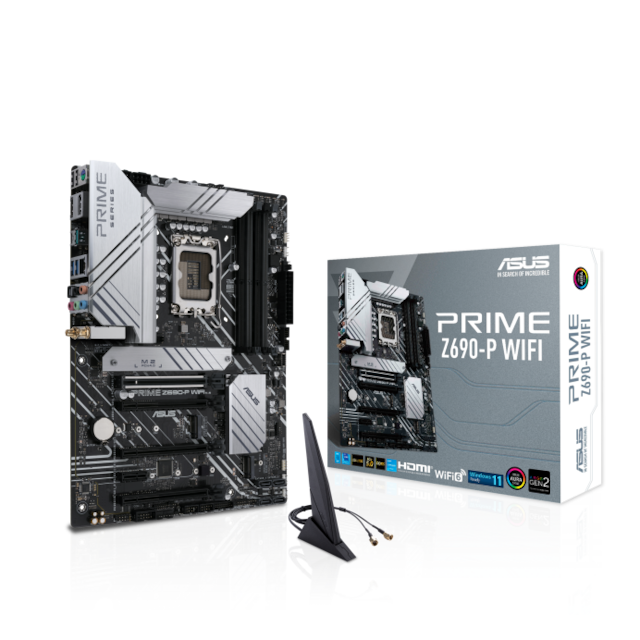

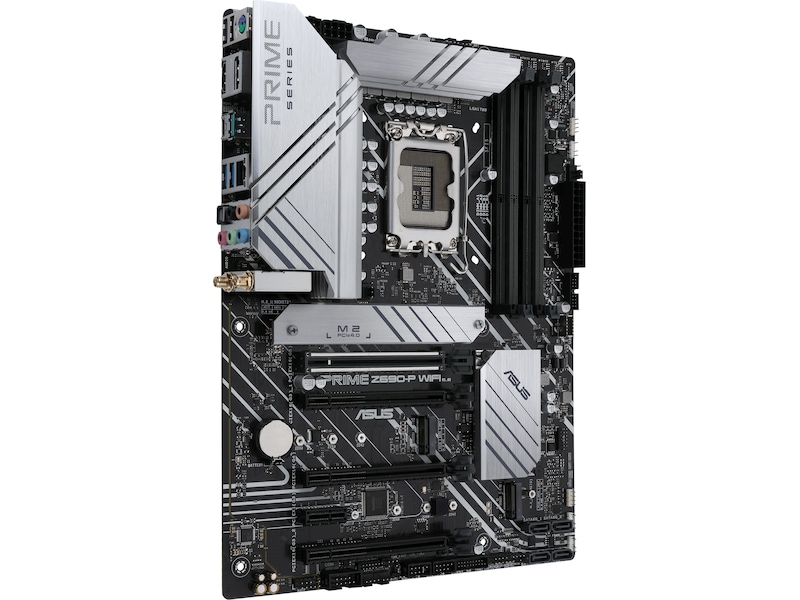

ASUS PRIME Z690-P WIFI, LGA1700 Motherboard

PRIME SERIES
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-P WIFI offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

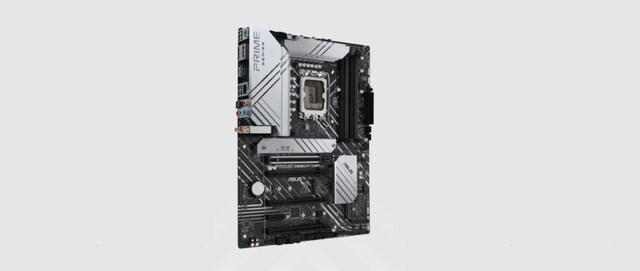

DDR5 Performance Enhancement
Prime Z690-P WIFI enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-P WIFI leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

For users new to memory overclocking, Prime Z690-P WIFI includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

• Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
• Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Next-gen connectivity: DDR5, PCIe® 5.0, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
Generelt
Produktserie ASUS
Modell PRIME Z690-P WIFI
Garanti (måneder) 36
EAN 4711081469612
Hovedkort
Brikkesett type Intel Z690
Produktformfaktor ATX
Prosessorsokkel LGA1700-sokkel
Støttet RAM-integritetskontroll Ikke-ECC
RAM-spor 4 DIMM-spor
Merknader om kompatible prosessorer Støtter 12.-generasjons Intel Core / Pentium Gold / Celeron
Støttet RAM (registrert eller bufret) Ikke-bufret
Støttet RAM-teknologi DDR5 SDRAM
Strømkontakter 24-pin hovedstrømforsyningskontakt, 4-pin ATX12V-kontakt, 8-pin ATX12V-kontakt
Støttet RAM-hastighet 5000 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz (O.C.), 4800 MHz, 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.)
Hovedkortegenskaper
BIOS Type AMI
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3
Maskinvarefunksjoner Armoury Crate, ASUS ProCool, ASUS EZ DIY, M.2-kjølelegeme, ASUS Q-Design, ASUS OptiMem II, Q-Slot, ASUS DIGI+ VRM, 14+1 DrMOS-strømtrinn, ASUS Fan Xpert 4, ASUS 5X Protection III, Intel Turbo Boost Max Technology 3.0, ASUS SafeSlot, ASUS Stainless Steel Back I/O, Intel Optane Memory Ready, ASUS Aura Sync, LANGuard, ASUS Overvoltage Protection, Preboot eXecution Environment (PXE), Intel Turbo Boost Technology 2.0, ASUS TurboV EVO, Q-LED Core, ASUS EPU (Energy Processing Unit), CrashFree BIOS 3, Q-DIMM
Sov/Våkne Wake on LAN (WOL), Våkne ved PME
Grensesnitt
USB / FireWire-portskonfigurasjon (headere) 1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
RAID-funksjoner Intel Rapid Storage Technology
Lagerporter 4 x SATA-600 (RAID), 3 x M.2
USB / FireWire-portskonfigurasjon (aktiv) 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen 2x2, USB-C Gen1
Lager M.2-sokkel, Serial ATA-600 (RAID)
Videoutgang
Type Grafikkadapter (CPU kreves)
Lydutgang
Type Lydkort
Tilpassede standarder High Definition Audio
Lyd Høydefinisjonslyd (8-kanals)
Kabeldetaljer
Medfølgende kabler 2 x Seriell ATA-kabel
Diverse
Produkttype Hovedkort

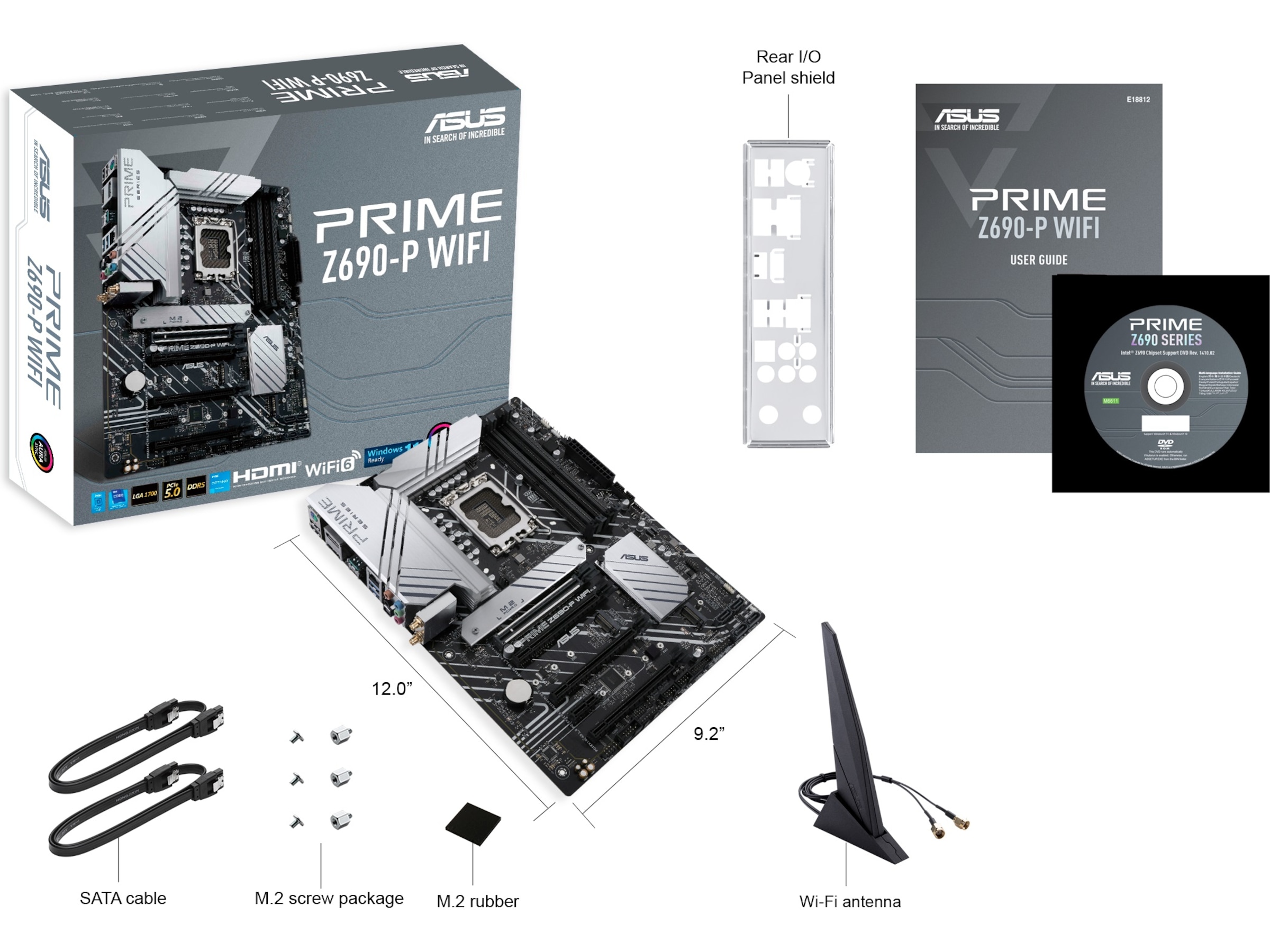

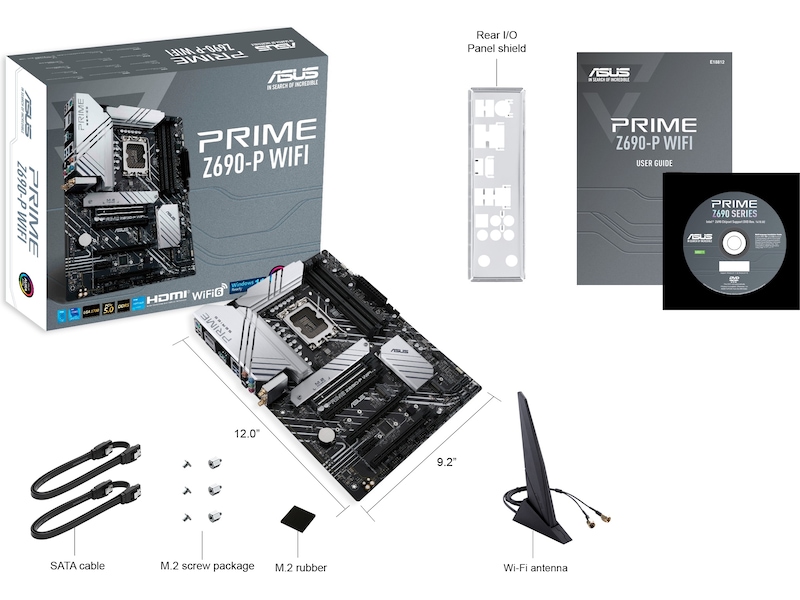

Inkludert tilbehør I/O-bakplate, 2 x M.2-skruer, 1 x M.2 gummipakke
RAM
Egenskaper Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)
Nettverkstilknytning
Datakjedeprotokoll IEEE 802.11b, Bluetooth 5.2, IEEE 802.11ac, IEEE 802.11n, 2.5 Gigabit Ethernet, IEEE 802.11g, 802.11ax, IEEE 802.11a
Nettverk 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Utvidelsesspor
Utvidelsesspor 2 x PCIe 3.0 x16 (x4-modus), 4 x 288-pins DIMM, 1 x CPU, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4-modus), 1 x PCIe 3.0 x1
Lagergrensesnitt
Lagergrensesnitt SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
Grensesnitt medfølger

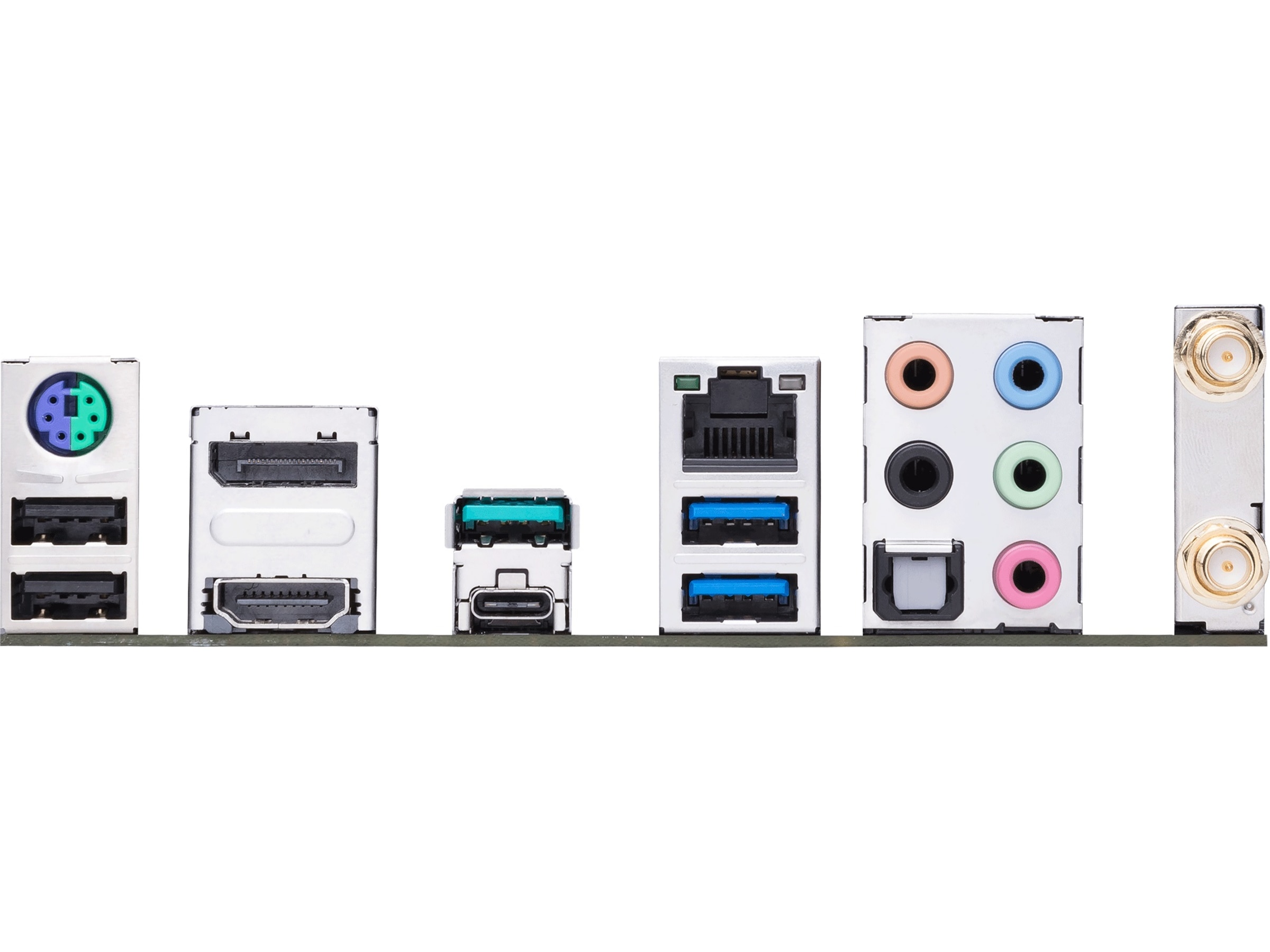

Grensesnitt 2 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 1 x USB-C Gen2x2, 1 x HDMI, 1 x PS/2-tastatur / -mus, 1 x lydinnlinje - minijakk, 1 x LAN (2.5Gigabit Ethernet), 1 x lydutlinje - minijakk, 1 x lydutlinje (bakre) - minijakk, 1 x DisplayPort, 1 x mikrofon - minijakk, 1 x USB 3.2 Gen 2, 1 x TOSLINK
Interne overflater
Interne overflater 1 x seriell - header, 1 x USB-C Gen 1 - header, 1 x lyd - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header, 4 x USB 2.0 - header, 1 x Thunderbolt - header
Programvare
Inkludert programvare ASUS CPU-Z, Drivers & Utilities, ASUS AI Suite III, WinRAR, ASUS TurboV EVO Utility, Norton AntiVirus (Trial)
