ASUS ProArt B650-Creator Hovedkort

AM5, AMD B650, ATX, DDR5, 2 x PCIe 4.0 x16 slots, 3 x M.2 slots

Varenummer: 1223277 / Produktnr.: 90MB1C40-M0EAY0

Flere bilder av ASUS ProArt B650-Creator Hovedkort

Før 2 533,-
2 014,- Eks. mva.
+ frakt fra 95,-
fra 68,- /mnd.
Leasing velges i kassen
Tilbudet gjelder fra 01/09 til 30/09 eller så langt lageret rekker.
Bestillingsvare. Bestilles ved ordre. Leveringstid 1-2 uker.

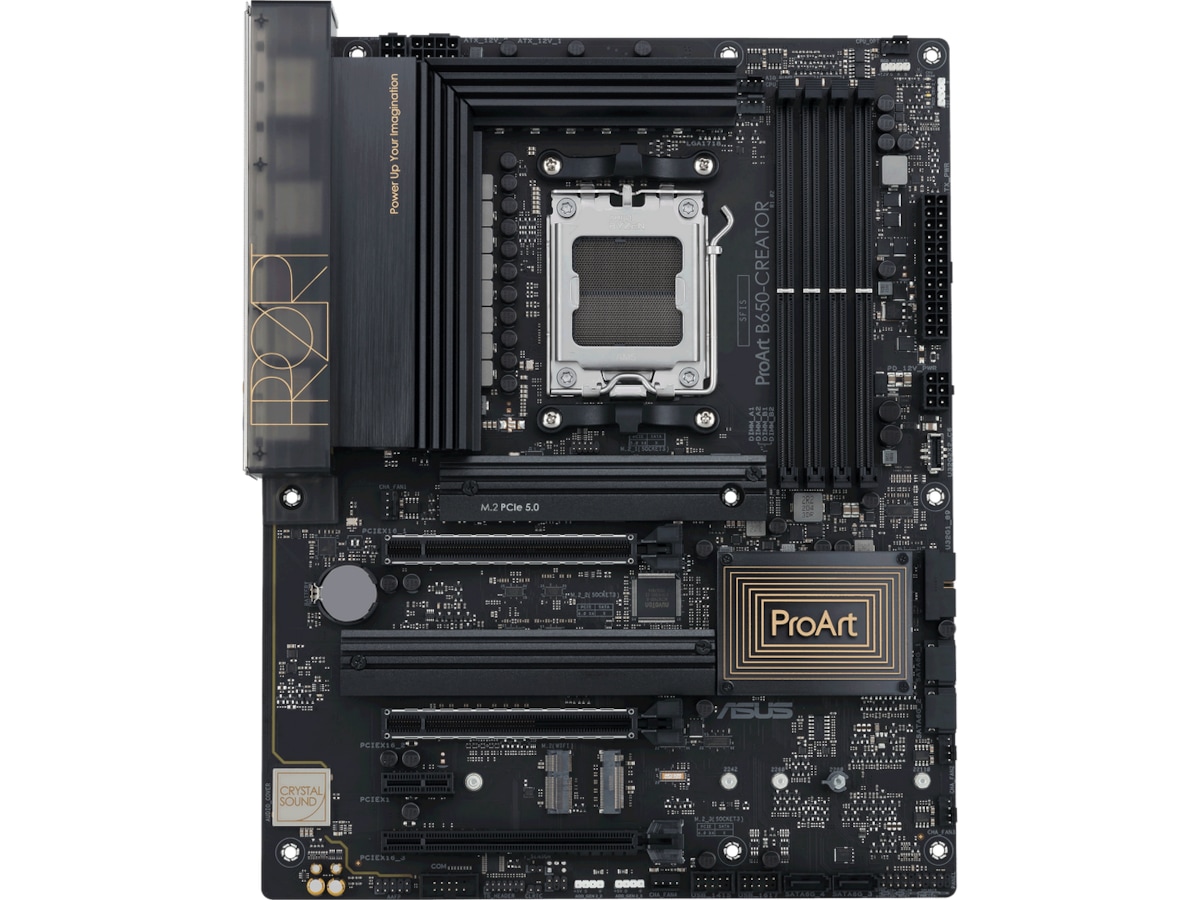

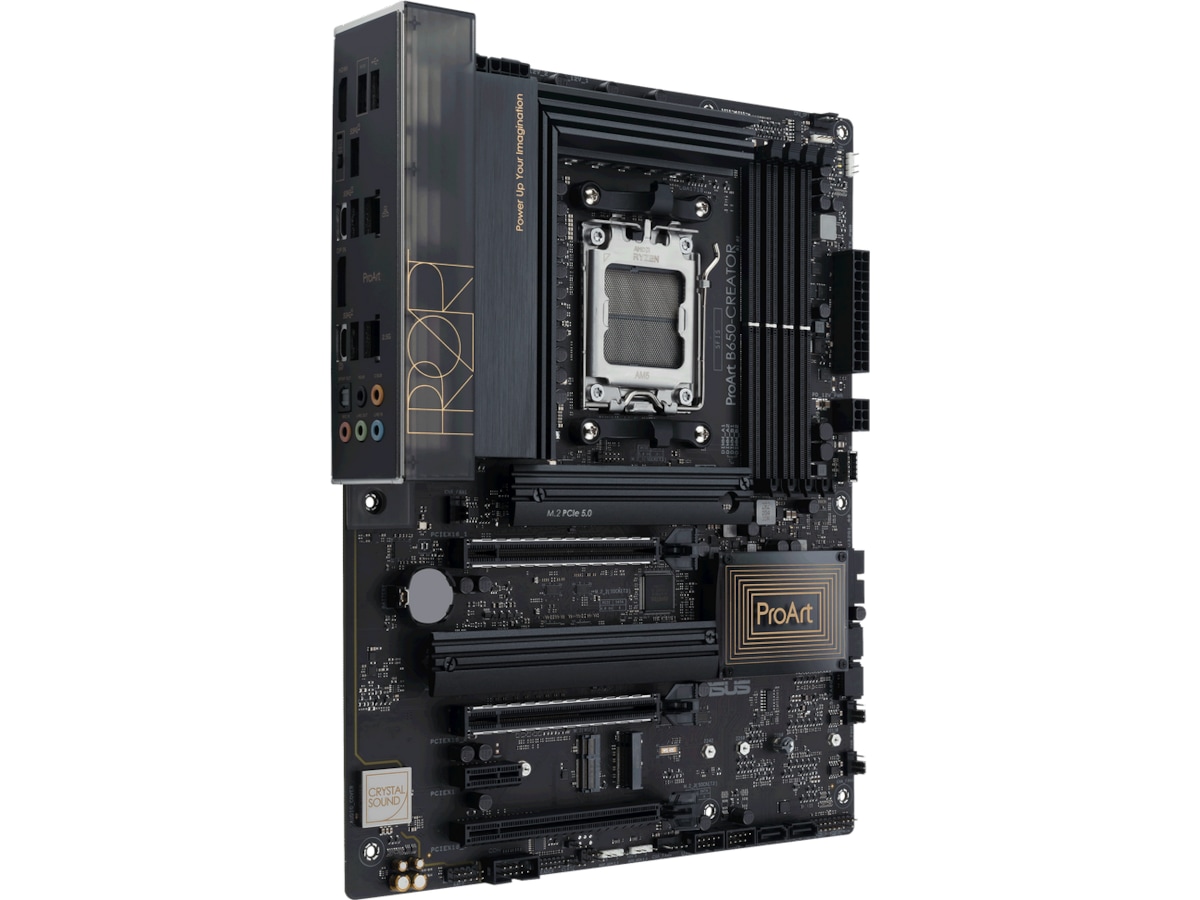

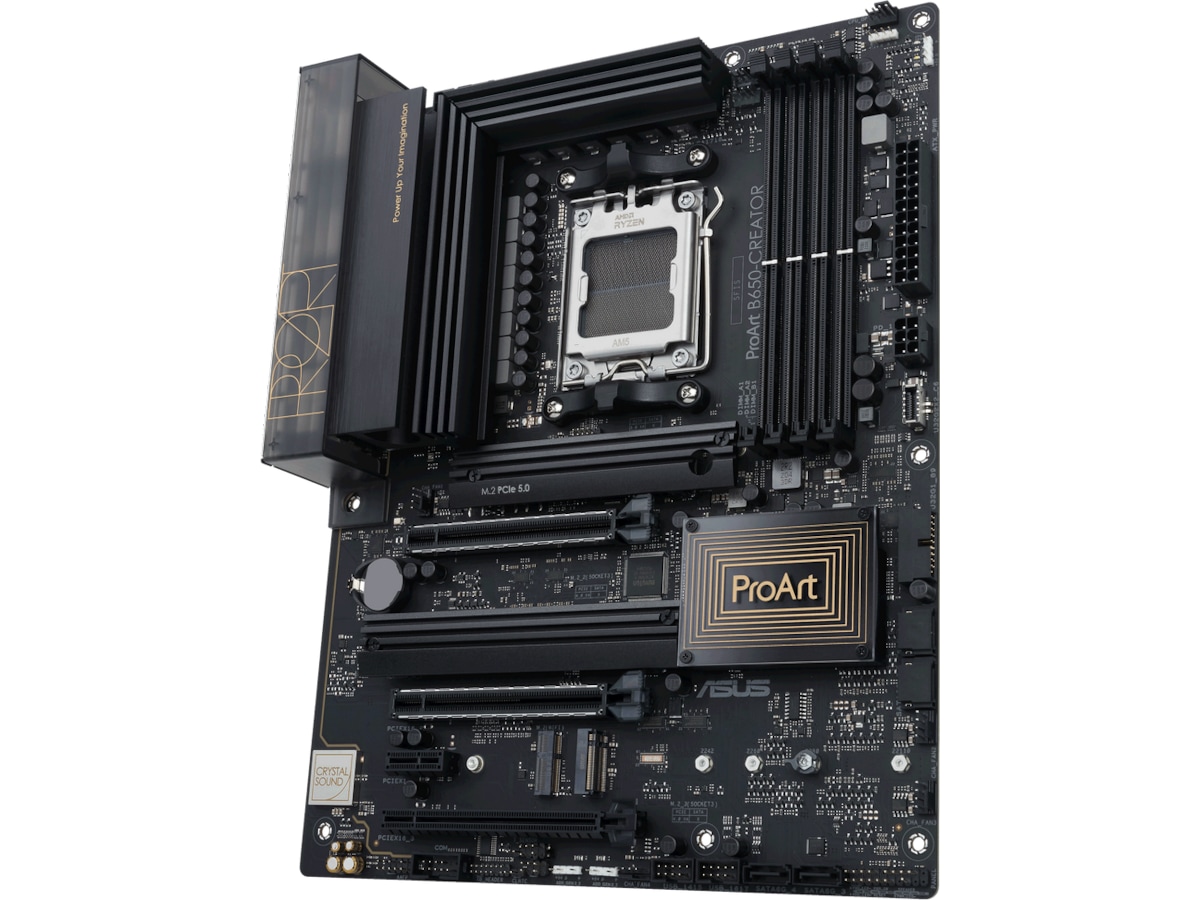

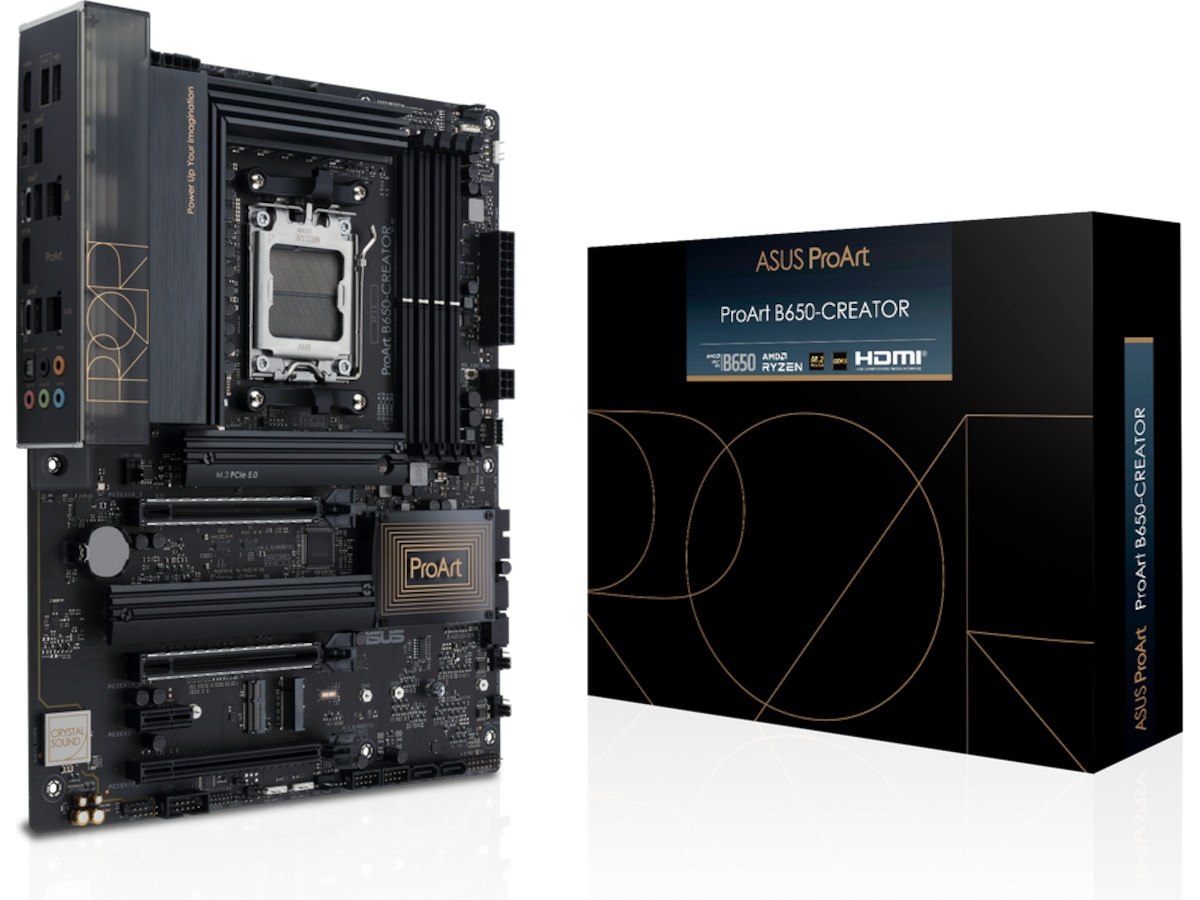

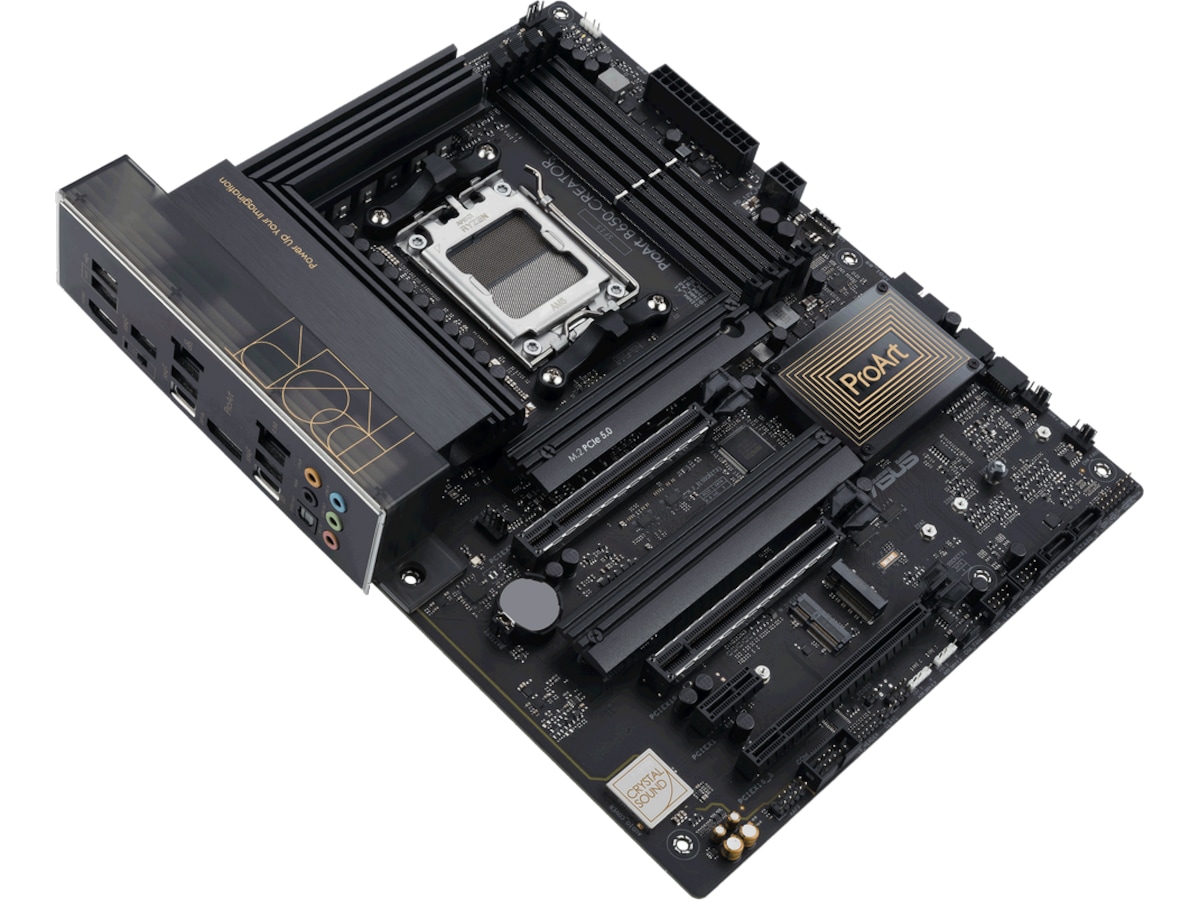

ASUS ProArt B650-Creator

ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.

USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

USB4® Support

ProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

*ASUS add-on card is sold separately.

Multi-card support

The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.

Dual Ethernet

2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.

*WiFi/BT modules are sold separately.

PCIe 5.0 M.2 Storage

The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

Garanti (måneder) 36
Produkttype Hovedkort - ATX
Brikkesett type AMD B650
Prosessorsokkel Socket AM5
Maks antall prosessorer 1
Kompatible prosessorer Ryzen (støtter Ryzen 7000 Series)
EAN 4711081988090
Støttet RAM
Maks størrelse 128 GB
Teknologi DDR5
Bussklokke 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz
Støttet RAM-integritetskontroll Ikke-ECC, ECC, on-die ECC
Registrert eller bufret Ikke-bufret
Egenskaper Dobbeltkanalsminnearkitektur, AMD EXPO-teknologi
Type HD-lyd (8-kanalers)
Tilpassede standarder High Definition Audio
Nettverksgrensesnitt Gigabit Ethernet, 2.5 Gigabit Ethernet
Ekspansjon / Tilkoplinger
Utvidelsesspor 1 x CPU
4 x 288-pins DIMM
2 x PCIe 4.0 x16 (dobbelt x8-modus; enkeltkort: x16-modus)
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 4.0 x1
2 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor)
1 x M.2 socket (2242/2260/2280 M.2 Key M-spor)
1 x M.2 socket (Key E)
Lagergrensesnitt SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
RAID-funksjoner AMD RAID Xpert2 Technology

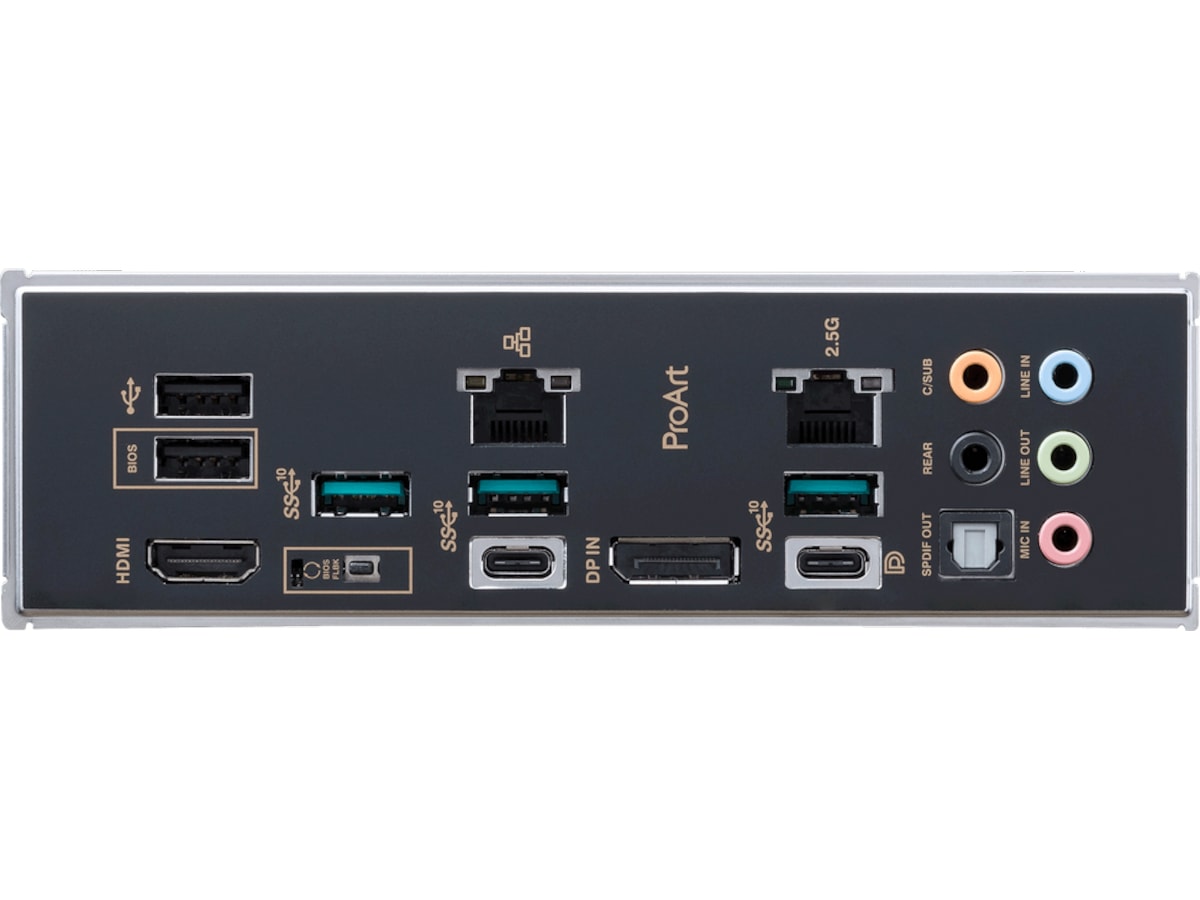

Grensesnitt 1 x HDMI
1 x USB-C Gen2/DisplayPort
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydinnlinje - minijakk
1 x LAN (2.5Gigabit Ethernet)
1 x LAN (Gigabit Ethernet)
2 x USB 2.0
1 x USB-C 3.2 Gen 2
3 x USB 3.2 Gen 2
1 x DisplayPort-inngang
1 x SPDIF-utgang
Interne overflater 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x seriell - header
1 x lyd - header
1 x Thunderbolt - header
Strømkontakter 4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt, 6-pinw PCI Express-strømkontakt
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3
Sov/Våkne Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner Jakk-retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, lydjakkpåvisningsteknologi, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overspenningsvern, ASUS SafeSlot, ASUS 5X Protection III, ASUS SafeDIMM, M.2-kjølelegeme, ASUS ProCool, formontert I/O-skjerm, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, M.2 Q-Latch, Quick Charge 4+, VRM-kjøledesign, BIOS FlashBack-knapp, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP), 60 A Power Stage

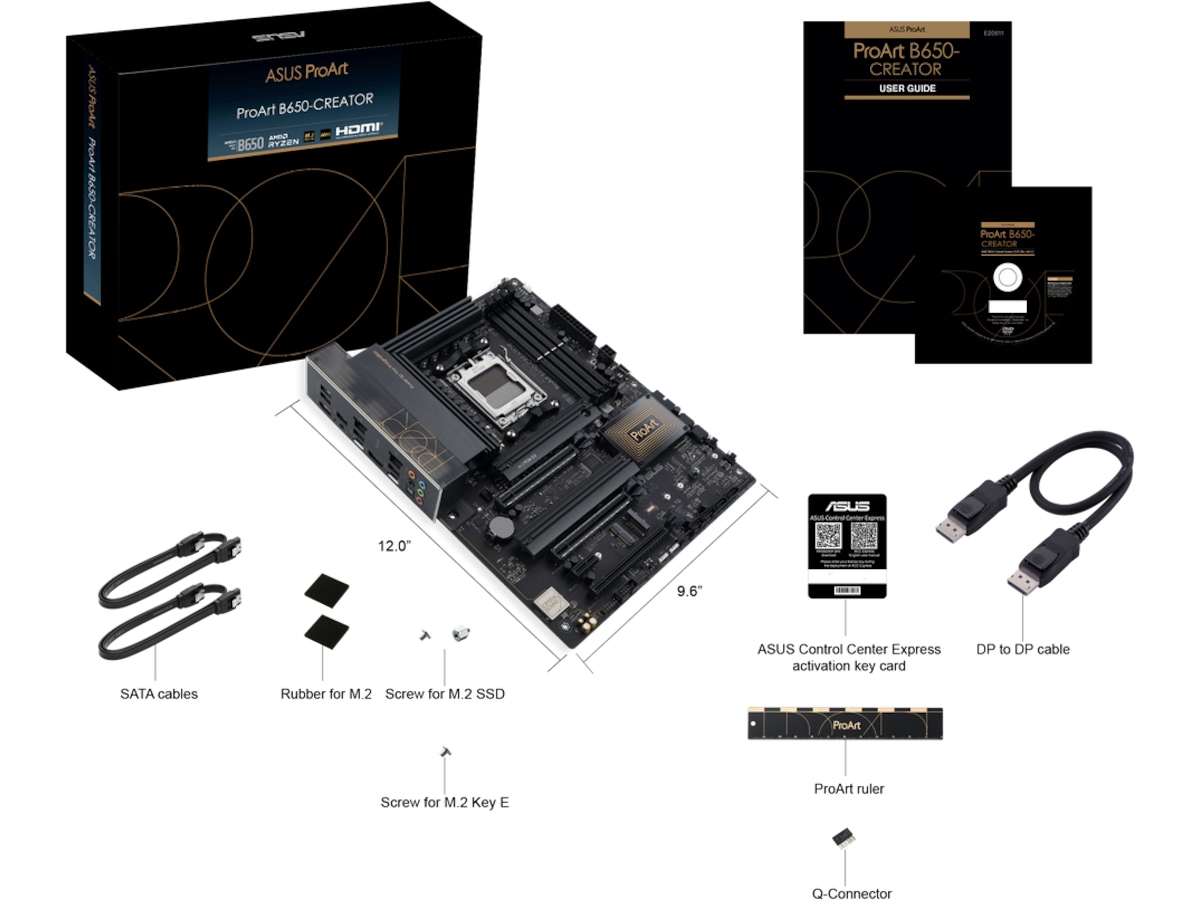

Tilleggsutstyr inkludert Q-Connector, 1 x M.2 gummipakke, ACC Express Activation Key Card, 2 x M.2-skruepakke
Medfølgende kabler 2 x Seriell ATA-kabel
1 x DisplayPort-kabel
Inkludert programvare ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS ProArt Creator Hub, Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Control Center Express, CreationFirst, Armoury Crate, ASUS Fan Xpert 4
Tilpassede standarder VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Bredde 30.5 cm
Dybde 24.4 cm
